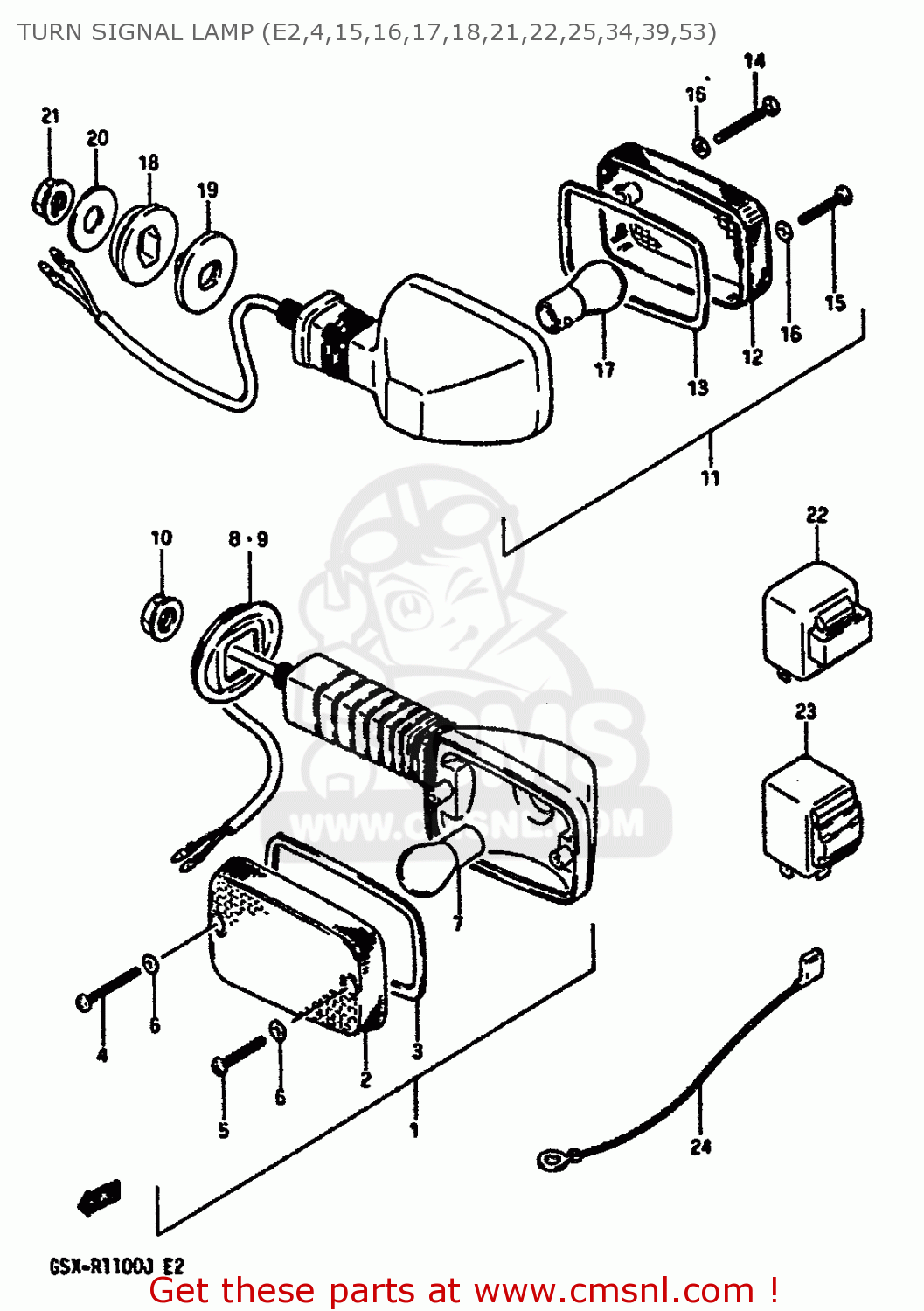

TURN SIGNAL LAMP (E2,4,15,16,17,18,21,22,25,34,39,53)

ref

part #

description

quantity

1-1

3560106B40
ref: 1-1
E2,E15,E16,E17

LAMP ASSY, FRONT TURN SIGNAL

€ 108.00

1-2

3560106B20
ref: 1-2
E4,E18,E21,E25,E34,E

LAMP ASSY,FR

€ 120.50

1-3

3560106B50
ref: 1-3
E22

LAMP ASSY, FRONT TURN SIGNAL

€ 127.50

2

3561202181
ref: 2

LENS,FR

€ 9.00

3

3561348700
ref: 3

GASKET (NAS)

€ 7.50

4

3562302180
ref: 4

SCREW,TURN SIG LENS FITTING

€ 2.00

5

0321104308
ref: 5

SCREW

€ 1.50

6

3562743C10
ref: 6

GASKET

€ 0.00

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8-1

3567427A30
ref: 8-1
E2,E15,E16,E17,E22

GROMMET,TURNSIGNAL LAMP,R

€ 8.50

8-2

3567427A20
ref: 8-2
E4,E18,E21,E25,E34,E

GROMMET, FRONT RH

€ 7.00

9-1

3568427A30
ref: 9-1
E2,E15,E16,E17,E22

GROMMET,TURNSIGNAL LAMP,L

€ 8.50

9-2

3568427A20
ref: 9-2
E4,E18,E21,E25,E34,E

GROMMET, FRONT LH

€ 7.00

10

0831626105
ref: 10

NUT

€ 3.50

11-1

3560306B20
ref: 11-1
E2,E4,E15,E17,E21,E2

LAMP ASSY,REAR TURN SIGNAL

€ 36.00

11-2

3560306B40
ref: 11-2
E16,E18,E39

LAMP ASSY,REAR TURN SIGNAL

€ 71.50

11-3

3560306B50
ref: 11-3
E22

LAMP ASSY,REAR TURN SIGNAL

€ 64.00

12

3565202181
ref: 12

LENS,RR

€ 8.50

13

3561348700
ref: 13

GASKET (NAS)

€ 7.50

14

3562302180
ref: 14

SCREW,TURN SIG LENS FITTING

€ 2.00

15

0321104308
ref: 15

SCREW

€ 1.50

16

3562743010
ref: 16

GASKET (NAS)

€ 2.00

17

0947112045
ref: 17

BULB(12V21W)

€ 5.00

18

3569206B00
ref: 18

CUSHION

€ 4.50

19

3569506B00
ref: 19

SPACER

€ 4.50

20

0916010078
ref: 20

WASHER (10.2X27X1.6)

€ 2.00

21

0831626105
ref: 21

NUT

€ 3.50

22

3861031310
ref: 22

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

23

3861045091
ref: 23
E2,E22

RELAY ASSY,TUR

€ 67.50

24

3685135010
ref: 24
E2,E22

LEAD WIRE

€ 6.00

all assemblies
