REAR SWINGING ARM

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

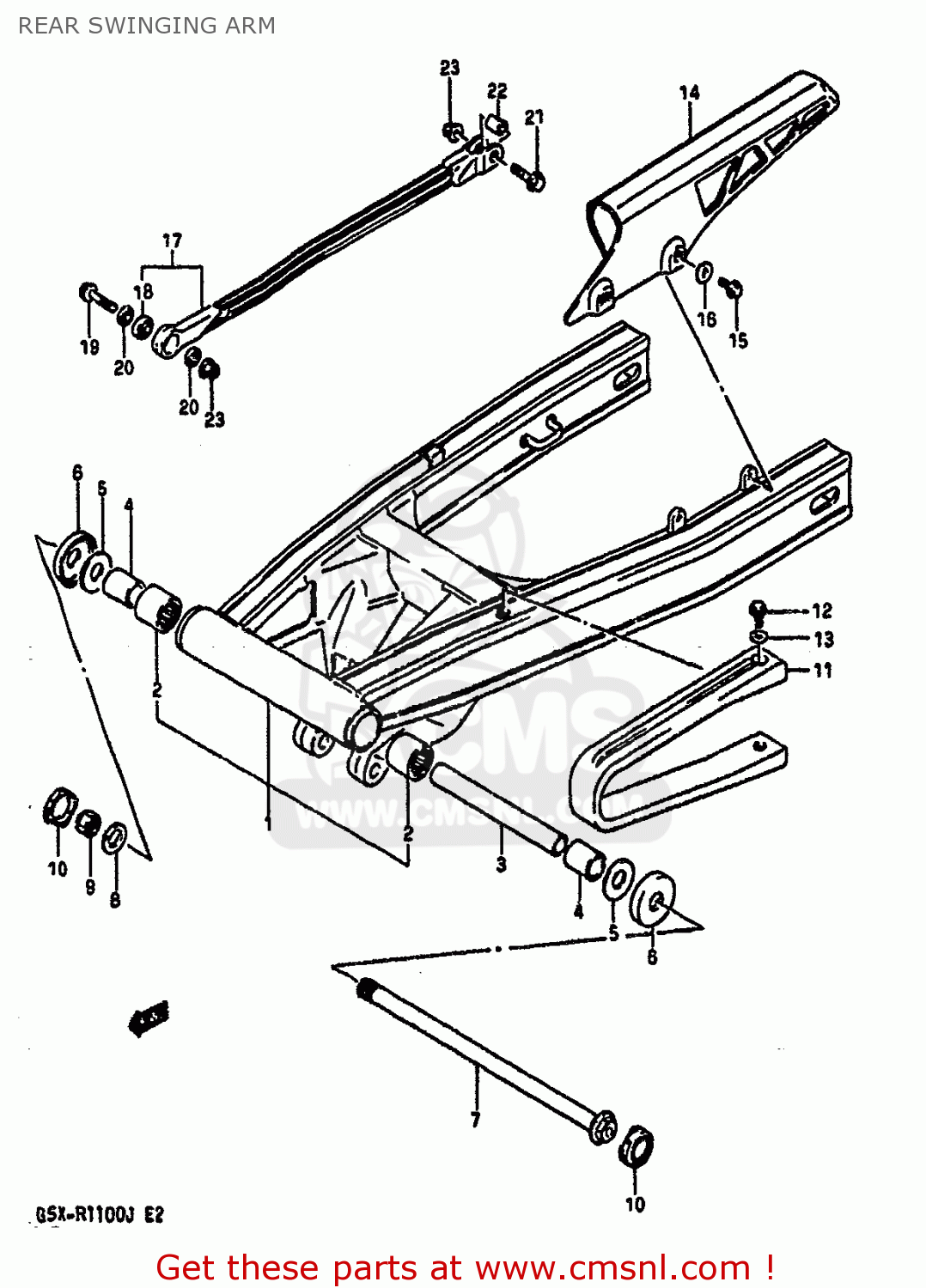

Rear swinging arm diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

REAR SWINGING ARM GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
REAR SWINGING ARM GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
REAR SWINGING ARM GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
6100006B00
ref: 1-1
MODEL G/H TO 61000-0
SWING ARM ASSEMBLY,REAR
€ 824.00
1-2
6100006B01
ref: 1-2
MODEL J
ARM,REAR SWING
€ 824.00
2
0926325024
ref: 2
BEARING(25X33X30)
0926325024
€ 31.50
3
6128206B00
ref: 3
SPACER,REAR SWING ARM PIVOT
€ 15.50
4
6125149000
ref: 4
SPACER,RR SWGARM PIVOT
6125149000
€ 17.50
5
0821116381
ref: 5
WASHER
0821116381
€ 2.50
6
6126249201
ref: 6
COVER,RR SWINGINGARM PIVOT
6126249201
€ 8.50
7
6121106B00
ref: 7
SHAFT,RR SWINGINGARM PIVOT
6121106B00
€ 55.00
8
0916014015
ref: 8
WASHER(14X27X3)
0916014015
€ 4.00
9
0915914013
ref: 9
NUT
0915914013
€ 8.50
10
6122243400
ref: 10
CAP,SWINGINGARM PIVOT
6122243400
€ 4.00
11
6127306B00
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
6127306B00
€ 40.50
12
0151706207
ref: 12
BOLT 6X20
€ 2.50
13
0916906032
ref: 13
WASHER
€ 2.50
14
6131027A01
ref: 14
CASE,CHAIN
6131027A01
€ 48.00
15
0151706105
ref: 15
BOLT
€ 2.50
16
0916906026
ref: 16
WASHER
0916906026
€ 2.00
17
6430006840
ref: 17
TORQUE LINK SET,REAR
6430006840
€ 139.00
18
6435240411
ref: 18
SPHERICAL BEARING,TORQUE
€ 69.50
19
0910308142
ref: 19
BOLT(8X35)
0910308142
€ 3.00
20
6433940410
ref: 20
6433940410
21
0910308142
ref: 21
BOLT(8X35)
0910308142
€ 3.00
22
6433620A00
ref: 22
SPACER,RR TORQUE LINK RR
6433620A00
€ 8.00
23
0831931087
ref: 23
NUT
0831931087
€ 2.50
