FUEL TANK (MODEL J)

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

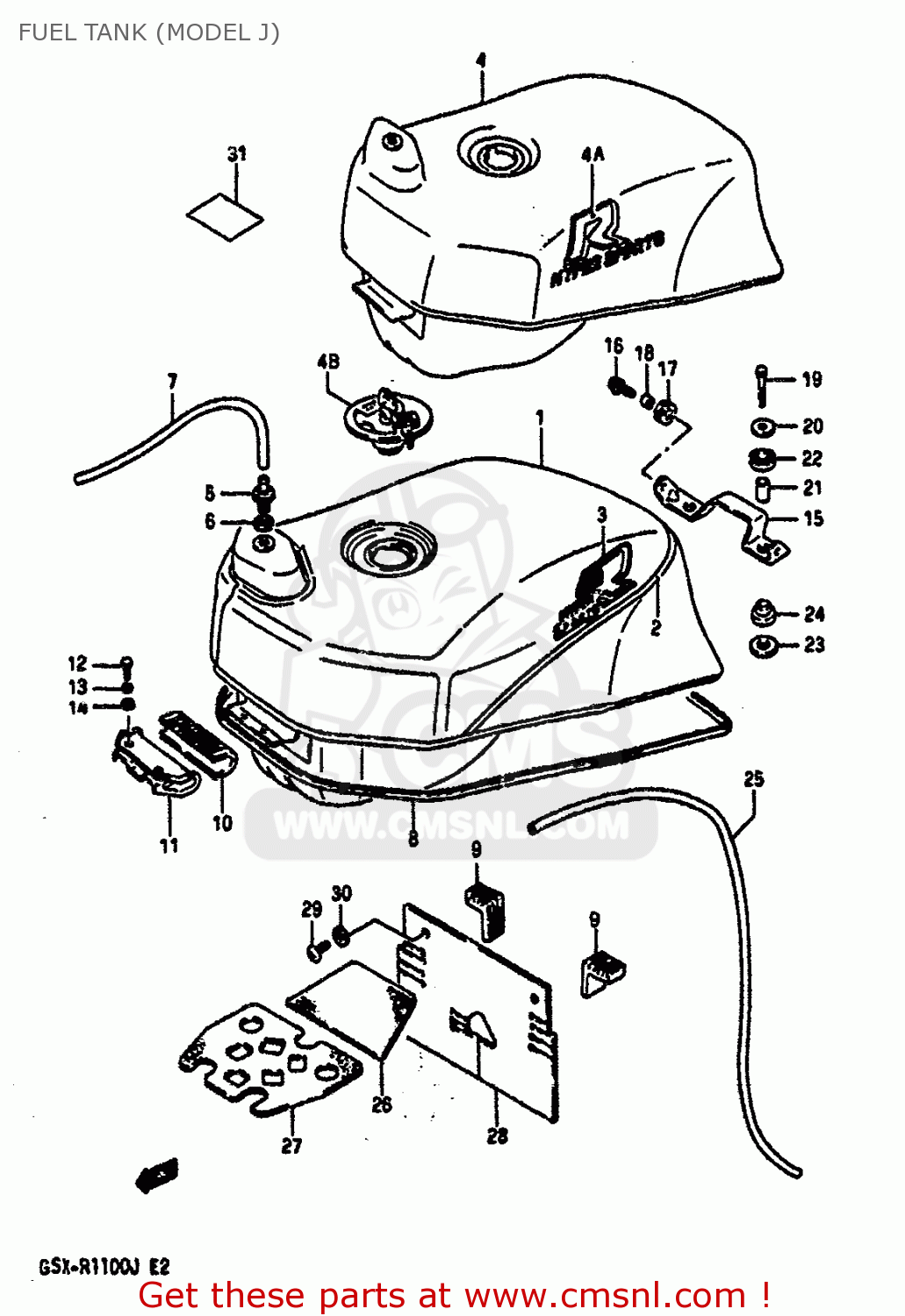

Fuel tank (model j) diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

FUEL TANK (MODEL J) GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL J) GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL J) GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4410006B709HD
ref: 1-1
TANK ASSEMBLY,FUEL
€ 807.00
1-2
4410006B809HD
ref: 1-2
E22
TANK ASSY,FUEL (BLACK/RED)
€ 807.00
1-3
4410006B709SR
ref: 1-3
TANK ASSEMBLY,FUEL
€ 807.00
1-4
4410006B809SR
ref: 1-4
E22
TANK ASSY,FUEL (WHITE/BLUE)
€ 807.00
2-1
6811506B0022P
ref: 2-1
FOR 9HD
TAPE,FUEL TANK
€ 60.00
2-2
6811506B0033N
ref: 2-2
FOR 9SR
TAPE,FUEL TANK
€ 0.00
3-1
6811106B002GK
ref: 3-1
FOR 9HD
EMBLEM,FUEL TANK
6811106B002GK
€ 18.00
3-2
6811106B002GS
ref: 3-2
FOR 9SR
EMBLEM,FUEL TANK
6811106B002GS
€ 18.00
4-1
4410027B2013Z
ref: 4-1
TANK,FUEL
4410027B2013Z
€ 807.00
4-2
4410027B3013Z
ref: 4-2
E22
TANK ASSY,FUEL (BLACK)
€ 807.00
4A
6811127B1039B
ref: 4A
FOR 13Z
EMBLEM (GOLD)
€ 13.00
4B
4420020A00KEY
ref: 4B
CAP SET,FUEL TANK
4420020A00KEY
€ 174.00
5
4424006B10
ref: 5
PLUG,FUEL TANK BREATHER
4424006B10
€ 36.00
6
0916812012
ref: 6
GASKET(12.5X20X2.5) (NAS)
0916812012
€ 2.00
7
0935250823890
ref: 7
HOSE
€ 13.00
8
6824127A00
ref: 8
MOLDING,FUEL TANK
6824127A00
€ 23.00
9
4454527A10
ref: 9
CUSHION,FUEL TANK SIDE
4454527A10
€ 4.00
10
4451127A10
ref: 10
CUSHION,FUEL TANK FR
4451127A10
€ 7.00
11
4452127A00
ref: 11
BRACKET,FUEL TANK FR
4452127A00
€ 16.00
12
0110706205
ref: 12
BOLT
0110706205
€ 2.00
13
0832121064
ref: 13
WASHER,LOCK
0832121064
€ 2.00
14
0832221064
ref: 14
WASHER
0832221064
€ 2.00
15
4521106B00
ref: 15
BRACKET,SEAT SUPPORT,FRONT
4521106B00
€ 5.00
16
0913806042
ref: 16
BOLT
€ 3.00
17
0932008007
ref: 17
CUSHION
0932008007
€ 4.00
18
0918006038
ref: 18
SPACER(6.1X9X7.5)
0918006038
€ 2.00
19
0110706356
ref: 19
BOLT ,6X35
€ 2.50
20
0916006072
ref: 20
WASHER (6.5X24X1.6)
0916006072
€ 2.00
21
0918006072
ref: 21
SPACER
0918006072
€ 2.00
22
0932014017
ref: 22
CUSHION
0932014017
€ 3.00
23
0916012004
ref: 23
WASHER (12.5X24X1.6)
0916012004
€ 2.00
24
0932010038
ref: 24
CUSHION
0932010038
€ 4.00
25
0935250823890
ref: 25
HOSE
€ 13.00
26
4419127A00
ref: 26
SHIELD,FUEL TANK HEAT
4419127A00
€ 15.50
27
4419227A00
ref: 27
SHIELD,FUEL TANK HEAT
4419227A00
€ 25.50
28
4419406B00
ref: 28
SHIELD,HEAT NO.1
€ 14.50
29
0214206207
ref: 29
SCREW
0214206207
€ 2.00
30
0916006007
ref: 30
WASHER
0916006007
€ 2.00
31
8693273060
ref: 31
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
29
0916012004
ref: 29
WASHER (12.5X24X1.6)
0916012004
€ 2.00
30
0932010038
ref: 30
CUSHION
0932010038
€ 4.00
31
0934305165
ref: 31
HOSE,FUEL
0934305165
€ 13.00
32
4419127A00
ref: 32
SHIELD,FUEL TANK HEAT
4419127A00
€ 15.50
33
4419227A00
ref: 33
SHIELD,FUEL TANK HEAT
4419227A00
€ 25.50
34
4419406B00
ref: 34
SHIELD,HEAT NO.1
€ 14.50
35
0214206207
ref: 35
SCREW
0214206207
€ 2.00
36
0916006007
ref: 36
WASHER
0916006007
€ 2.00
37
8693273060
ref: 37
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
