FRAME COVER (MODEL J)

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

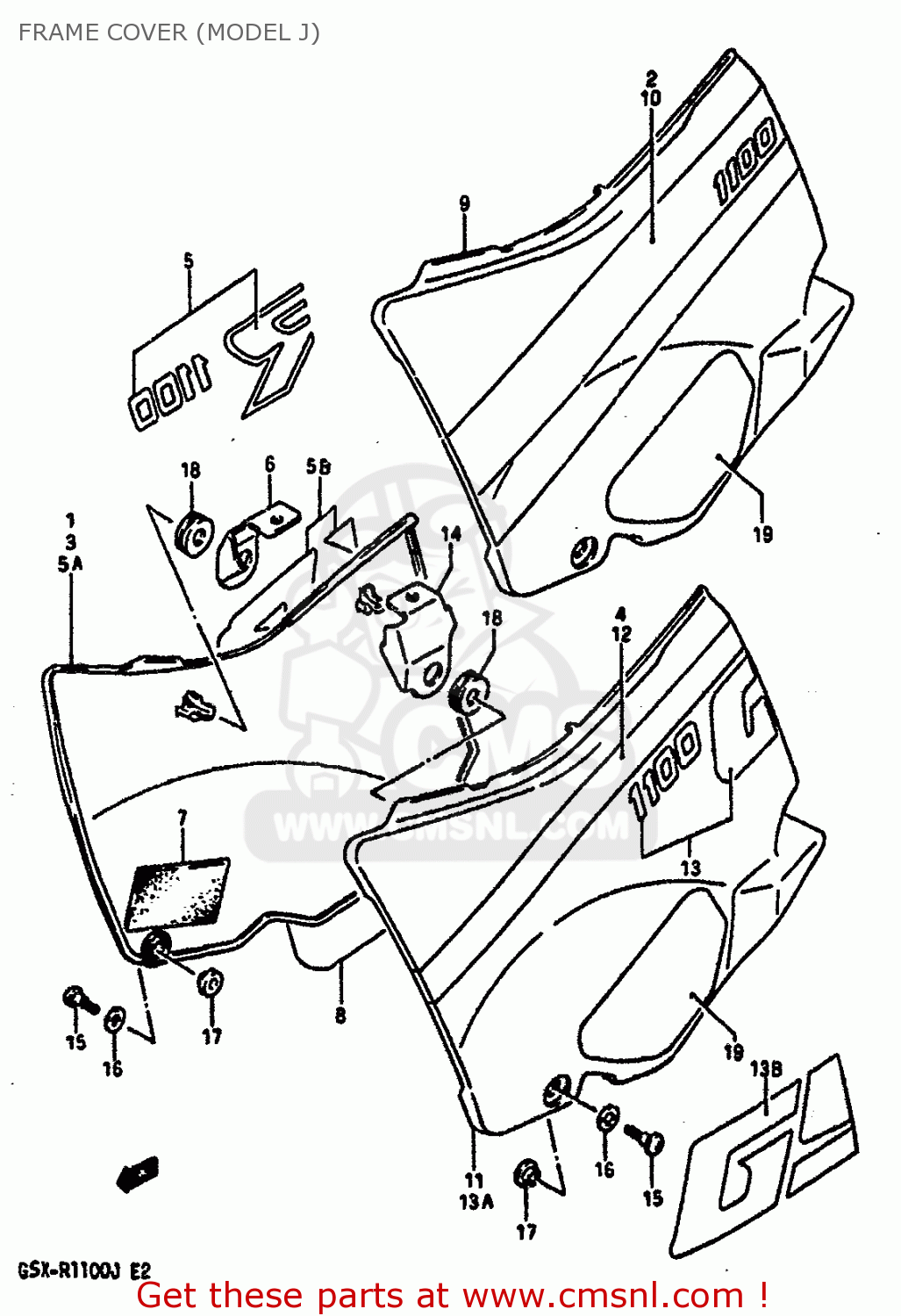

Frame cover (model j) diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

FRAME COVER (MODEL J) GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRAME COVER (MODEL J) GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRAME COVER (MODEL J) GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4711006B2022P
ref: 1
FOR 9HD
COVER,FRAME,RIGHT
4711006B2022P
€ 160.50
2
6813506B002GL
ref: 2
FOR 22P
TAPE,FRAME COVER,RIGHT
€ 33.00
3
4711006B302FF
ref: 3
FOR 9SR
COVER,FRAME,RIGHT
4711006B302FF
€ 145.50
4
6813506B1022R
ref: 4
FOR 2FF
TAPE,FRAME COVER,RIGHT
€ 0.00
5
6813106B0022R
ref: 5
FOR 2FF
EMBLEM,RIGHT
6813106B0022R
€ 15.50
5A
4711027B1013Z
ref: 5A
COVER FRAME RH
€ 160.50
5B
6813127B1039B
ref: 5B
FOR 13Z
EMBLEM,RH (GOLD)
6813127B1039B
€ 10.00
6
4714106B01
ref: 6
HOLDER,FRAME COVER,RIGHT
€ 4.50
7
4716127A00
ref: 7
RUBBER,FRAME COVER,RIGHT
€ 8.00
8
4726106B00
ref: 8
PROTECTOR,FRAME COVER
€ 19.00
9
4721006B2022P
ref: 9
FOR 9HD
COVER,FRAME,LEFT
4721006B2022P
€ 160.50
10
6814506B002GL
ref: 10
FOR 22P
TAPE,FRAME COVER,LEFT
€ 33.00
11
4721006B302FF
ref: 11
FOR 9SR
COVER,FRAME,LEFT
€ 167.50
12
6814506B1022R
ref: 12
FOR 2FF
TAPE,FRAME COVER,LEFT
€ 17.00
13
6814106B0022R
ref: 13
FOR 2FF
EMBLEM,LEFT
€ 15.00
13A
4721027B1013Z
ref: 13A
COVER FRAME LH
€ 160.50
13B
6814127B1039B
ref: 13B
FOR 13Z
EMBLEM,FRAME COVER,L(GOLD)
6814127B1039B
€ 15.50
14
4717106B01
ref: 14
HOLDER, FRAME COVER LH
€ 4.00
15
0913906044
ref: 15
SCREW(6X23)
0913906044
€ 7.00
16
0932008043
ref: 16
CUSHION
0932008043
€ 5.50
17
0832211084
ref: 17
WASHER
0832211084
€ 1.50
18
0932008018
ref: 18
CUSHION
0932008018
€ 4.00
19
4726127A00
ref: 19
PROTECTOR,FRAME COVER LH
4726127A00
€ 19.00
14-2
6814027A309HT
ref: 14-2
MODEL H,FOR 9HJ
TAPE SET,FRAME COVER,LEFT
€ 0.00
15-1
6823540A1060K
ref: 15-1
MODEL H,FOR 9HD
EMBLEM
€ 6.00
15-2
6823540A1095K
ref: 15-2
MODEL H,FOR 9HJ
EMBLEM
€ 4.00
16-1
4717106B00
ref: 16-1
MODEL G
HOLDER,FRAME COVER,LEFT
€ 4.00
16-2
4717106B01
ref: 16-2
MODEL H
HOLDER, FRAME COVER LH
€ 4.00
17
0913906044
ref: 17
SCREW(6X23)
0913906044
€ 7.00
18
0932008043
ref: 18
CUSHION
0932008043
€ 5.50
19
0832211084
ref: 19
WASHER
0832211084
€ 1.50
20
0932008018
ref: 20
CUSHION
0932008018
€ 4.00
21
4726127A00
ref: 21
PROTECTOR,FRAME COVER LH
4726127A00
€ 19.00
