Buy Suzuki GSXR Parts Online


FOOTREST

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

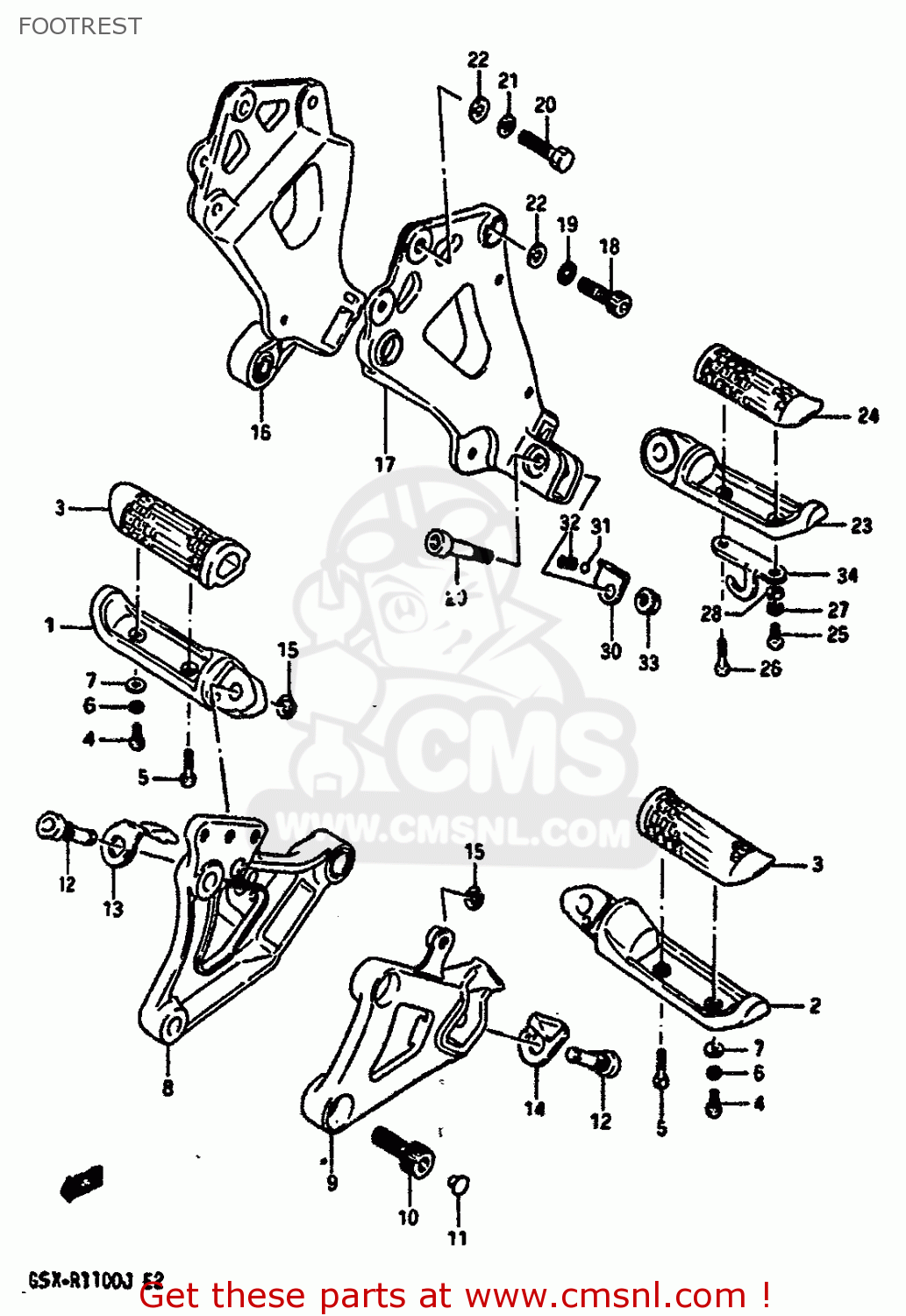

Footrest diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

FOOTREST GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4350106B00
ref: 1
FOOTREST ASSY,FR,R
4350106B00
€ 86.00
2
4350206B00
ref: 2
FOOTREST ASSY,FR,L
4350206B00
€ 46.50
3
4355006B00
ref: 3
RUBBER ASSY,FR FOOTREST
4355006B00
€ 15.50
4
0211205168
ref: 4
SCREW
0211205168
€ 2.50
5
0211205208
ref: 5
SCREW 5X20
0211205208
€ 3.00
6
0832121057
ref: 6
LOCK WASHER
0832121057
€ 2.00
7
0832221057
ref: 7
WASHER
0832221057
€ 2.50
8
4351027A00
ref: 8
BRACKET,FOOTREST,R
4351027A00
€ 115.50
9
4352227A00
ref: 9
BRACKET,FOOTREST,L
4352227A00
€ 85.00
10
0711010258
ref: 10
BOLT
€ 3.00
11
4357534500
ref: 11
CAP
4357534500
€ 1.50
12
4352927A00
ref: 12
BOLT,FR FOOTREST
4352927A00
€ 6.50
13
4358006B00
ref: 13
CUSHION,FR FOOTREST,R
4358006B00
€ 10.50
14
4359006B00
ref: 14
CUSHION,FR FOOTREST,L
4359006B00
€ 10.50
15
0833211068
ref: 15
E RING 6MM
0833211068
€ 2.00
16-1
4381027A00
ref: 16-1
MODEL G
BRACKET
€ 100.50
16-2
4381027A01
ref: 16-2
MODEL H/J
BRACKET,PILLION FOOTREST
4381027A01
€ 100.50
17-1
4382127A00
ref: 17-1
MODEL G
BRACKET
€ 71.50
17-2
4382127A01
ref: 17-2
MODEL H/J
BRACKET,PILLION FOOTREST
4382127A01
€ 71.50
18
0711006257
ref: 18
BOLT
€ 2.50
19
0916406009
ref: 19
WASHER
€ 2.50
20
0110706307
ref: 20
BOLT 6X30
€ 2.50
21
0832121067
ref: 21
WASHER,LOCK
0832121067
€ 2.50
22
0832211068
ref: 22
WASHER 6MM
€ 2.00
23-1
4360106B00
ref: 23-1
FOOTREST ASSEMBLY,PILLION
4360106B00
€ 57.00
23-2
4360206B00
ref: 23-2
FOOTREST ASSY,PILLION,L
4360206B00
€ 52.00
24
4361006B00
ref: 24
RUBBER,PILLION FOOTREST
4361006B00
€ 16.00
25
0211205205
ref: 25
SCREW 5X20
0211205205
€ 2.50
26
0912505066
ref: 26
SCREW(5X25)
0912505066
€ 2.00
27
0832121055
ref: 27
WASHER,LOCK
0832121055
€ 3.00
28
0832221055
ref: 28
WASHER,5MM
0832221055
€ 2.50
29
4364204A00
ref: 29
BOLT,PILLION FOOTREST
4364204A00
€ 4.50
30-1
4363504A00
ref: 30-1
PLATE,SPRING STOP,RIGHT
4363504A00
€ 9.50
30-2
4373504A00
ref: 30-2
PLATE,SPRING STOP LH
4373504A00
€ 4.00
31
0611207004
ref: 31
BALL
€ 1.50
32
0944005003
ref: 32
SPRING
0944005003
€ 1.50
33
0831931065
ref: 33
NUT
0831931065
€ 2.50
34-1
4361906B00
ref: 34-1
HOOK RH
4361906B00
€ 6.00
34-2
4362906B00
ref: 34-2
HOOK,LH
€ 6.00
