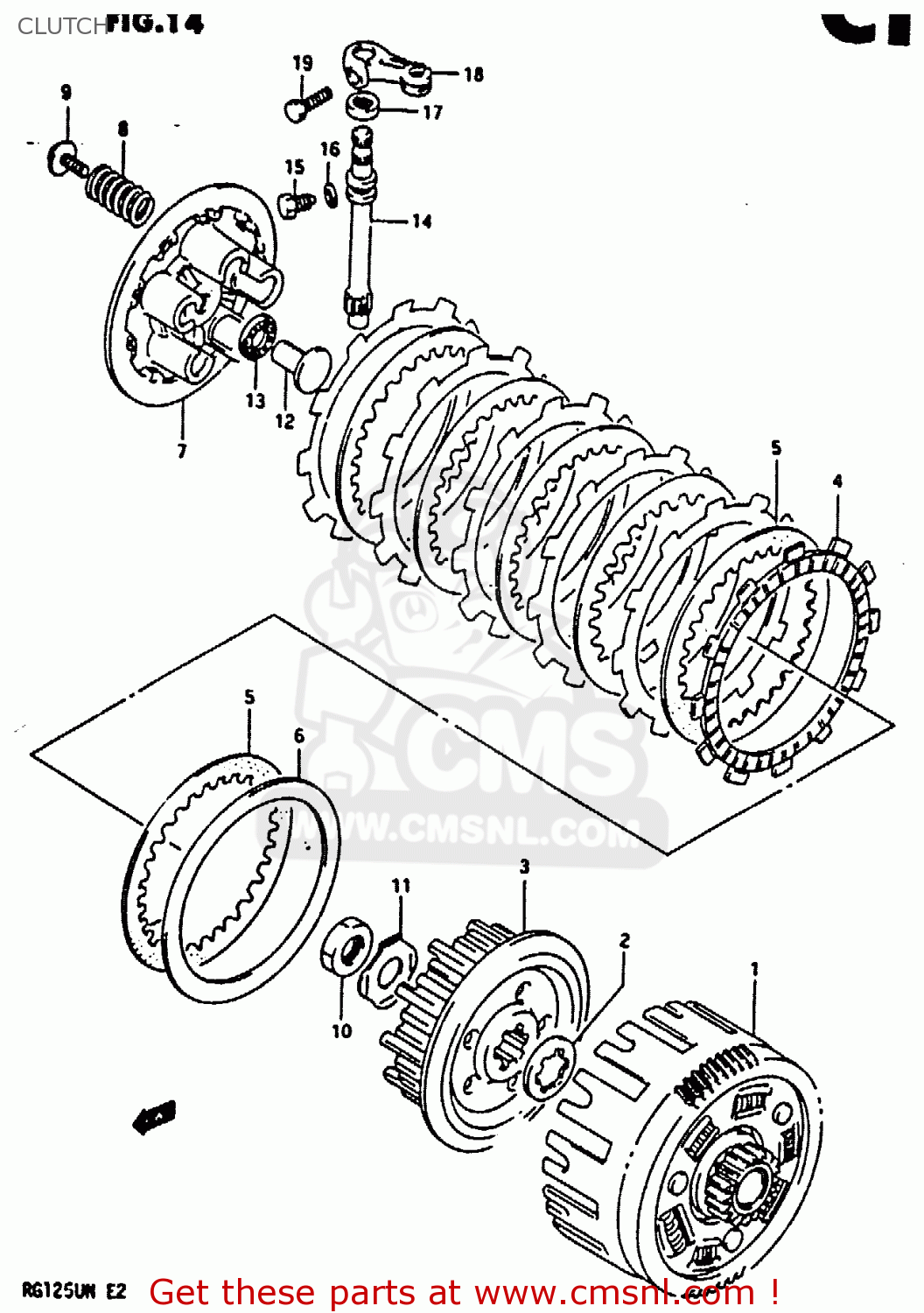

CLUTCH

ref

part #

description

quantity

1

2120008D01
ref: 1

GEAR ASSY,PRI DRIVEN

€ 211.50

2

0916720027
ref: 2

** SUPERSEEDED

€ 5.50

3

2141003D00
ref: 3

HUB,CLUTCH SLEEVE

€ 44.00

4

2144113A01
ref: 4

PLATE,CLUTCH DRIVE(T:3.0) (NAS)

€ 8.50

5

2145136200
ref: 5

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 5.00

6

2147108D00
ref: 6

SEAT,WAVE WASHER

€ 10.00

7

2146201B40
ref: 7

DISC,CLUTCH PRESSURE

€ 47.50

8

0944015024
ref: 8

SPRING

€ 5.50

9

0911605003
ref: 9

BOLT 5X16

€ 2.50

10

0914016027
ref: 10

NUT

€ 5.50

11

0916916006
ref: 11

WASHER

€ 19.50

12

2316502B00
ref: 12

RACK,CLUTCH RELEASE

€ 17.00

13

0926310002
ref: 13

BEARING(10X22X2.8)

€ 8.50

14

2326120A01
ref: 14

PINION,CLUTCH RELEASE

€ 35.00

15

0913506009
ref: 15

BOLT(6X12)

€ 2.00

16

0832221067
ref: 16

WASHER

€ 2.00

17

0928510004
ref: 17

SEAL,OIL(10X17X5)

€ 3.50

18

2327122A00
ref: 18

ARM,CLUTCH RELEASE

€ 47.00

19

0110706166
ref: 19

BOLT

€ 2.00
