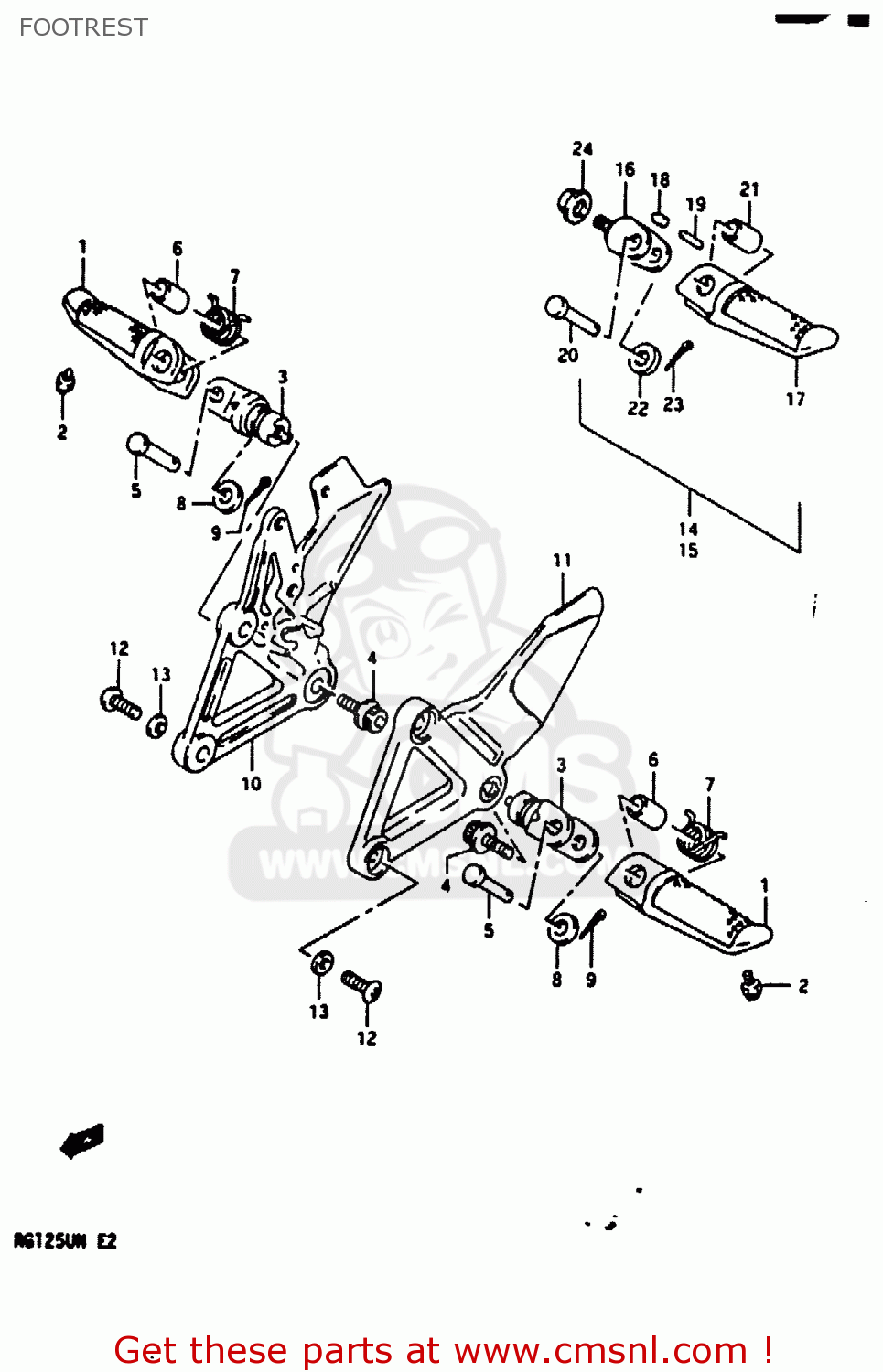

FOOTREST

ref

part #

description

quantity

1-1

4351132C00
ref: 1-1

BAR,FR FOOTREST,R

€ 42.00

1-2

4352132C00
ref: 1-2

BAR,FR FOOTREST,L

€ 42.00

2

0910406006
ref: 2

BOLT(6X6)

€ 3.50

3

4353006C01
ref: 3

HOLDER,FOOTREST

€ 32.00

4

0910610052
ref: 4

BOLT(10X24)

€ 6.00

5

0920008067
ref: 5

PIN

€ 5.50

6

0918008149
ref: 6

SPACER(8.1X12X22)

€ 7.00

7

0944819020
ref: 7

SPRING

€ 3.50

8

0832211088
ref: 8

WASHER

€ 2.00

9

0411125158
ref: 9

PIN 20X15

€ 1.50

10

4381119D00
ref: 10

BRACKET,FR FOOTREST,R

€ 93.50

11

4382119D00
ref: 11

BRACKET,FR FOOTREST,L

€ 129.50

12

0910608052
ref: 12

BOLT

€ 3.50

13

0916408015
ref: 13

WASHER

€ 3.00

14

4360019D00
ref: 14

FOOTREST ASSY, PILLION RH

€ 73.00

15

4370019D00
ref: 15

FOOTREST ASSY, PILLION LH

€ 73.00

16

4361032C02
ref: 16

HOLDER,PILLION FOOTREST

€ 29.50

17-1

4361132C00
ref: 17-1

BAR,PILLION FOOTREST R

€ 31.00

17-2

4362132C00
ref: 17-2

BAR,PILLION FOOTREST L

€ 31.00

18

4369117C00
ref: 18

CUSHION,FOOTREST HOLDER

€ 6.00

19

4361217D00
ref: 19

ROLLER,FOOTREST HOLDER

€ 2.50

20

0920008067
ref: 20

PIN

€ 5.50

21

0918008149
ref: 21

SPACER(8.1X12X22)

€ 7.00

22

0832211088
ref: 22

WASHER

€ 2.00

23

0411125158
ref: 23

PIN 20X15

€ 1.50

24

0831931107
ref: 24

NUT

€ 3.00
