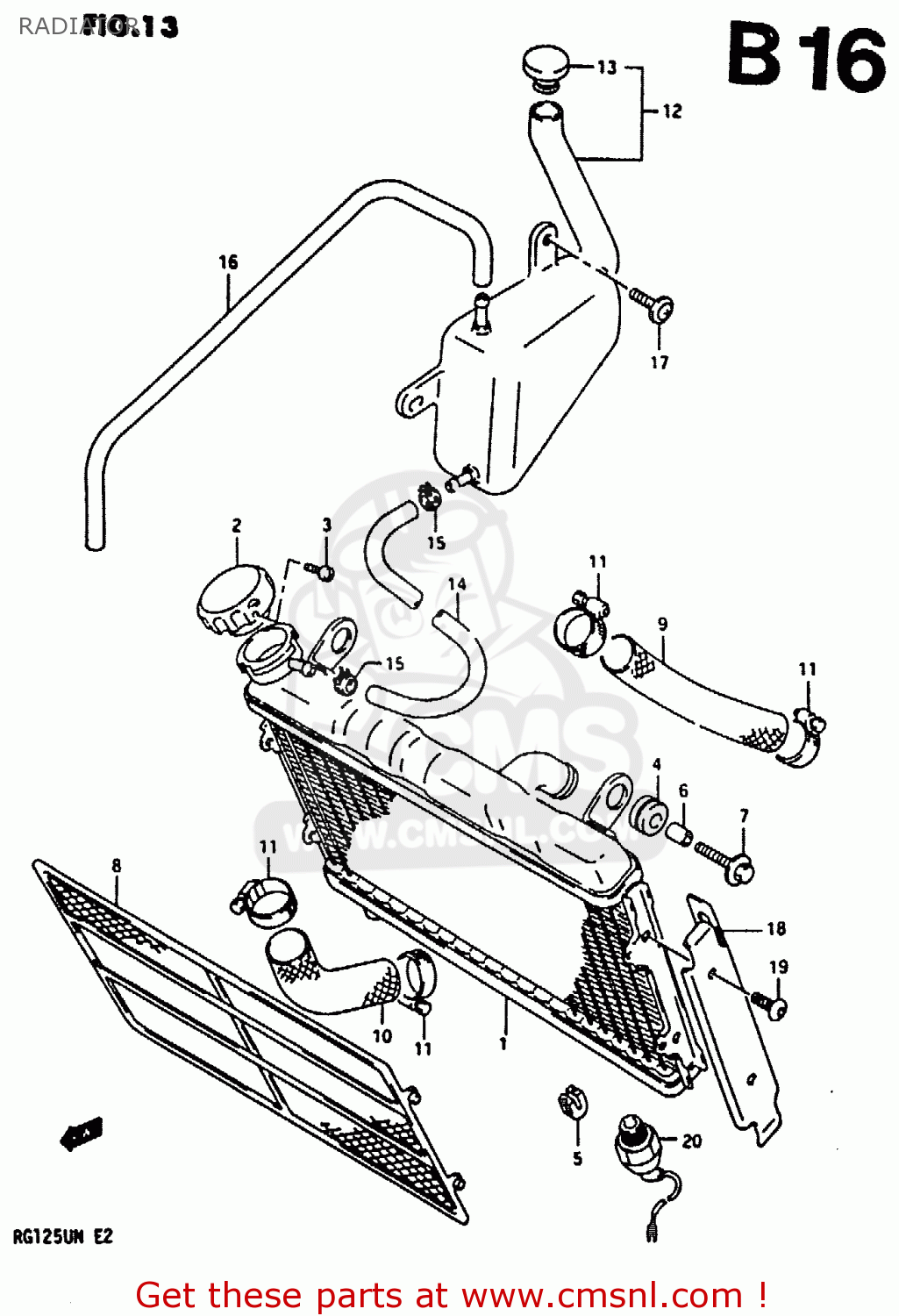

RADIATOR

ref

part #

description

quantity

1

1771019D10
ref: 1

RADIATOR, WATER

€ 0.00

2

1773019D00
ref: 2

CAP COMP,RADIATOR 1.1

€ 33.50

3

1773303D00
ref: 3

SCREW,RADIATOR CAP

€ 2.00

4

0932010042
ref: 4

CUSHION

€ 4.00

5

1662827A00
ref: 5

CUSHION,OIL COOLER NO.2

€ 3.00

6

0918006213
ref: 6

SPACER (6.8X10X12)

€ 2.50

7

0911606147
ref: 7

BOLT(6X25)

€ 4.00

8

1799116710
ref: 8

NET,RADIATOR

€ 29.50

9

1785119D00
ref: 9

HOSE, RADIATOR, INLET

€ 13.00

10

1785219D10
ref: 10

HOSE,RADIATOR

€ 7.00

11

0940225502
ref: 11

CLAMP

€ 8.50

12

1791019D00
ref: 12

TANK,RESERVOIR

€ 66.00

13

1793212C00
ref: 13

CAP,RESERVOIR TANK

€ 3.50

14

093525090100B
ref: 14
L:2000@r1120

HOSE(5X9X2000)

€ 19.50

15

0940108407
ref: 15

CLIP

€ 3.00

16

093525090100A
ref: 16
L:1000@r760

HOSE

€ 19.50

17

0913606009
ref: 17

SCREW(6X20)

€ 2.50

18

1776119D00
ref: 18

COVER, RADIATOR

€ 0.00

19

0913906027
ref: 19

SCREW(6X12)

€ 3.00

20

3485003D00
ref: 20

SWITCH ASSY,WATER TEMP

€ 85.00
