STAND - REAR BRAKE

RG125U 1992 (N) (E02 E04)

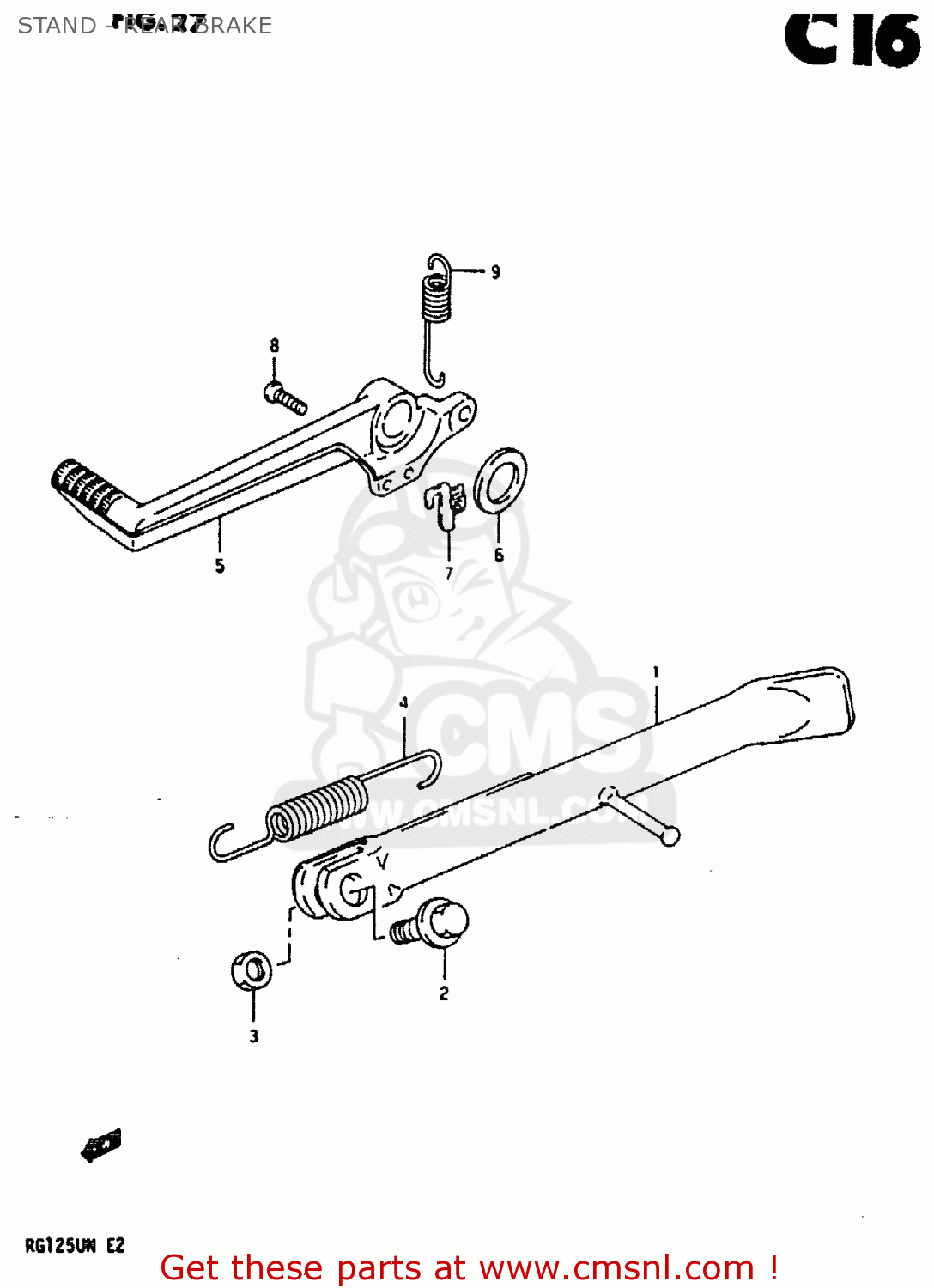

Stand - rear brake diagram RG125U 1992 (N) (E02 E04)

STAND - REAR BRAKE RG125U 1992 (N) (E02 E04)

STAND - REAR BRAKE RG125U 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1-1

4231019D00
ref: 1-1
E4

STAND, PROP

€ 72.00

1-2

4231019D10
ref: 1-2

STAND,PROP

€ 61.00

2

0911110046
ref: 2

BOLT(10X30)

€ 2.50

3

0831022107
ref: 3

NUT

€ 2.50

4-1

0944314063
ref: 4-1
E4

SPRING

€ 0.00

4-2

0944314042
ref: 4-2

SPRING

€ 7.50

4-3

0944312043
ref: 4-3

SPRING

€ 3.50

5

4311119D00
ref: 5

PEDAL, BRAKE

€ 80.50

6

0916118003
ref: 6

WASHER(18.2X27X1)

€ 3.00

7

4356019D00
ref: 7

BRACKET, SPRING

€ 6.00

8

0211205168
ref: 8

SCREW

€ 2.50

9

0944313016
ref: 9

SPRING

€ 3.00
