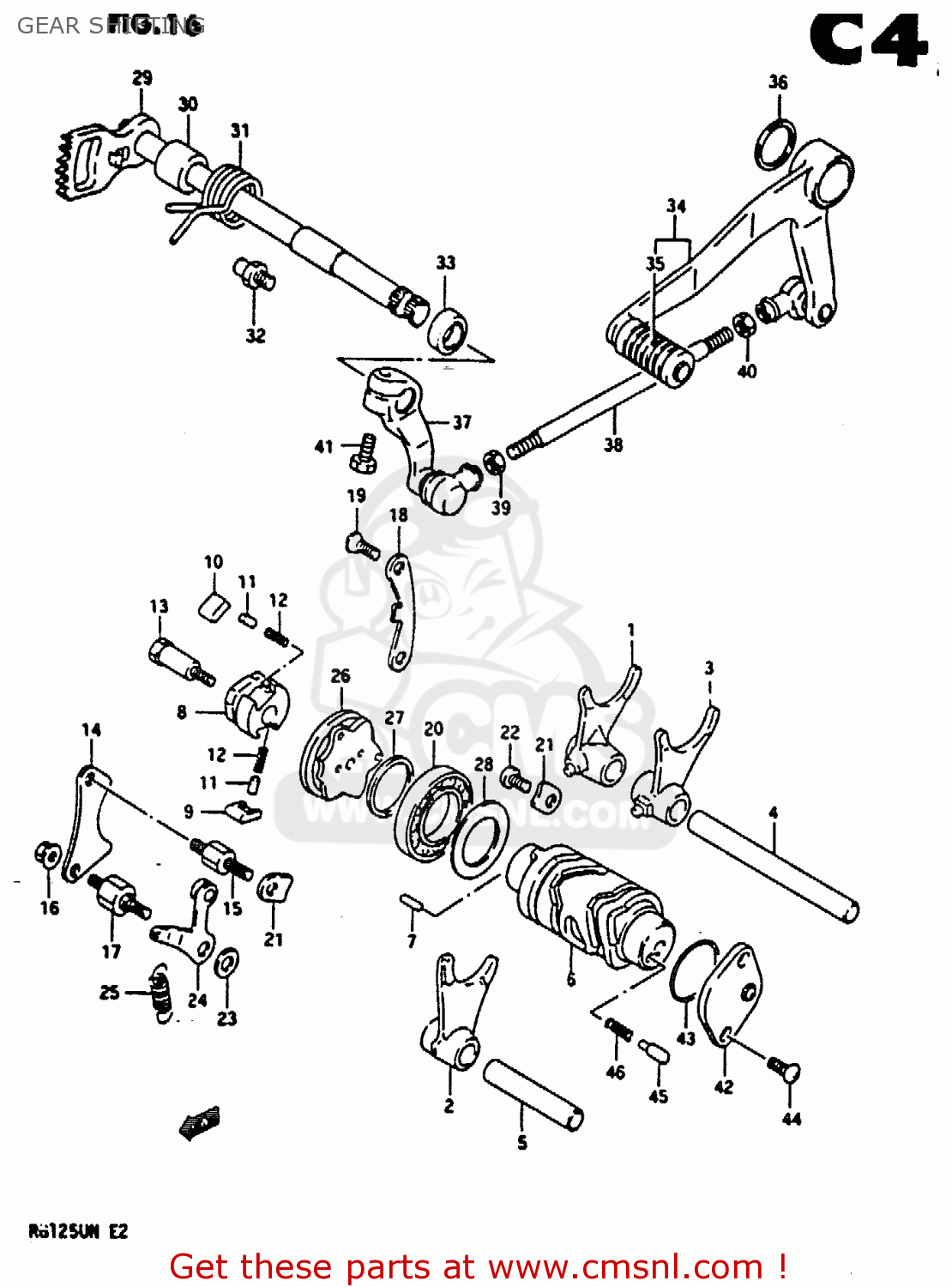

GEAR SHIFTING

ref

part #

description

quantity

1

2521141301
ref: 1

FORK,GEAR SHIFT NO.1

€ 71.50

2

2522141301
ref: 2

FORK,GEAR SHIFT NO.2

€ 71.50

3

2523136A00
ref: 3

FORK, NO. 3

€ 54.00

4

2541116701
ref: 4

SHAFT,GEAR SHIFT FORK(L:109)

€ 11.50

5

2542135401
ref: 5

SHAFT,GEAR SHIFT FORK

€ 19.00

6

2531012B01
ref: 6

CAM

€ 75.00

7

0422104089
ref: 7

PIN

€ 1.50

8

2532231301
ref: 8

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

9

2532334201
ref: 9

PAWL,GEAR SHIFT NO.1

€ 6.00

10

2532434201
ref: 10

PAWL,GEAR SHIFT NO.2

€ 6.00

11

0926105003
ref: 11

PIN(5X8)

€ 1.50

12

0944004003
ref: 12

SPRING

€ 1.50

13

2531238A00
ref: 13

PIN,SHIFT CAM DRIVEN GEAR

€ 4.00

14

2533112B00
ref: 14

LIFTER,GEAR SHIFT POLE

€ 6.00

15

2533238A00
ref: 15

BOSS,SHIFT PAWL LIFTER

€ 3.50

16

0915906017
ref: 16

NUT

€ 2.50

17

2535538A00
ref: 17

SUPPORT,CAM STOPPER ARM

€ 5.50

18

2534112B00
ref: 18

GUIDE,GEAR SHIFT CAM

€ 7.00

19

0212206128
ref: 19

SCREW

€ 3.00

20

0926225002
ref: 20

BEARING

€ 24.00

21

2474103D00
ref: 21

RETAINER,GEAR SHIFT CAM BRG

€ 4.50

22

0211206128
ref: 22

SCREW 6X12

€ 2.00

23

0821106161
ref: 23

WASHER

€ 2.00

24

2535012B00
ref: 24

STOPPER, CAM

€ 9.00

25

0944309044
ref: 25

SPRING

€ 3.50

26

2538012B00
ref: 26

PLATE,GEAR SHIFT CAM

€ 10.00

27

0916025059
ref: 27

WASHER(25X32X3)

€ 5.00

28

2538512B00
ref: 28

SEAL,SHIFT CAM OIL

€ 7.50

29

2551008D00
ref: 29

SHAFT,GEAR SHIFT

€ 116.50

30

0918012083
ref: 30

SPACER(12X20X15.3)

€ 2.50

31

0944426023
ref: 31

SPRING

€ 3.00

32

2567136A00
ref: 32

STOPPER,GEAR SHIFT ARM

€ 3.00

33

0928512002
ref: 33

OIL SEAL

€ 7.00

34

2560006C00
ref: 34

LEVER ASSY,GEAR SHIFT

€ 131.00

35

2565220C00
ref: 35

RUBBER,GEAR SHIFT PEDAL

€ 8.00

36

0916418005
ref: 36

WASHER

€ 3.00

37

2552026D00
ref: 37

ARM,GEAR SHIFT LINK

€ 47.50

38

2552519D00
ref: 38

ROD, GEAR SHIFT LINK (L:180)

€ 9.50

39

0831011068
ref: 39

NUT

€ 2.50

40

0914006011
ref: 40

NUT

€ 1.50

41

0110706208
ref: 41

BOLT

€ 2.00

42

3772029350
ref: 42

BODY,GEAR SHIFT SWITCH

€ 10.50

43

0928026003
ref: 43

O-RING (D:2.4 ID:26.2)

€ 2.50

44

0211205128
ref: 44

SCREW

€ 2.50

45

0920905011
ref: 45

PIN(5X15.5)

€ 2.00

46

0944004010
ref: 46

SPRING

€ 1.50
