ELECTRICAL

RG125U 1992 (N) (E02 E04)

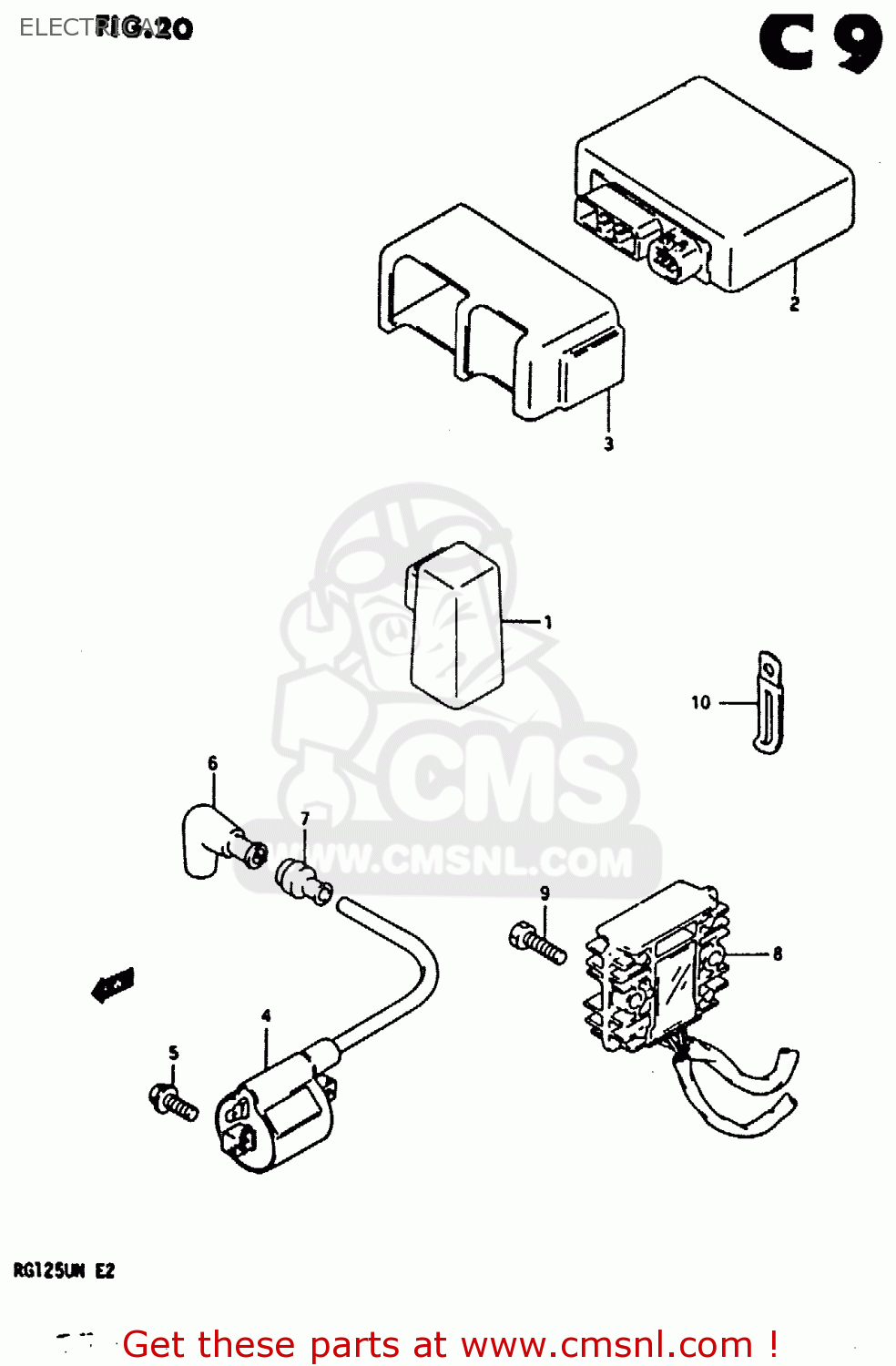

Electrical diagram RG125U 1992 (N) (E02 E04)

ELECTRICAL RG125U 1992 (N) (E02 E04)

ELECTRICAL RG125U 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1

3180019D00
ref: 1

RFLAY ASSY, STARTING MOTOR

€ 41.00

2

3290019D40
ref: 2

CDI UNIT

€ 1,022.00

3

3298019D00
ref: 3

HOLDER, CDI UNIT

€ 0.00

4

3341003D00
ref: 4

COIL ASSY,IGNITION

€ 99.50

5

0151706166
ref: 5

BOLT

€ 2.50

6

3351020A00
ref: 6

CAP,SPARK PLUG

€ 23.00

7

3354238B00
ref: 7

SEAL,HIGH TENSION CORD

€ 4.50

8

3280008D10
ref: 8

RECTIFIER ASSY

€ 94.50

9

0912806024
ref: 9

SCREW (6X25)

€ 2.50

10

0940406402
ref: 10

CLAMP

€ 2.50
