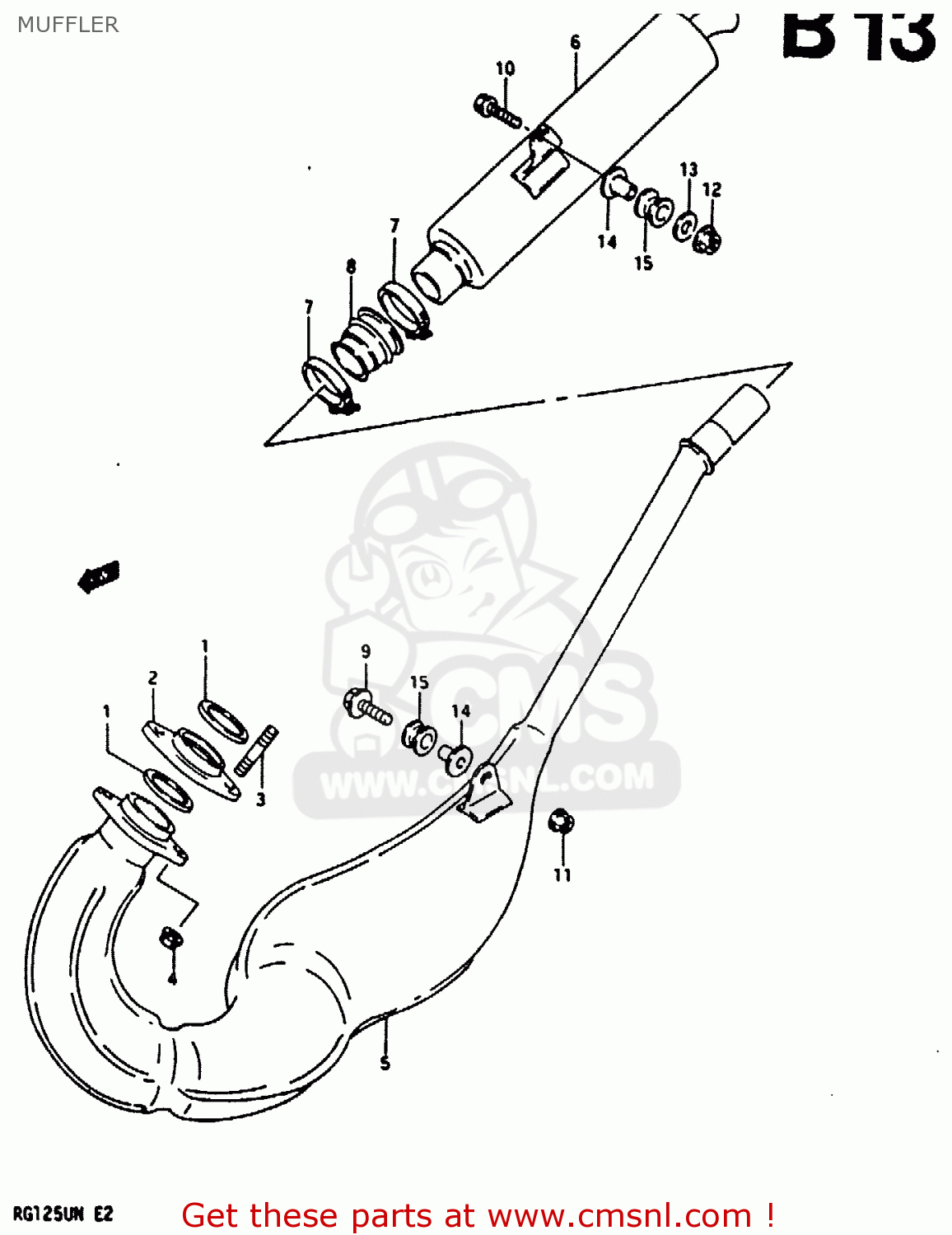

MUFFLER

ref

part #

description

quantity

1

1418101D00
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 8.00

2

1419522D00
ref: 2

FLANGE,EXHAUST FITING

€ 54.50

3

0142108305
ref: 3

STUD BOLT

€ 2.00

4

0836135085
ref: 4

NUT

€ 1.50

5-1

1431019D60
ref: 5-1
E2

BODY, MUFFLER, 1ST

€ 0.00

5-2

1431019D70
ref: 5-2
E4

BODY, MUFFLER, 1ST

€ 0.00

6

1433019D00
ref: 6

MUFFLER ASSY, 2ND

€ 259.00

7

0940246501
ref: 7

CLAMP

€ 6.50

8

1477103D00
ref: 8

CONNECTOR,2ND MUFFLER

€ 26.00

9

0911808078
ref: 9

BOLT 8X35

€ 4.50

10

0712008357
ref: 10

BOLT

€ 3.50

11

0831616085
ref: 11

NUT 8MM

€ 3.00

12

0831931085
ref: 12

NUT

€ 2.50

13

0916008067
ref: 13

WASHER

€ 2.00

14

0918008151
ref: 14

SPACER(8.6X12X17.5)

€ 6.00

15

0932012043
ref: 15

CUSHION

€ 8.00

all assemblies
