FRONT FENDER

RG125U 1992 (N) (E02 E04)

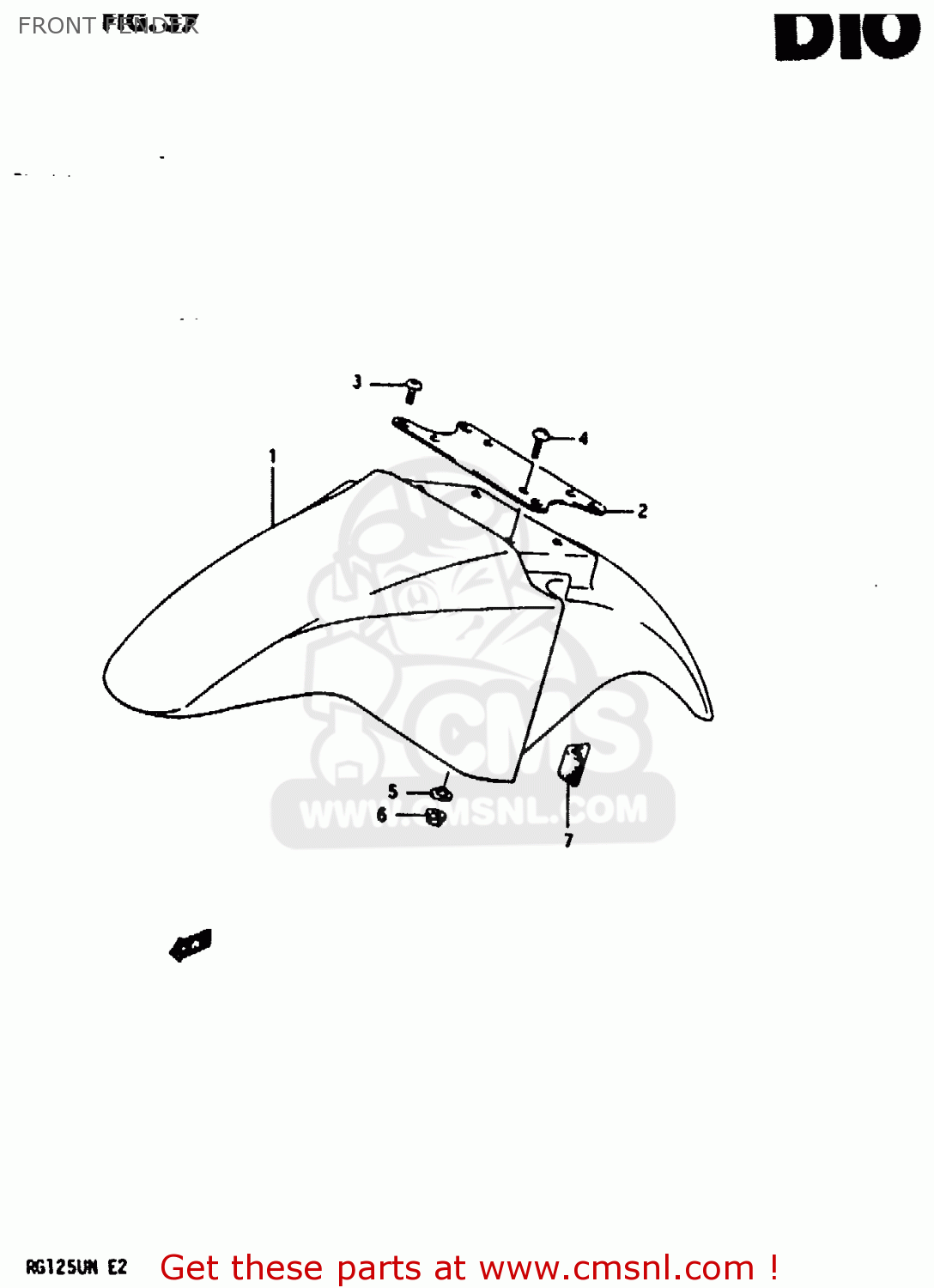

Front fender diagram RG125U 1992 (N) (E02 E04)

FRONT FENDER RG125U 1992 (N) (E02 E04)

FRONT FENDER RG125U 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1-1

5311132B210NH
ref: 1-1

FENDER,FR

€ 0.00

1-2

5311132B21019
ref: 1-2

FENDER,FR

€ 0.00

2

5311401D00
ref: 2

BRACE,FR FENDER

€ 19.50

3

0913906027
ref: 3

SCREW(6X12)

€ 3.00

4

0913905042
ref: 4

SCREW(5X16)

€ 2.50

5

0916905010
ref: 5

WASHER

€ 3.00

6

0915905026
ref: 6

NUT

€ 2.50

7

5314532B00
ref: 7

CUSHION,FRONT FENDER

€ 2.00
