FRAME

RG125U 1992 (N) (E02 E04)

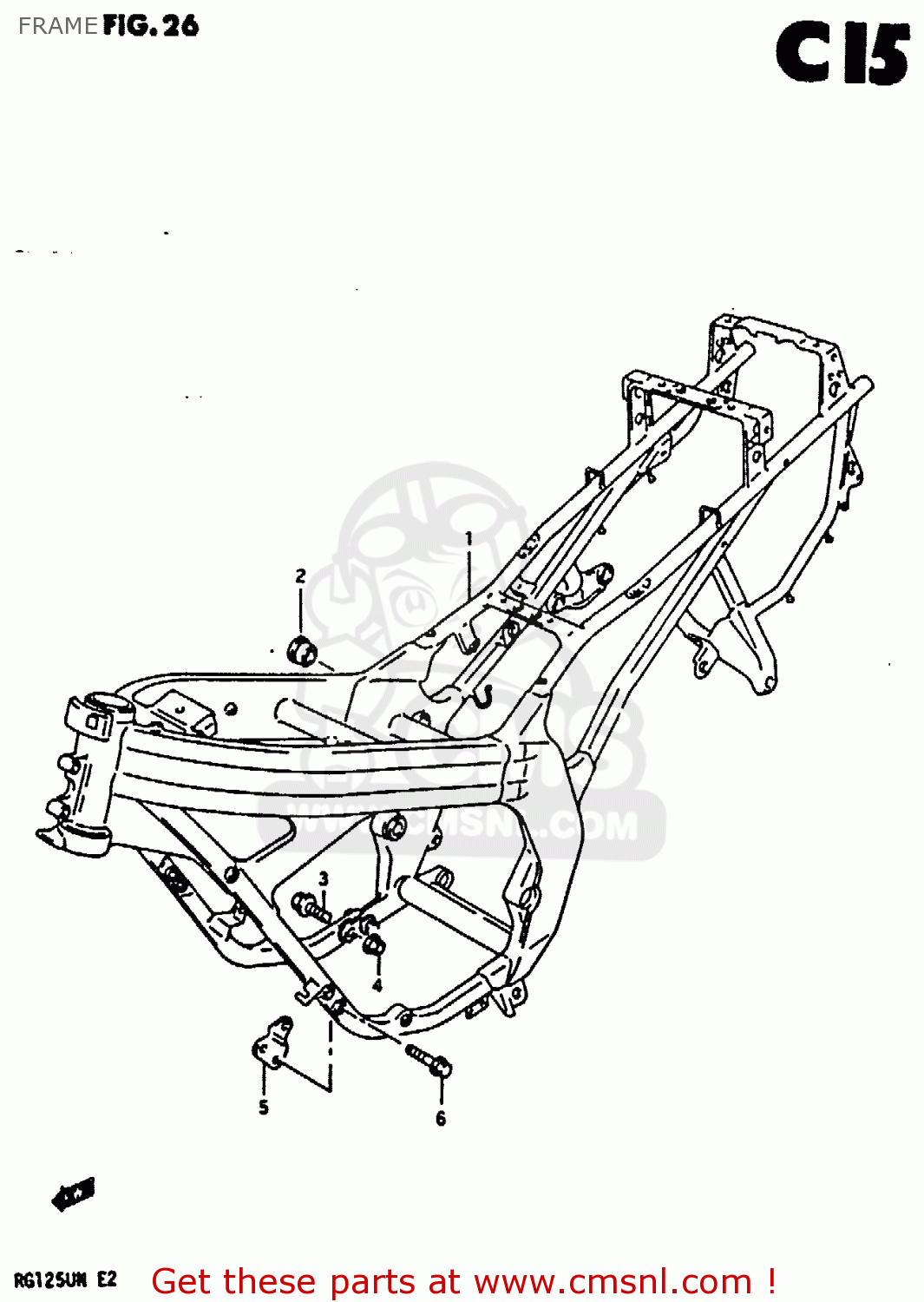

Frame diagram RG125U 1992 (N) (E02 E04)

FRAME RG125U 1992 (N) (E02 E04)

FRAME RG125U 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1-1

4110019D7013L
ref: 1-1

FRAME (SILVER)

€ 0.00

1-2

4110019D8013L
ref: 1-2
E4

FRAME (SILVER)

€ 0.00

2

0925025006
ref: 2

PLUG

€ 0.00

3

0712010308
ref: 3

BOLT, FRAME JOINT

€ 4.00

4

0831931107
ref: 4

NUT

€ 3.00

5

4191019D0013L
ref: 5

PLATE,ENG MTG(SILVER)

€ 13.00

6

0151708508
ref: 6

BOLT

€ 3.50
