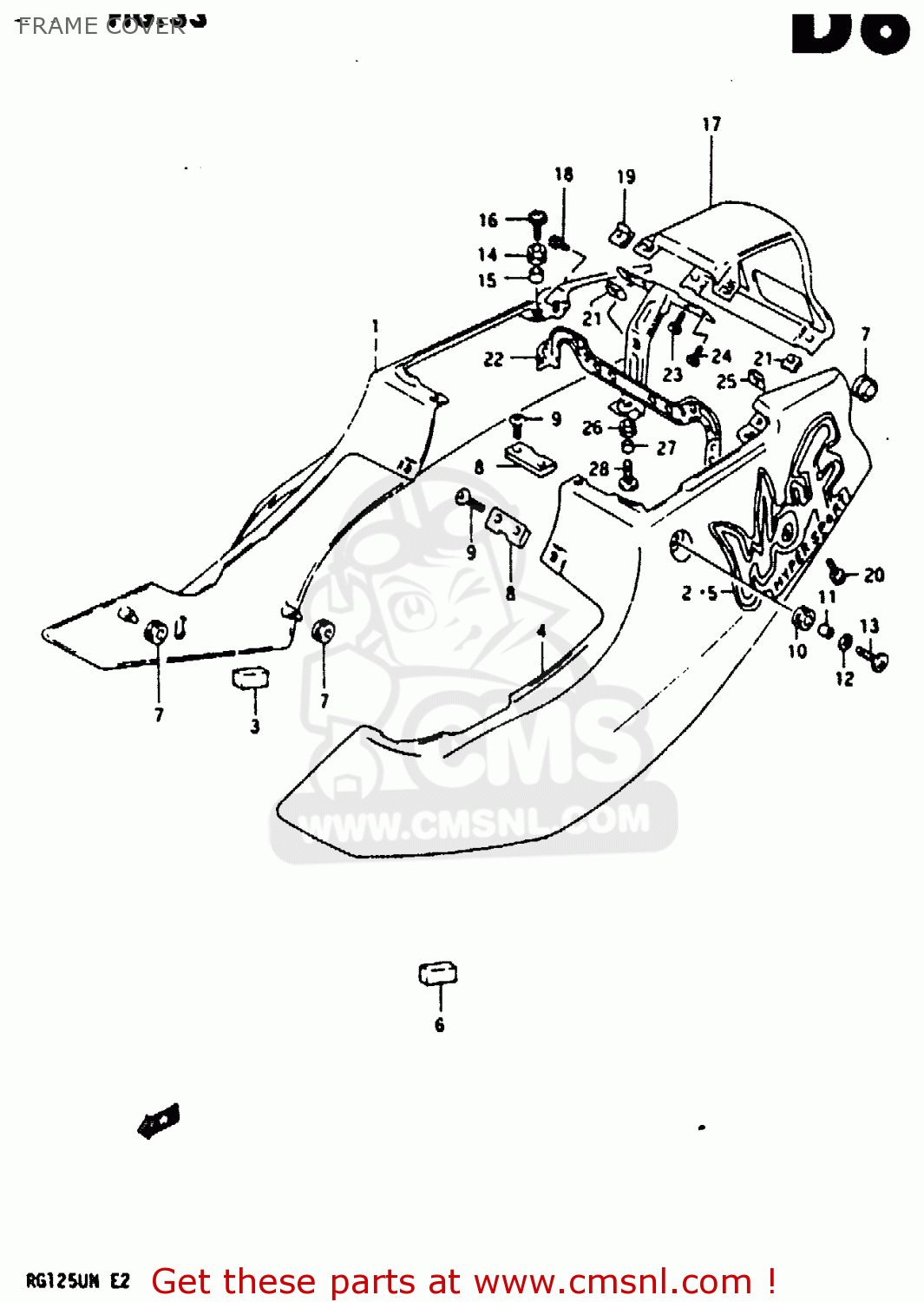

FRAME COVER

ref

part #

description

quantity

1-1

4711019D400NH
ref: 1-1

COVER, FRAME RH (RED)

€ 170.50

1-2

4711019D40019
ref: 1-2

COVER, FRAME RH (BLACK)

€ 316.50

2-1

6813119D00A0H
ref: 2-1
FOR 0NH

EMBLEM, FRAME COVER

€ 0.00

2-2

6813119D00A0J
ref: 2-2
FOR 019

EMBLEM, FRAME COVER

€ 0.00

3

4716119D00
ref: 3

RUBBER,FRAME COVER

€ 5.50

4-1

4721019D400NH
ref: 4-1

COVER, FRAME LH (RED)

€ 329.00

4-2

4721019D40019
ref: 4-2

COVER, FRAME LH (BLACK)

€ 360.00

5-1

6813119D00A0H
ref: 5-1
FOR 0NH

EMBLEM, FRAME COVER

€ 0.00

5-2

6813119D00A0J
ref: 5-2
FOR 019

EMBLEM, FRAME COVER

€ 0.00

6

4716119D00
ref: 6

RUBBER,FRAME COVER

€ 5.50

7

0932008018
ref: 7

CUSHION

€ 4.00

8

4716812C00
ref: 8

NUT,FRAME COVER CTR

€ 14.00

9

0913905020
ref: 9

SCREW

€ 2.00

10

9443326B00
ref: 10

CUSHION

€ 4.00

11

0918006027
ref: 11

SPACER (6.3X9.1X6.7)

€ 3.00

12

0916006054
ref: 12

WASHER(6.5X22X1.6)

€ 2.00

13

0913906050
ref: 13

SCREW(6X20)

€ 5.00

14

9443326B00
ref: 14

CUSHION

€ 4.00

15

0918006027
ref: 15

SPACER (6.3X9.1X6.7)

€ 3.00

16

0913606109
ref: 16

SCREW(6X20)

€ 3.00

17-1

4731019D400NH
ref: 17-1

COVER, FRAME CENTER (RED)

€ 46.00

17-2

4731019D40019
ref: 17-2

COVER, FRAME CENTER (BLACK)

€ 43.00

18

0324115125
ref: 18

SCREW, BRACKET

€ 2.50

19

0914805019
ref: 19

NUT

€ 2.00

20

0314105125
ref: 20

SCREW

€ 1.50

21

0914805038
ref: 21

NUT

€ 2.50

22

4741022011
ref: 22

BRACKET, TAIL LAMP

€ 0.00

23

0354104125
ref: 23

SCREW

€ 1.50

24

0324115125
ref: 24

SCREW, BRACKET

€ 2.50

25

0914805019
ref: 25

NUT

€ 2.00

26

0932008048
ref: 26

CUSHION

€ 3.00

27

0918006044
ref: 27

SPACER (6.1X8X9.5)

€ 2.50

28

0911606010
ref: 28

BOLT(6X20)

€ 2.00
