HEADLAMP

RG125U 1992 (N) (E02 E04)

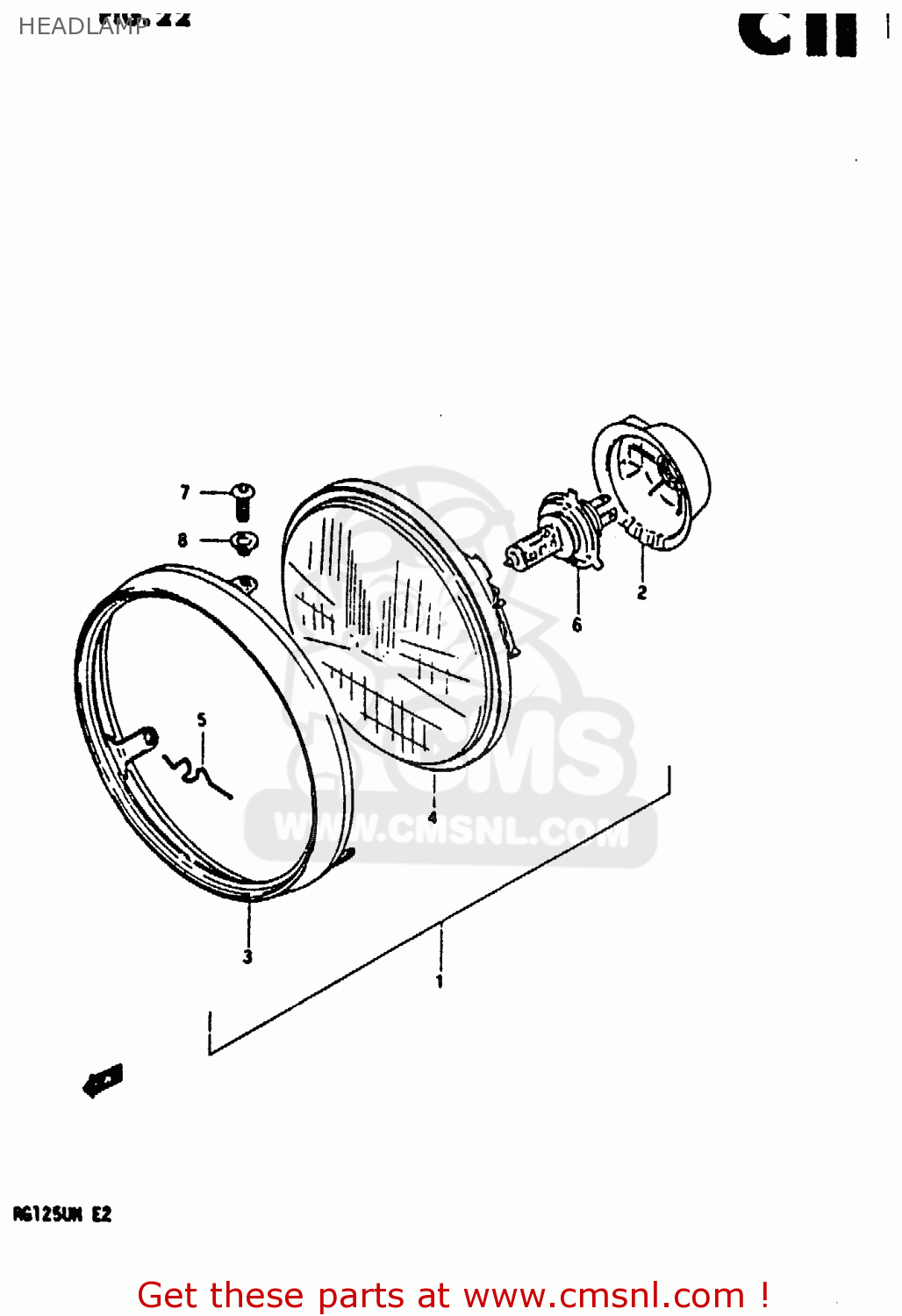

Headlamp diagram RG125U 1992 (N) (E02 E04)

HEADLAMP RG125U 1992 (N) (E02 E04)

HEADLAMP RG125U 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1-1

3510019D20
ref: 1-1

HEADLAMP ASSY

€ 234.00

1-2

3510019D40
ref: 1-2
E4

HEADLAMP ASSY

€ 0.00

2

3517345200
ref: 2

COVER,SOCKET

€ 14.00

3

3511134A00
ref: 3

RIM

€ 0.00

4

3512134A10
ref: 4

UNIT

€ 0.00

5

3512827221
ref: 5

SPRING

€ 2.50

6-1

0947112060
ref: 6-1

BULB(12V60/55W,H4)

€ 8.00

6-2

0947112061
ref: 6-2
E4, EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

7

0913905022
ref: 7

SCREW

€ 2.50

8

0916906021
ref: 8

WASHER

€ 2.50
