MAGNETO

RG125U 1992 (N) (E02 E04)

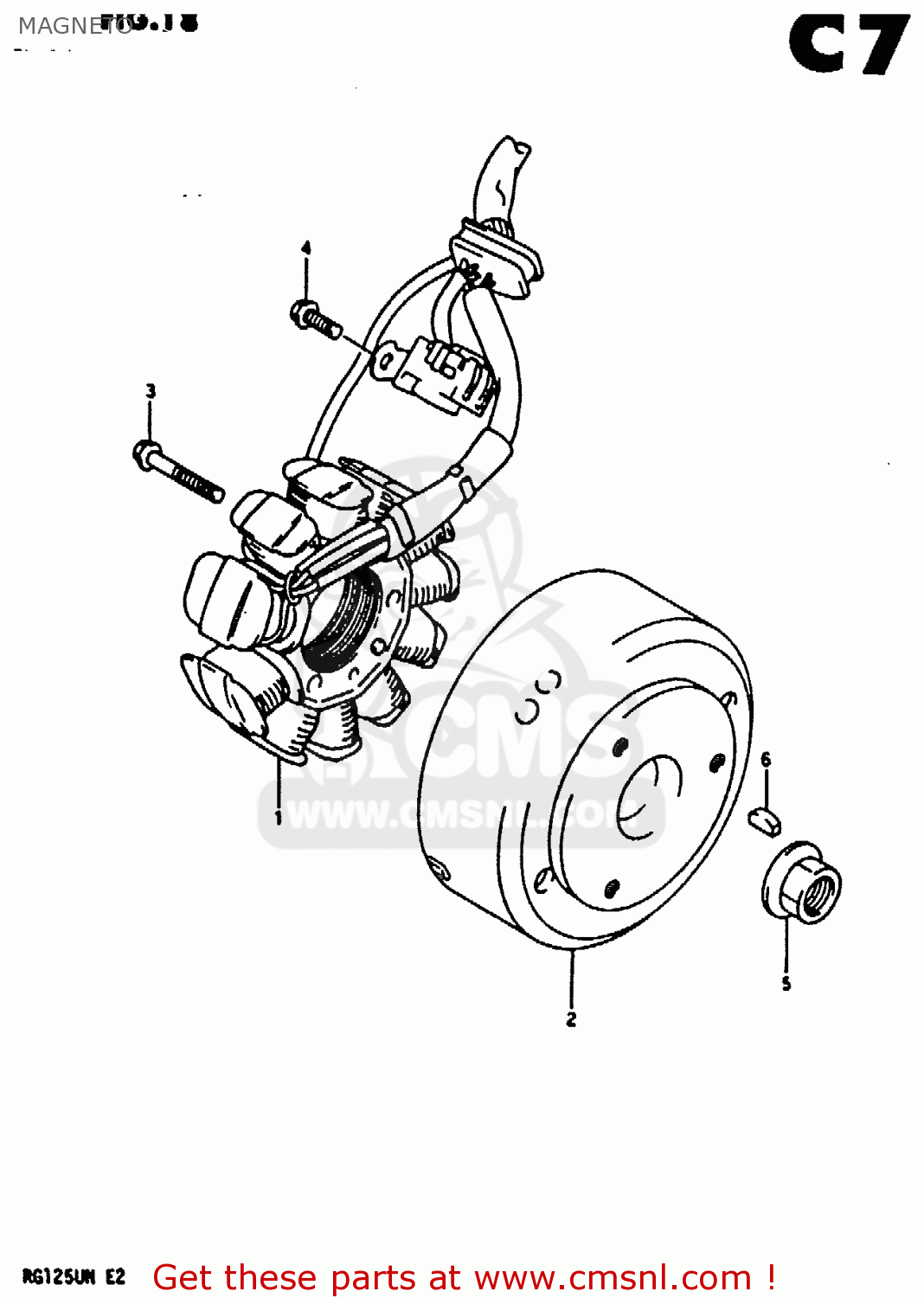

Magneto diagram RG125U 1992 (N) (E02 E04)

MAGNETO RG125U 1992 (N) (E02 E04)

MAGNETO RG125U 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1

3210119D00
ref: 1

STARTER ASSY

€ 480.50

2

3210219D00
ref: 2

ROTOR, FLYWHEEL

€ 371.00

3

0154705307
ref: 3

BOLT

€ 2.00

4

0154705128
ref: 4

BOLT

€ 2.00

5

0831616128
ref: 5

NUT

€ 2.50

6

0834131039
ref: 6

KEY

€ 2.00
