STARTER CLUTCH

RG125U 1992 (N) (E02 E04)

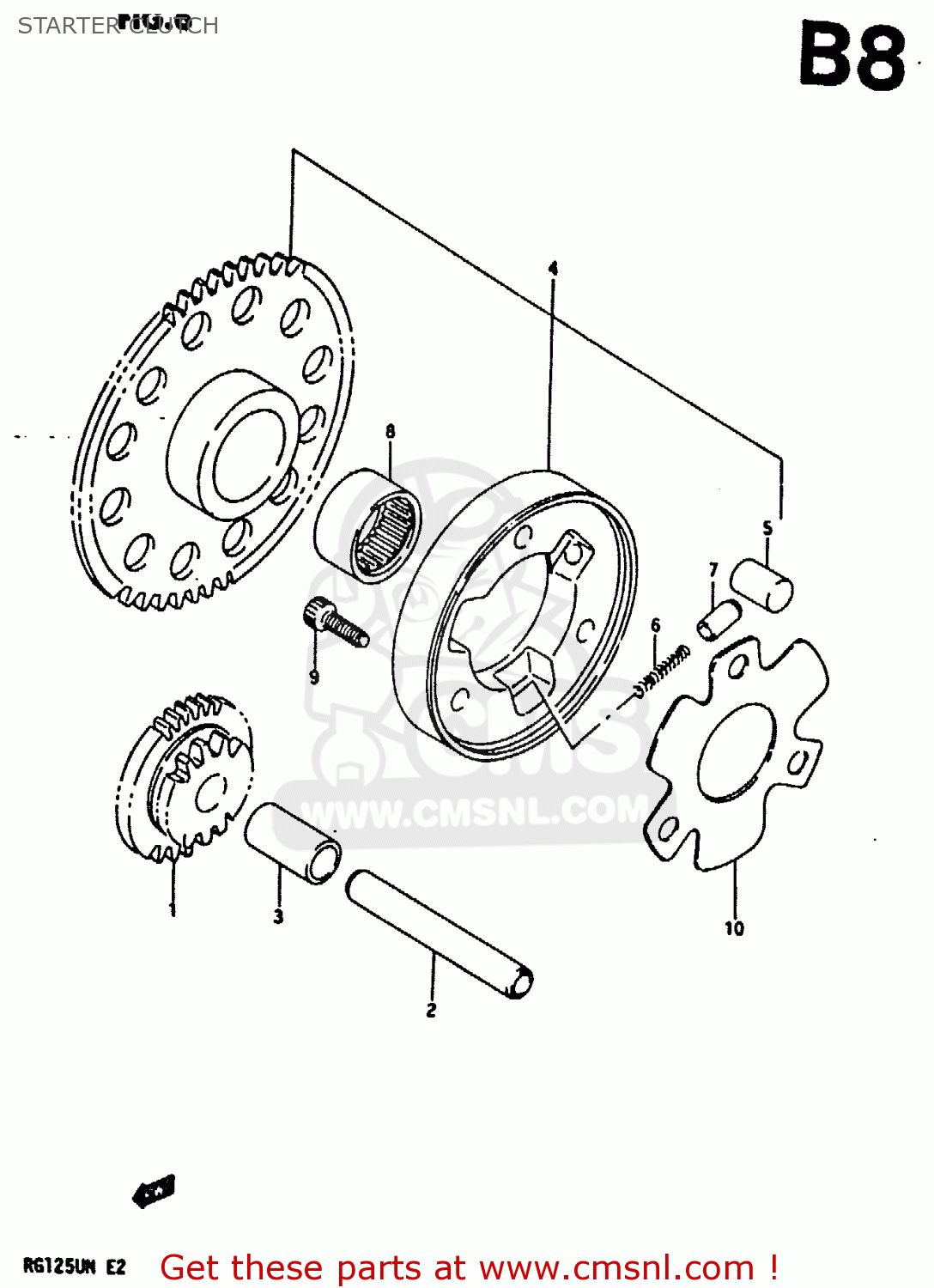

Starter clutch diagram RG125U 1992 (N) (E02 E04)

STARTER CLUTCH RG125U 1992 (N) (E02 E04)

STARTER CLUTCH RG125U 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1

1261119D00
ref: 1

GEAR, STARTER IDLE

€ 49.00

2

0920610013
ref: 2

PIN

€ 0.00

3

0918010131
ref: 3

SPACER

€ 4.00

4

1260019830
ref: 4

CLUTCH SET, STARTER

€ 183.50

5

0926110003
ref: 5

ROLLER(10X11)

€ 2.50

6

0944003004
ref: 6

SPRING

€ 1.00

7

1263305300
ref: 7

PIECE,STARTER CLUTCH PUSH

€ 6.50

8

0926322031
ref: 8

BEARING(22X28X16)

€ 18.00

9

0711006166
ref: 9

BOLT

€ 2.50

10

1264905300
ref: 10

SHIM,STARTER CLUTCH HUB

€ 5.50
