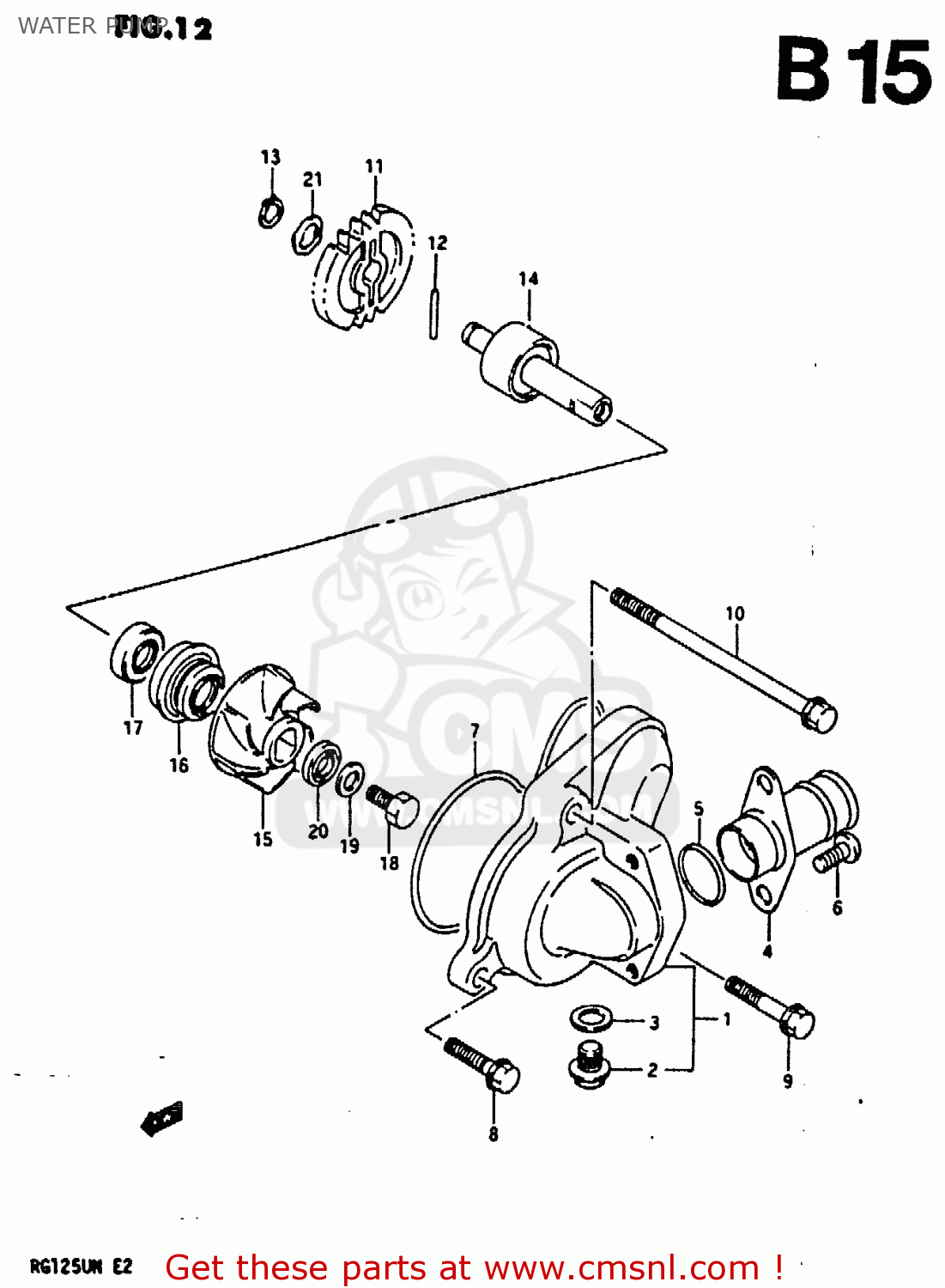

WATER PUMP

ref

part #

description

quantity

1

1741019D00
ref: 1

CASE, WATER PUMP

€ 76.50

2

1741520920
ref: 2

BOLT,DRAIN

€ 5.00

3

0916808008
ref: 3

GASKET 8.2X14X1 (NAS)

€ 1.00

4

1742119010
ref: 4

CONNECTOR, WATER INLET

€ 0.00

5

0928019001
ref: 5

O RING(D:1.9,ID:18.8)

€ 1.50

6

0211206104
ref: 6

SCREW

€ 1.50

7

1743503D00
ref: 7

O RING,WATER PUMP CASE

€ 7.50

8

0154706207
ref: 8

BOLT

€ 2.50

9

0154706257
ref: 9

BOLT

€ 2.50

10

0154706807
ref: 10

BOLT

€ 3.50

11

1746103D00
ref: 11

GEAR,WATER PUMP DRIVEN

€ 27.50

12

0926102001
ref: 12

PIN(2.5X19.8)

€ 1.50

13

0833131106
ref: 13

CIRCLIP,10MM

€ 2.00

14

1751003D00
ref: 14

SHAFT,WATER PUMP

€ 88.00

15

1749104700
ref: 15

IMPELLER,WATER PUMP

€ 13.50

16

1747046A00
ref: 16

SEAL,MECHANICAL

€ 21.50

17

0928310005
ref: 17

SEAL,OIL(10X20X5)

€ 4.50

18

0910006099
ref: 18

BOLT(6X13)

€ 2.00

19

0916406006
ref: 19

WASHER

€ 2.50

20

0916806025
ref: 20

GASKET(6X15X2.2) (NAS)

€ 3.00

21

0916410009
ref: 21

WASHER

€ 2.50
