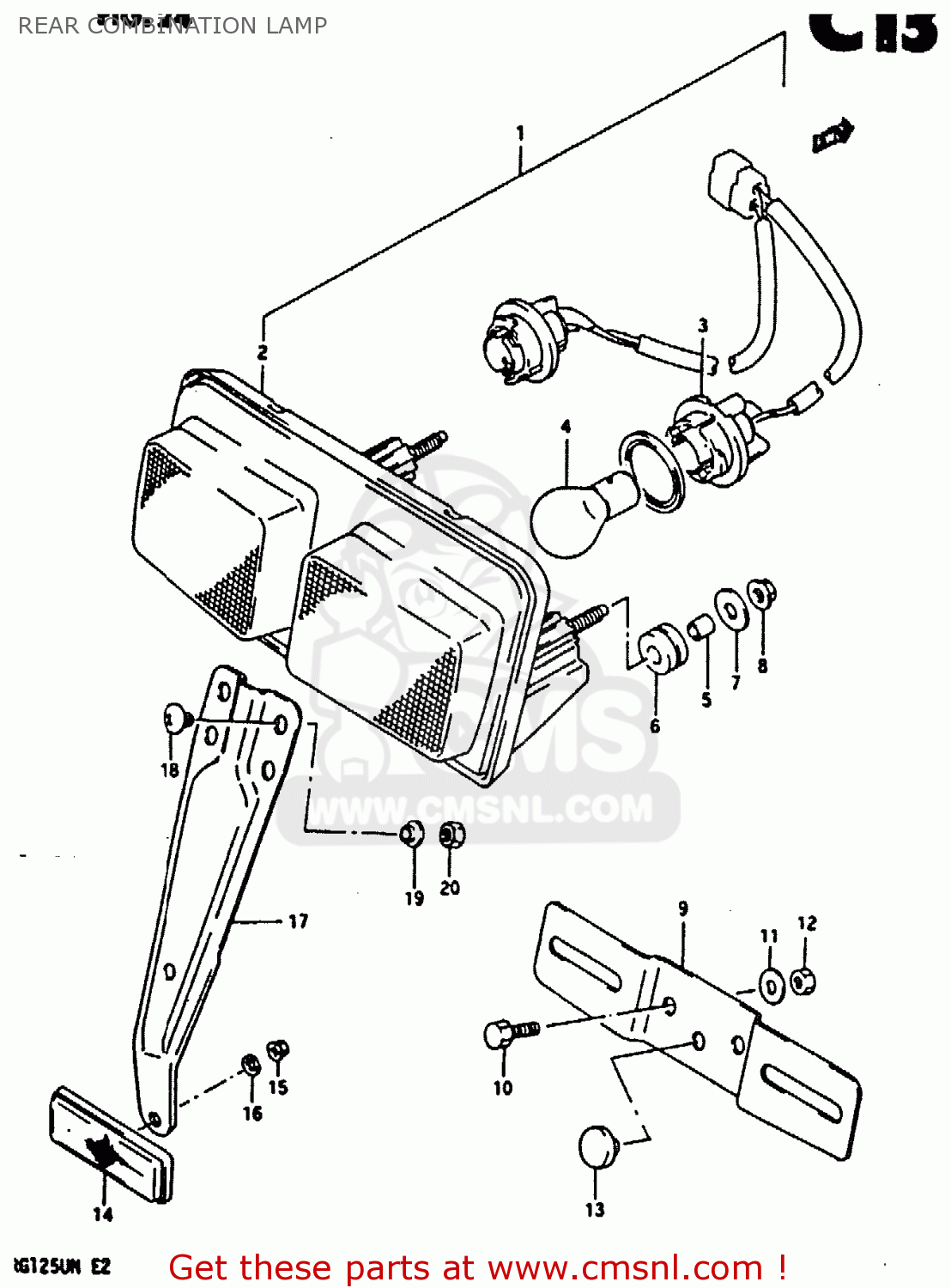

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571022D00
ref: 1

LAMP ASSY,RR C

€ 86.00

2

3574022D00
ref: 2

LAMP UNIT

€ 45.50

3

3571822D00
ref: 3

SOCKET,RR COMB

€ 24.00

4

0947112083
ref: 4

BULB(12V21/5W)

€ 6.00

5

0918006044
ref: 5

SPACER (6.1X8X9.5)

€ 2.50

6

0932008048
ref: 6

CUSHION

€ 3.00

7

0916006056
ref: 7

WASHER(6.5X18X1)

€ 2.00

8

0831616064
ref: 8

NUT 6MM

€ 2.50

9

3592744110
ref: 9

PLATE,RR LICENSE

€ 22.50

10

0111706165
ref: 10

BOLT

€ 2.50

11

0916006059
ref: 11

WASHER,COVER,FRONT

€ 2.00

12

0831626066
ref: 12

NUT

€ 2.00

13

0932006013
ref: 13

CUSHION

€ 4.00

14-1

3597014A10
ref: 14-1

REFLEX REFLECTOR,RR

€ 12.00

14-2

3597000A21
ref: 14-2
E4

REFLECTOR ASSEMBLY,REAR

€ 22.00

15

0831011056
ref: 15

NUT

€ 2.50

16

0832211056
ref: 16

WASHER

€ 2.00

17

3597448511
ref: 17

BRACKET,RR REFLEX REFLECTOR

€ 4.50

18

0214216165
ref: 18

SCREW, BRACKET

€ 2.00

19

0916906031
ref: 19

WASHER

€ 2.00

20

0831012066
ref: 20

NUT

€ 2.00
