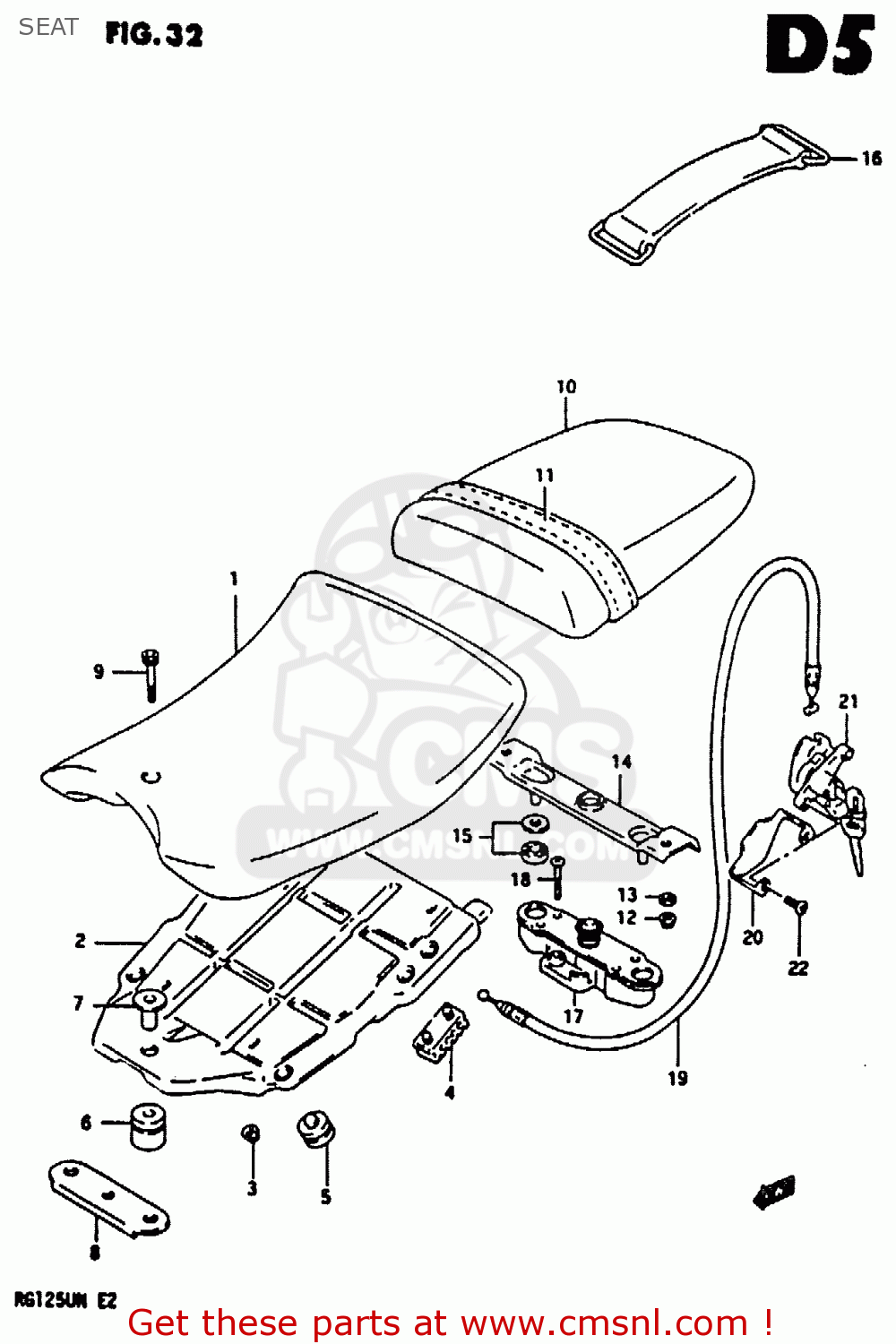

SEAT

ref

part #

description

quantity

1

4510019D0058R
ref: 1

SEAT ASSY (BLACK)

€ 186.50

2

4511119D00
ref: 2

FRAME, SEAT BOTTOM

€ 0.00

3

0831626046
ref: 3

NUT

€ 2.50

4

4514919D00
ref: 4

CUSHION,SIDE

€ 6.00

5

0932110011
ref: 5

CUSHION

€ 3.00

5

0932110011
ref: 5

CUSHION

€ 3.00

6

4514922D00
ref: 6

CUSHION,SEAT

€ 5.00

7

4521922D00
ref: 7

COLLAR,FR

€ 6.00

8

4511922D00
ref: 8

PLATE,SEAT FR

€ 23.50

9

0910606065
ref: 9

BOLT

€ 3.50

10

4530019D006BY
ref: 10

SEAT ASSY, PILLION (BLACK)

€ 141.50

11

4518019D006BY
ref: 11

BAND, SEAT (BLACK)

€ 0.00

12

0831626066
ref: 12

NUT

€ 2.00

13

0821106201
ref: 13

WASHER

€ 2.00

14

4521022D01
ref: 14

STRIKER,SEAT LOCK

€ 31.00

15

4521331300
ref: 15

CUSHION

€ 1.50

16

0946200072
ref: 16

BAND

€ 3.50

17

4522013601
ref: 17

LOCK ASSY,SEAT STRIKER

€ 47.00

18

0211206306
ref: 18

SCREW,6X30

€ 2.50

19

4528001A00
ref: 19

CABLE,SEAT LOCK CABLE

€ 10.50

20

4528945D00
ref: 20

PLATE,SEAT LOCK GUARD

€ 10.50

21

9570010833
ref: 21

LOCK SET,SEAT & HELMET

€ 99.50

22

0913906064
ref: 22

SCREW

€ 2.50

all assemblies
