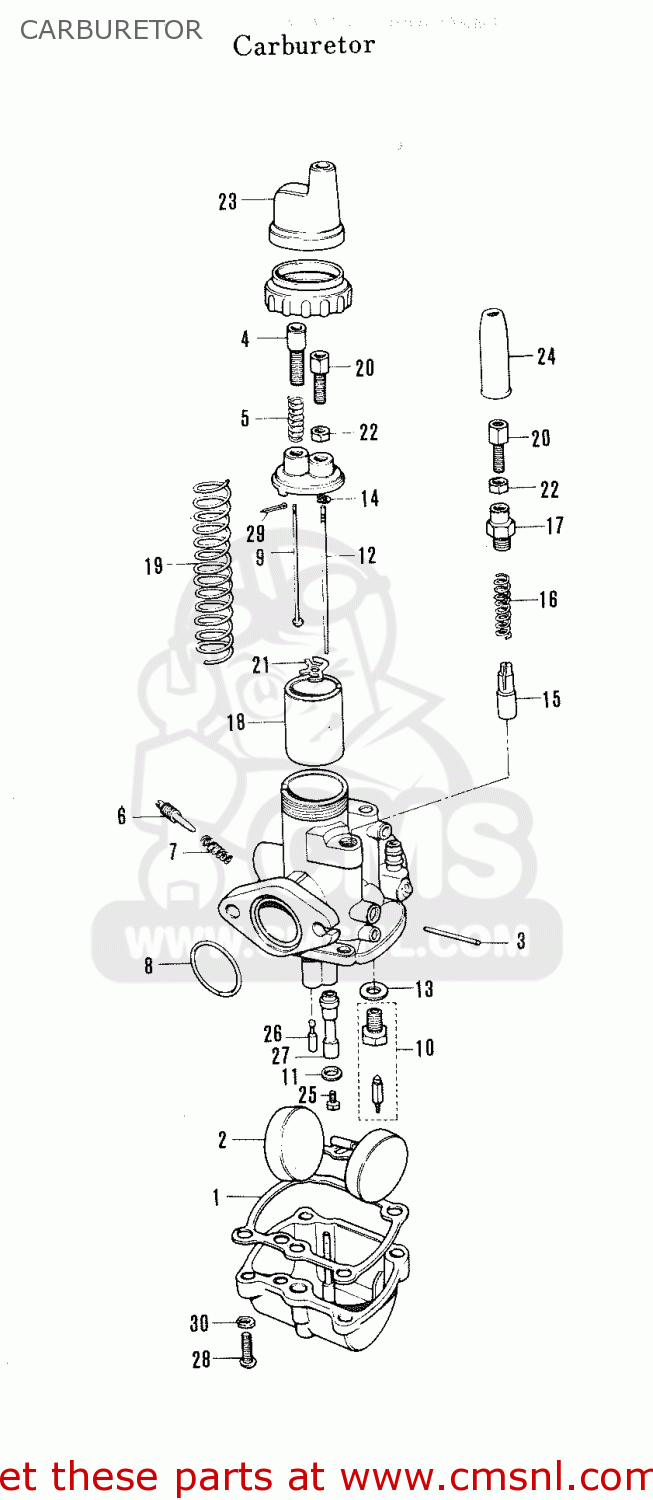

CARBURETOR

ref

part #

description

quantity

0

1320020601
ref: 0

CARBURETOR ASSEMBLY

€ 61.50

1

1325109211
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

2

1325209210
ref: 2

FLOAT

€ 23.00

3

1325401010
ref: 3

PIN,FLOAT

€ 3.00

4

1326709210
ref: 4

SCREW,THROTTLE VALVE ADJUST

€ 4.50

5

1326803110
ref: 5

SPRING,THROTTLE SCREW

€ 3.50

6

1326901010
ref: 6

SCREW,PILOT AIR

€ 14.50

7

1327101010
ref: 7

SPRING

€ 3.50

8

1329509210
ref: 8

O RING,OUTLET

€ 3.00

9

1329609210
ref: 9

ROD,THROTTLE VALVE ADJUST

€ 6.50

10

1337009211
ref: 10

VALVE ASSY,NEEDLE

€ 55.00

11

1338203110
ref: 11

WASHER

€ 2.50

12

1338320600
ref: 12

NEEDLE JET

€ 6.00

13

1339201010
ref: 13

GASKET,NEEDLE VALVE (NAS)

€ 2.50

14

1339410010
ref: 14

CLIP

€ 4.50

15

1341108010
ref: 15

PLUNGER,STARTER

€ 7.50

16

1341707010
ref: 16

SPRING

€ 3.50

17

1341803110
ref: 17

CAP,STARTER PLUNGER

€ 6.50

18

1355110010
ref: 18

VALVE,THROTTLE

€ 36.00

19

1357309210
ref: 19

SPRING,THROTTLE VALVE

€ 3.00

20

1357703010
ref: 20

ADJUSTER,CABLE

€ 8.00

21

1358110010
ref: 21

PLATE,THROTTLE VALVE

€ 4.00

22

1366103010
ref: 22

NUT

€ 3.50

23

1368109210
ref: 23

BOOT

€ 4.00

24

1368202010
ref: 24

CAP,STARTER PLUNGER

€ 3.50

25

0949120001
ref: 25

JET,MAIN(100)

€ 4.50

25

0949195001
ref: 25

JET,MAIN (95)

€ 11.50

25

0949122001
ref: 25

MAIN JET (110)

€ 0.00

25

0949124001
ref: 25

JET,MAIN (120)

€ 5.50

25

0949126002
ref: 25

JET MAIN (130)

€ 2.50

26

0949225002
ref: 26

JET

€ 8.50

27

0949400030
ref: 27

JET,NEEDLE

€ 0.00

28

0211104188
ref: 28

SCREW

€ 1.00

29

0411112068
ref: 29

COTTER PIN

€ 2.00

30

0832121048
ref: 30

LOCK WASHER

€ 2.00
