KICK STARTER

TC120 CAT 1969 GENERAL EXPORT (E01) MPH

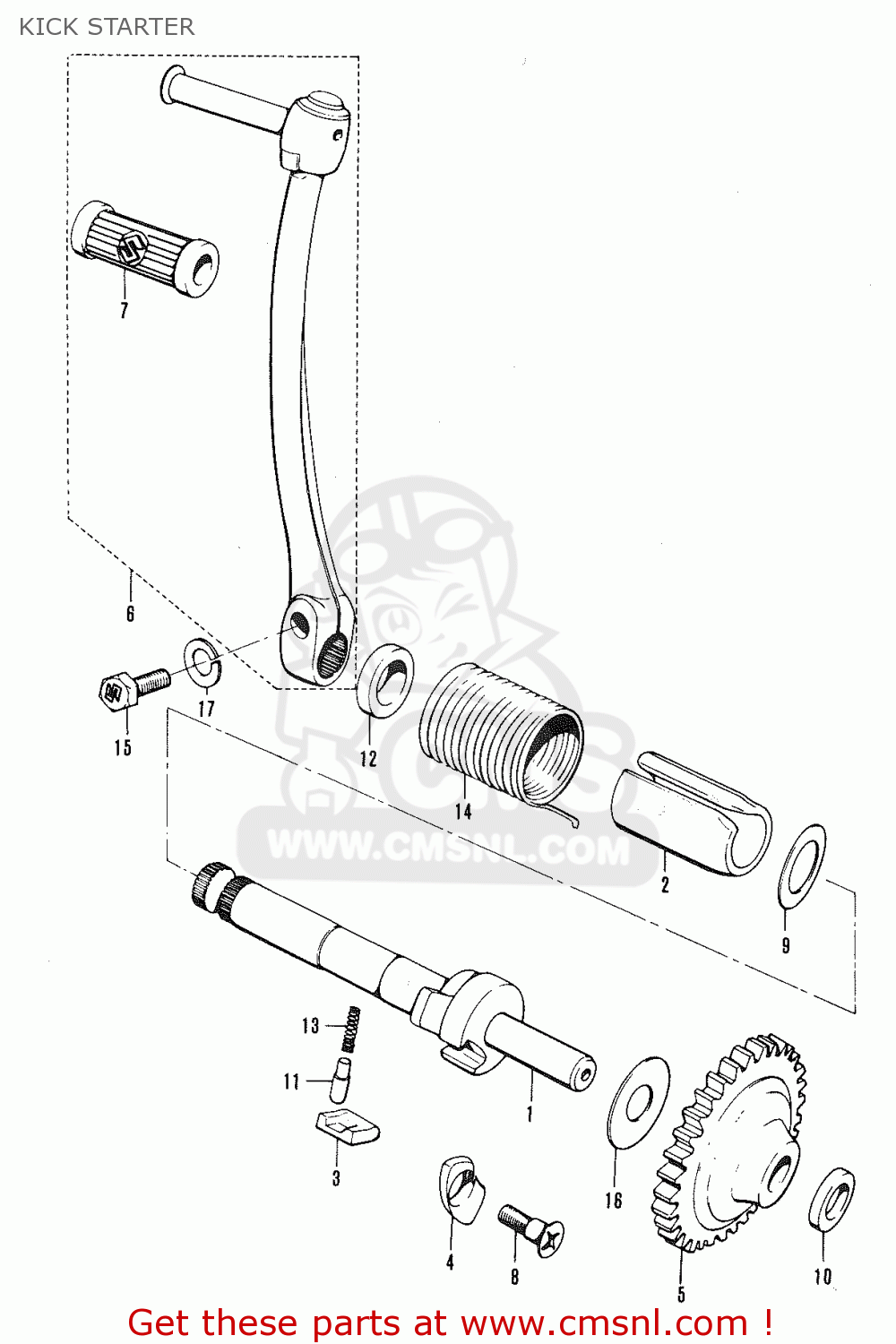

Kick starter diagram TC120 CAT 1969 GENERAL EXPORT (E01) MPH

prices are in EUR

ref

part #

description

quantity

2621107000
ref: 1

SHAFT,KICK STARTER

€ 34.50

2622108030
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 6.50

2623108001
ref: 3

STARTER,KICK

€ 13.50

2623201000
ref: 4

LIFTER,KICK STARTER PAWL

€ 8.00

2624103000
ref: 5

GEAR,KICK STARTER DRIVE

€ 33.00

2630008000
ref: 6

LEVER ASSEMBLY,KICK STARTER

€ 93.00

2635201000
ref: 7

RUBBER,KICK STARTER PEDAL

€ 3.50

0913906002
ref: 8

SCREW(6X19)

€ 2.50

0916016003
ref: 9

WASHER(16X30X1)

€ 2.50

0918012010
ref: 10

SPACER

€ 0.00

0920905011
ref: 11

PIN(5X15.5)

€ 2.00

0928516002
ref: 12

SEAL,OIL(16X30X8)

€ 6.50

0944004010
ref: 13

SPRING

€ 1.50

0944837005
ref: 14

SPRING

€ 4.50

0112208258
ref: 15

BOLT

€ 2.50

0821112302
ref: 16

WASHER

€ 2.50

0832121088
ref: 17

LOCK WASHER

€ 2.00
