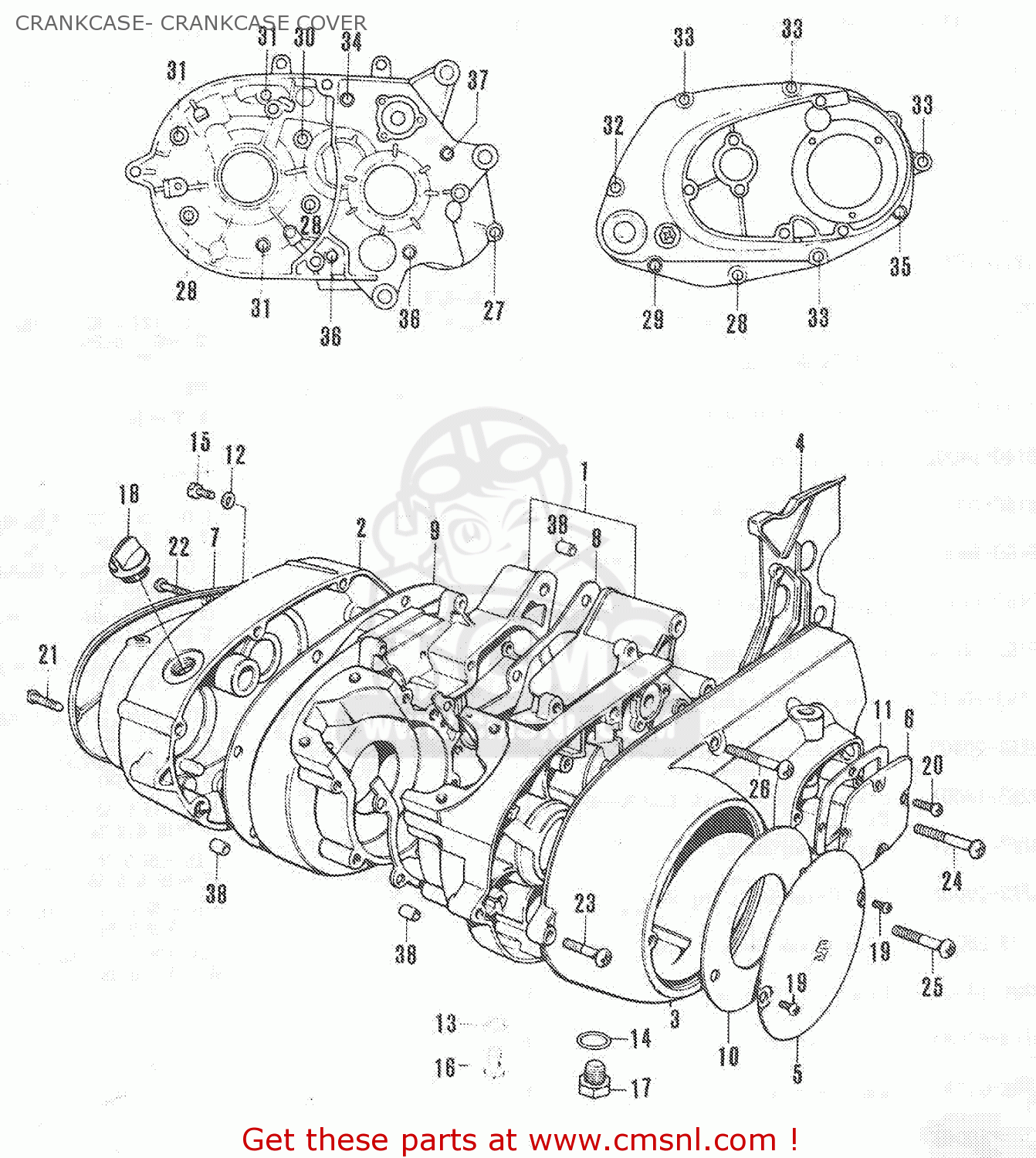

CRANKCASE- CRANKCASE COVER

ref

part #

description

quantity

1

1130107835
ref: 1
INCLUDES 09319-15002

CRANKCASE SET

€ 275.00

2

1134107612
ref: 2

COVER,CLUTCH

€ 75.00

3

1135107402
ref: 3

COVER,MAGNETO

€ 0.00

4

1137107000
ref: 4

COVER

€ 29.50

5

1138107000
ref: 5

CAP,MAGNETO INSPECTION

€ 24.50

6

1138807401
ref: 6

DUCT,BELT COOLING,FRONT

€ 8.00

7

1141107201
ref: 7

COVER,OIL PUMP

€ 57.50

8

1148107000
ref: 8

GASKET,CRANKCASE (MCA)

€ 10.50

9

1148207000
ref: 9

GASKET,CLUTCH COVER (MCA)

€ 10.50

10

1149107000
ref: 10

GASKET,OIL PAN

€ 2.00

11

1149807402
ref: 11

GROMMET,STARTING MOTOR

€ 0.00

12

0916806001
ref: 12

GASKET(6.2X11X1) (NAS)

€ 1.50

13

0916810002
ref: 13

GASKET(10X14X3.6) (NAS)

€ 2.00

14

0916814004
ref: 14

GASKET(14X19.2X2) (NAS)

€ 2.50

15

0924706001
ref: 15

PLUG

€ 1.50

16

0924710001
ref: 16

PLUG

€ 3.00

17

0924714001
ref: 17

PLUG

€ 5.00

18

0925920003
ref: 18

PLUG,OIL FILTER

€ 8.00

19

0211105088
ref: 19

CROSS HEAD SCREW

€ 2.00

20

0211105108
ref: 20

SCREW

€ 2.00

21

0211105168
ref: 21

SCREW

€ 2.50

22

0211105208
ref: 22

SCREW

€ 3.00

23

0211106258
ref: 23

SCREW

€ 2.00

24

0211106458
ref: 24

SCREW

€ 2.00

25

0211106508
ref: 25

CROSS HEAD SCREW

€ 2.50

26

0211106558
ref: 26

SCREW

€ 2.50

27

0211206208
ref: 27

SCREW

€ 2.00

28

0211206258
ref: 28

SCREW

€ 2.00

29

0211206358
ref: 29

SCREW (6X35)

€ 2.50

30

0211206458
ref: 30

SCREW (6X45)

€ 2.00

31

0211206508
ref: 31

SCREW

€ 2.50

32

0211206608
ref: 32

SCREW 6X60

€ 2.50

33

0211206658
ref: 33

SCREW 6X65

€ 2.00

34

0211206708
ref: 34

SCREW 6X70

€ 3.00

35

0211206758
ref: 35

CROSS SCREW (6 X 75)

€ 3.00

36

0211206808
ref: 36

SCREW 6X80

€ 3.00

37

0211206858
ref: 37

SCREW 6X85

€ 2.50

38

0421109129
ref: 38

PIN

€ 2.00

all assemblies
