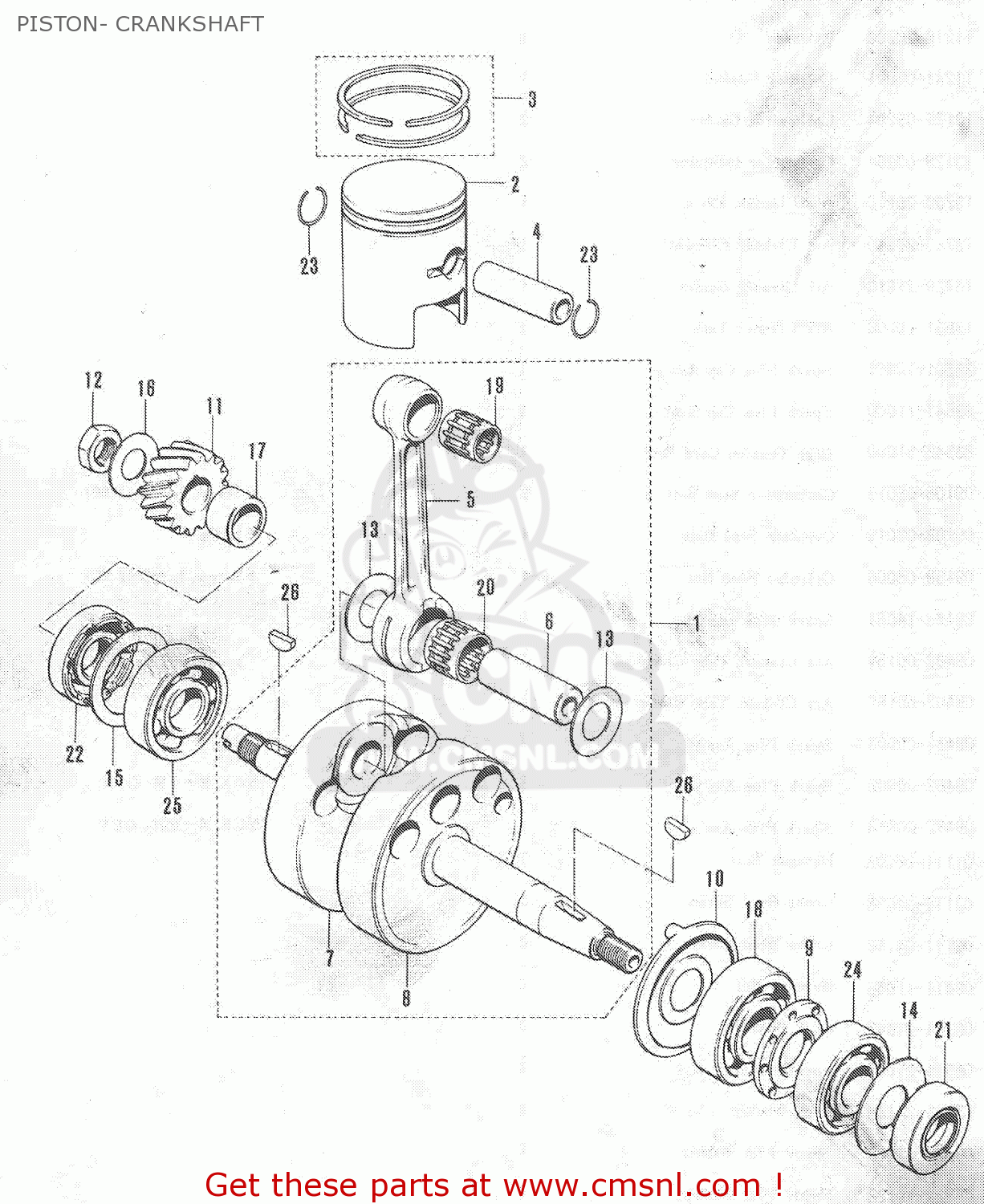

PISTON- CRANKSHAFT

ref

part #

description

quantity

1

1200107817
ref: 1

CRANKSHAFT SET

€ 165.50

2

1211020200
ref: 2

PISTON

€ 41.50

2

1211020720
ref: 2
O.S. 0.5, OPT

PISTON

€ 78.50

2

1211020730
ref: 2
O.S. 1.0, OPT

PISTON

€ 74.50

3

1214020210
ref: 3

RING SET,PISTON

€ 37.00

3

1214020720
ref: 3
O.S. 0.5, OPT

RING SET,PISTON

€ 13.50

3

1214020730
ref: 3
O.S. 1.0, OPT

RING SET,PISTON

€ 34.00

4

1215107000
ref: 4

PIN,PISTON 14MM

€ 10.00

5

1216107200
ref: 5

CONNECTING ROD

€ 83.50

6

1221108200
ref: 6

PIN,CRANK

€ 36.50

7

1222107200
ref: 7

CRANKSHAFT

€ 71.00

8

1226107201
ref: 8

CRANKSHAFT,LEFT

€ 66.00

9

1235307002
ref: 9

SPACER

€ 3.00

10

1251107200
ref: 10

PLATE,CSHAFT OIL GUIDE

€ 4.50

11

2111107000
ref: 11
N.T.=16

GEAR,PRIMARY DRIVE

€ 20.00

12

0914014002
ref: 12
14 SCREW

NUT

€ 4.00

13

0916020010
ref: 13

WASHER (20X34X1)

€ 4.50

14

0916034001
ref: 14

WASHER(34X47X1)

€ 2.50

15

0916041001
ref: 15

WASHER(41X52X1)

€ 2.00

16

0916614004
ref: 16

WASHER

€ 3.00

17

0918020015
ref: 17

SPACER(20X26X14)

€ 4.50

18

0926220003
ref: 18

BEARING(20X52X15)

€ 27.00

19

0926314001
ref: 19

BEARING

€ 10.00

20

0926320001
ref: 20

BEARING

€ 18.00

21

0928320008
ref: 21

SEAL,OIL(20X40X9)

€ 6.50

22

0928326002
ref: 22

SEAL,OIL(26X47X9)

€ 7.00

23

0938114001
ref: 23

RING,SNAP 14MM

€ 1.50

24

0811362040
ref: 24

Bearing

€ 28.00

25

0811363040
ref: 25

BEARING

€ 19.00

26

0834131049
ref: 26

KEY 4MM

€ 3.50
