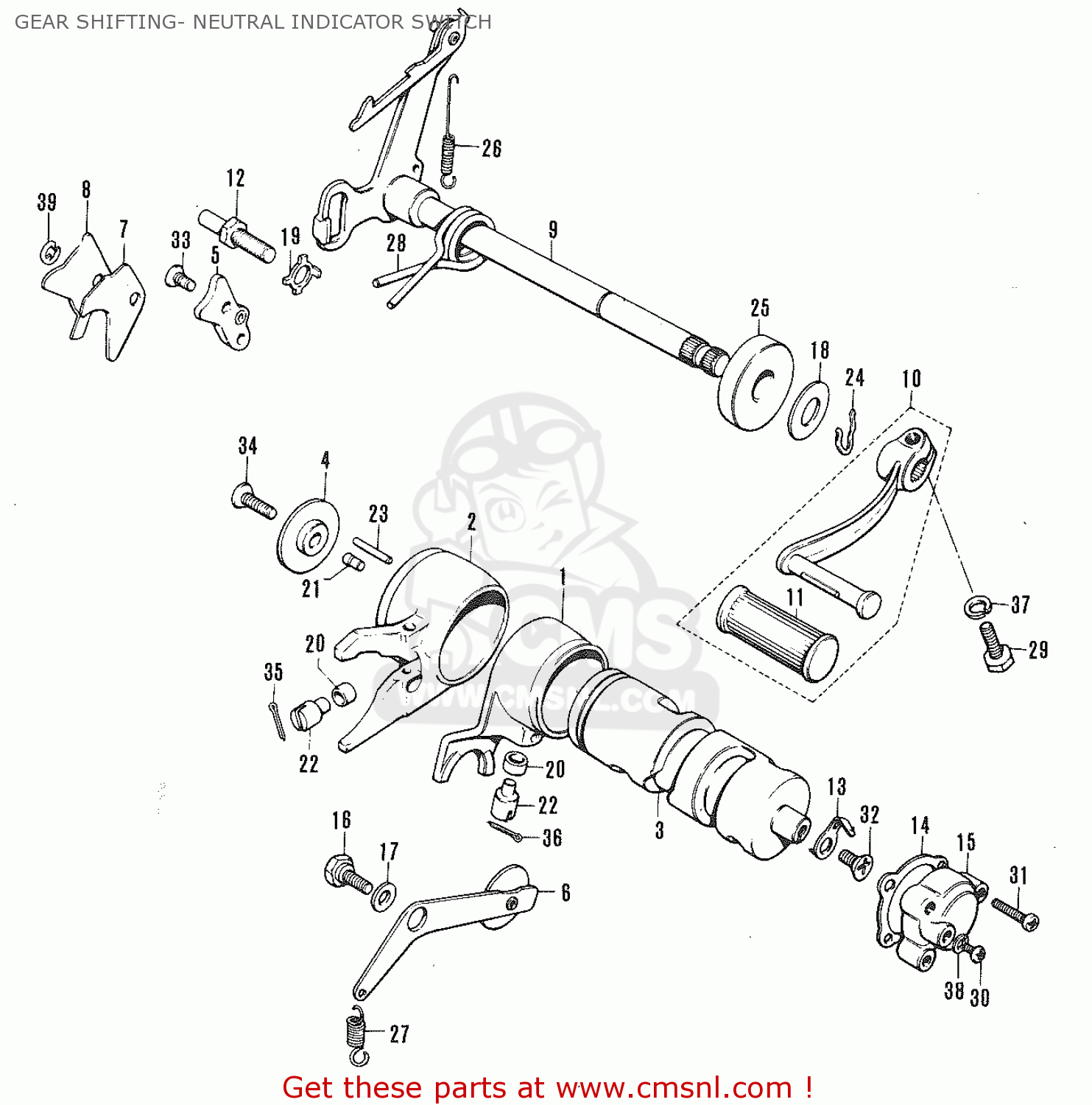

GEAR SHIFTING- NEUTRAL INDICATOR SWITCH

ref

part #

description

quantity

1

2521107401
ref: 1

FORK,GEAR SHIFT NO.1

€ 14.50

2

2522107400
ref: 2

FORK,GEAR SHIFT NO.2

€ 21.00

3

2531107400
ref: 3

CAM,GEAR SHIFT

€ 23.50

4

2532203000
ref: 4

HOLDER,GEAR SHIFTING C

€ 5.50

5

2534007400
ref: 5

GUIDE,GEAR SHIFTING CABLE

€ 3.00

6

2535007000
ref: 6

STOPPER,GEAR SHIFT CAM

€ 6.00

7

2537107400
ref: 7

GEAR SHIFTING CAM STOPPER POWL (A)

€ 0.00

8

2537207400
ref: 8

GEAR SHIFTING CAM STOPPER PAWL

€ 0.00

9

2551007400
ref: 9

SHAFT,GEAR SHIFT

€ 0.00

10

2560007400
ref: 10

LEVER ASSEMBLY,GEAR SHIFTING

€ 24.50

11

2565203201
ref: 11

RUBBER,GEAR SHIFT PEDAL

€ 15.00

12

2567119000
ref: 12

STOPPER,GEAR SHIFT ARM

€ 5.50

13

3771101000
ref: 13

NEUTRAL INDICATOR SWITCH CONTACT

€ 4.00

14

3771201000
ref: 14

GASKET,GEAR SHIFT SWITCH (NAS)

€ 2.00

15

3772105100
ref: 15

SWITCH,NEUTRAL INDICATOR

€ 10.50

16

0911106003
ref: 16

BOLT(6X16.1)

€ 1.50

17

0916006008
ref: 17

WASHER (6.5X13X1)

€ 1.00

18

0916012020
ref: 18

WASHER (12.5X27X1.6)

€ 2.00

19

0916710001
ref: 19

WASHER

€ 1.00

20

0918006004
ref: 20

SPACER

€ 2.50

21

0920104002
ref: 21

PIN

€ 2.50

22

0920910002
ref: 22

PIN

€ 8.50

23

0926104003
ref: 23

PIN(4X20)

€ 2.00

24

0938412001
ref: 24

SPRING,RETAINER

€ 2.00

25

0928512001
ref: 25

OIL SEAL

€ 7.00

26

0944306008
ref: 26

SPRING

€ 2.00

27

0944307005
ref: 27

SPRING

€ 1.50

28

0944426003
ref: 28

SPRING

€ 4.50

29

0111206208
ref: 29

BOLT

€ 2.00

30

0211103048
ref: 30

SCREW

€ 2.00

31

0211104168
ref: 31

SCREW

€ 1.00

32

0212106128
ref: 32

SCREW

€ 3.00

33

0212106168
ref: 33

SCREW

€ 2.00

34

0212106208
ref: 34

CROSS HEAD SCREW

€ 2.00

35

0411125258
ref: 35

COTTER PIN

€ 1.50

36

0411125208
ref: 36

PIN 25X20

€ 2.00

37

0832121068
ref: 37

LOCK WASHER

€ 2.50

38

0832221038
ref: 38

WASHER

€ 2.00

39

0833211059
ref: 39

E RING

€ 1.50
