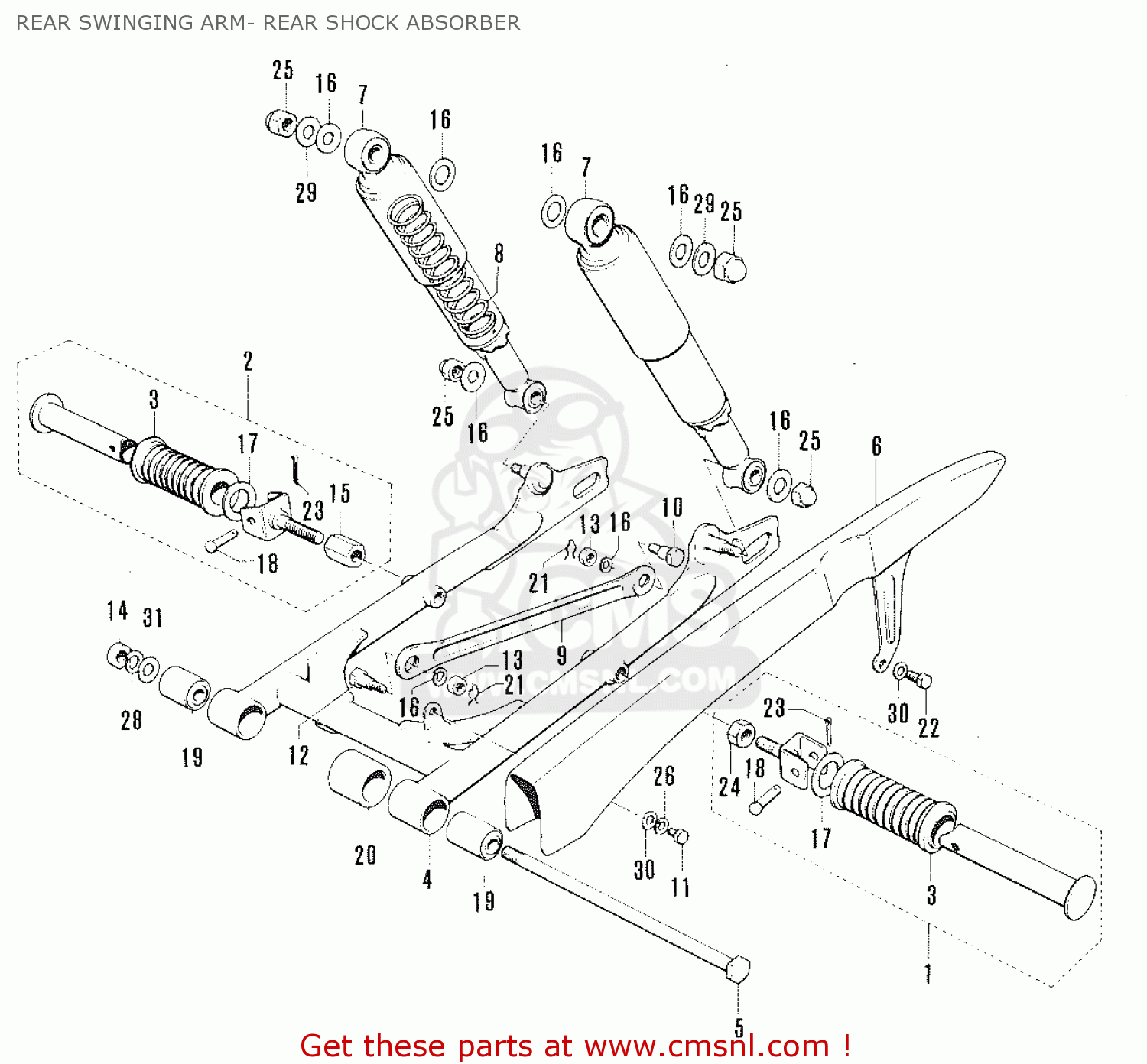

REAR SWINGING ARM- REAR SHOCK ABSORBER

ref

part #

description

quantity

1

4360003001
ref: 1

FOOTREST ASSEMBLY,REAR

€ 21.00

2

4360020000
ref: 2

FOOTREST ASSEMBLY,PILLION

€ 8.00

3

4361203001
ref: 3

RUBBER,PILLION FOOTREST

€ 3.50

4

6110020811019
ref: 4

SWING ARM ASSEMBLY,REAR

€ 0.00

5

6121107002
ref: 5

SHAFT,REAR SWING ARM

€ 9.00

6

6131020200126
ref: 6

CHAIN CASE

€ 0.00

7

6210020010019
ref: 7

ABSORBER ASSEMBLY,REAR SHOCK

€ 38.50

8

6221112600
ref: 8

SPRING

€ 0.00

9

6431020100
ref: 9

TORQUE LINK,REAR

€ 10.50

10

6433101000
ref: 10

BOLT,REAR TORGUE LINK,REAR

€ 3.00

11

0910006007
ref: 11

BOLT

€ 2.50

12

0911908012
ref: 12

BOLT, REAR TORQUE LINK

€ 3.00

13

0914008008
ref: 13

NUT

€ 1.50

14

0914010001
ref: 14

NUT

€ 2.50

15

0915910003
ref: 15

NUT

€ 2.00

16

0916010001
ref: 16

WASHER

€ 2.00

17

0916019006
ref: 17

WASHER (19.5X32X2)

€ 2.00

18

0920006010
ref: 18

PIN

€ 2.50

19

0931910009
ref: 19

BUSHING(10X23X35)

€ 7.50

20

0932020003
ref: 20

CUSHION

€ 0.00

21

0938406001
ref: 21

RETAINER,SNAP

€ 2.50

22

0111106108
ref: 22

HEXAGON BOLT

€ 2.00

23

0411120188
ref: 23

PIN

€ 1.50

24

0831231108
ref: 24

NUT

€ 2.50

25

0831311107
ref: 25

NUT

€ 2.50

26

0832121068
ref: 26

LOCK WASHER

€ 2.50

27

0832121088
ref: 27

LOCK WASHER

€ 2.00

28

0832121108
ref: 28

LOCK WASHER

€ 2.00

29

0832211128
ref: 29

WASHER

€ 2.00

30

0832221068
ref: 30

WASHER

€ 2.00

31

0832221108
ref: 31

WASHER

€ 2.50
