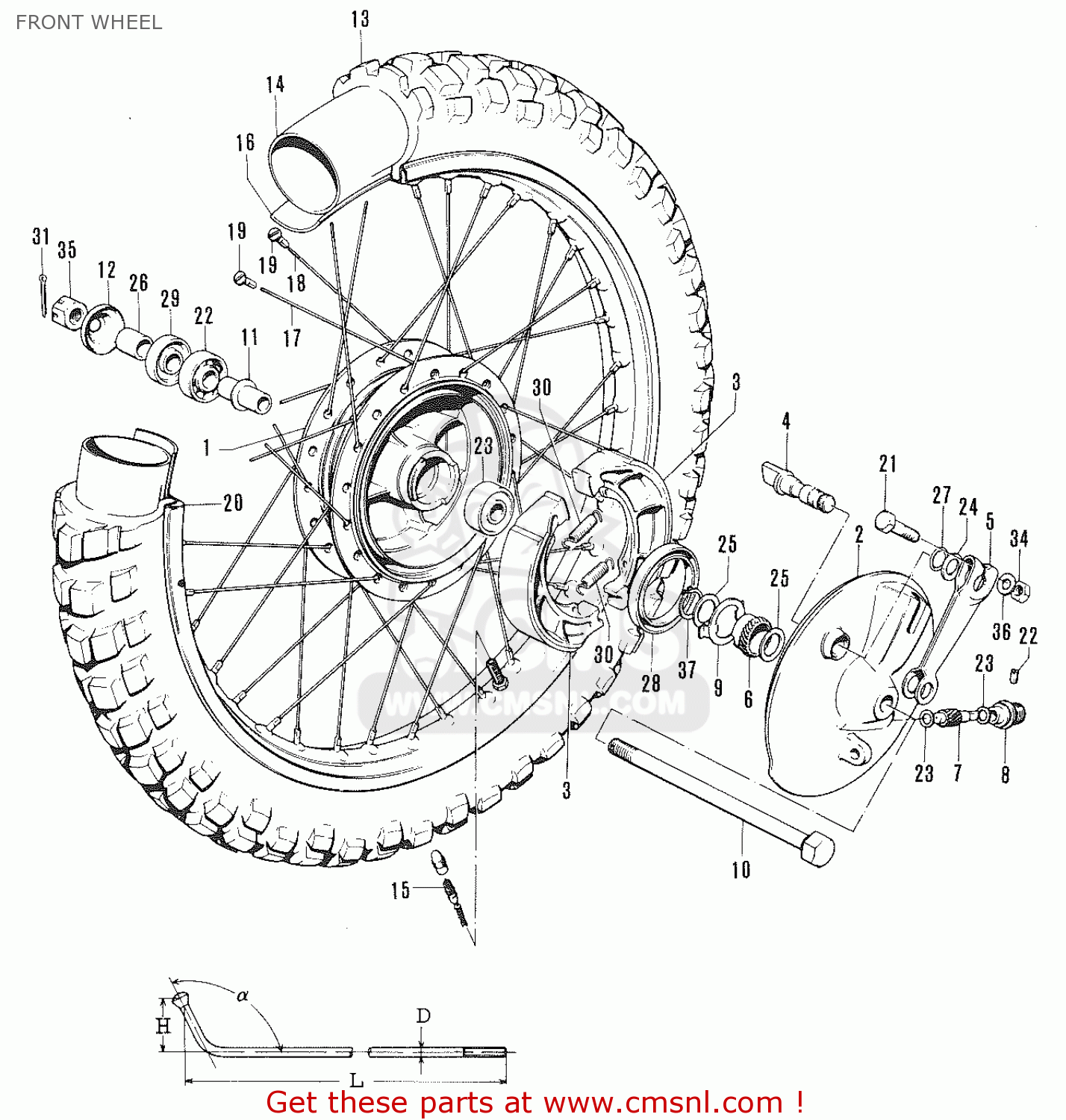

FRONT WHEEL

ref

part #

description

quantity

0

5410007620
ref: 0

HUB,FRONT

€ 0.00

1

5411007000
ref: 1

HUB,FRONT

€ 137.50

2

5421007002
ref: 2

PANEL,FRONT BRAKE ANCHOR

€ 47.50

3

5441007001
ref: 3

SHOE,BRAKE

€ 35.00

4

5444120000
ref: 4

CAM,FRONT BRAKE

€ 19.50

5

5445103001
ref: 5

LEVER,FRONT BRAKE CAM

€ 10.50

6

5461107600
ref: 6

GEAR,SPEEDOMETER

€ 16.00

7

5462103000
ref: 7

PINION,SPEEDOMETER

€ 15.50

8

5463201001
ref: 8

BUSH,METER GEAR OUTER

€ 9.00

9

5466107000
ref: 9

DRIVER,SPEEDOMETER GEAR

€ 3.00

10

5471007601
ref: 10

AXLE,FRONT

€ 0.00

11

5473007000
ref: 11

SPACER,FRONT HUB BEARING

€ 9.00

12

5489207000
ref: 12

COVER,FR HUB DUST SEAL

€ 3.50

13

5510020210
ref: 13

TIRE,FRONT

€ 0.00

14

5520011600
ref: 14

TUBE,INNER

€ 24.50

15

5525001000
ref: 15

VALVE,INNER TUBE

€ 0.00

16

5526111010
ref: 16

PROTECTOR,INNER TUBE

€ 3.50

16

5530012825
ref: 16

SPOKE SET,FRONT

€ 43.50

17

5532112120
ref: 17

SPOKE,WHEEL

€ 0.00

18

5532212120
ref: 18

SPOKE,WHEEL

€ 0.00

19

5532503020
ref: 19

NIPPLE,SPOKE

€ 0.00

20

6531120120
ref: 20

RIM,REAR WHEEL

€ 86.50

21

0910006050
ref: 21

BOLT

€ 1.50

22

0913403101
ref: 22

SCREW

€ 1.50

23

0916005001
ref: 23

WASHER (5.1X9X0.4)

€ 2.00

24

0916012011
ref: 24

WASHER(12.5X20X1)

€ 1.50

25

0916018002
ref: 25

WASHER(18.5X24X1)

€ 2.00

26

0918012007
ref: 26

SPACER(12X18X19.4)

€ 4.00

27

0928012001
ref: 27

O RING(D:2.5,ID:11.4)

€ 2.50

28

0928348001
ref: 28

OIL SEAL

€ 5.50

29

0928418001
ref: 29

OIL SEAL(17X38X5)

€ 12.50

30

0944307001
ref: 30

SPRING(L:34)

€ 2.50

31

0411130358
ref: 31

PIN

€ 1.50

32

0811363010
ref: 32

BEARING

€ 9.50

33

0814363010
ref: 33

BEARING, RH

€ 14.50

34

0831111068
ref: 34

NUT

€ 2.50

35

0831431127
ref: 35

CASTLE NUT

€ 2.00

36

0832221068
ref: 36

WASHER

€ 2.00

37

0833111189
ref: 37

CIRCLIP

€ 2.00
