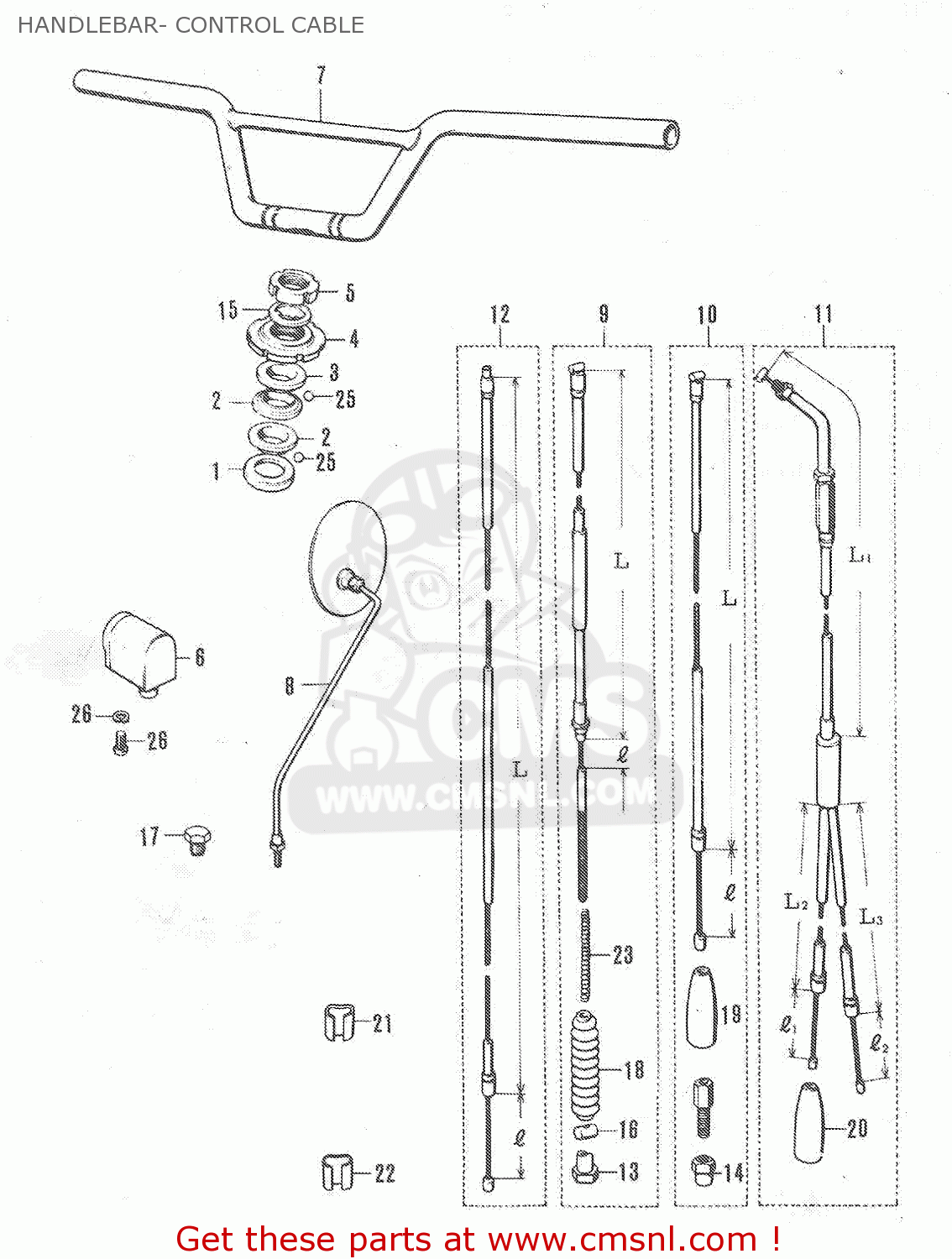

HANDLEBAR- CONTROL CABLE

ref

part #

description

quantity

1

5136103110
ref: 1

COVER,STEERING STEM

€ 0.00

2

5161108000
ref: 2

RACE,STEERING,INNER,UPPER

€ 10.50

3

5162108000
ref: 3

RACE,STEERING,OUTER,UPPER

€ 9.50

4

5163108010
ref: 4

NUT,STEERING STEM

€ 39.00

5

5163201000
ref: 5

NUT,STEERING STEM

€ 26.50

6

5190003012
ref: 6

LOCK ASSEMBLY,STEERING

€ 22.50

7

5611020200
ref: 7

HANDLEBAR

€ 43.50

8

5650019600
ref: 8

MIRROR ASSEMBLY,REAR VIEW

€ 159.50

9

5810007711
ref: 9

CABLE ASSEMBLY,FRONT BRAKE

€ 18.50

10

5820007711
ref: 10

CABLE ASSY,CLUTCH

€ 10.50

11

5830007710
ref: 11

CABLE ASSEMBLY,THROTTLE

€ 7.50

12

5841008700
ref: 12

CABLE COMP,STARTER

€ 8.50

13

0915005101
ref: 13

NUT

€ 3.00

14

0915908007
ref: 14

NUT

€ 2.00

15

0916626001
ref: 15

WASHER

€ 2.00

16

0920910001
ref: 16

PIN,10X19

€ 2.00

17

0925006001
ref: 17

CAP

€ 2.00

18

0928707001
ref: 18

SEAL,DUST(7X16X75)

€ 2.00

19

0928710002
ref: 19

DUST SEAL

€ 2.50

20

0928710003
ref: 20

DUST SEAL

€ 2.50

21

0940800001
ref: 21

CLIP

€ 2.50

22

0940800002
ref: 22

CLIP

€ 2.00

23

0944006003
ref: 23

SPRING

€ 2.00

24

0211105108
ref: 24

SCREW

€ 2.00

25

0611108004
ref: 25

STEEL BALL

€ 1.50

26

0832121058
ref: 26

LOCK WASHER

€ 2.00

all assemblies
