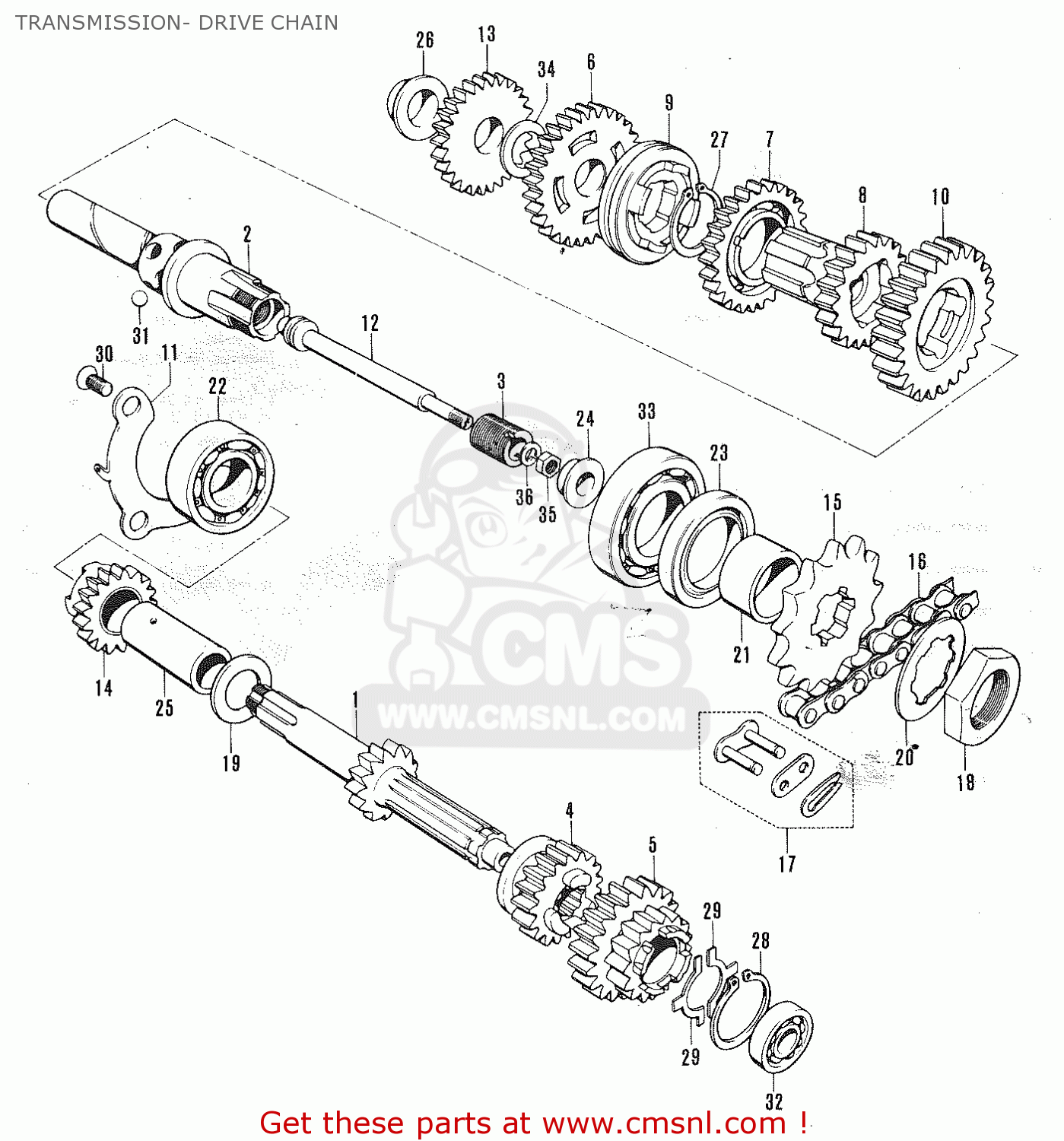

TRANSMISSION- DRIVE CHAIN

ref

part #

description

quantity

1

2412107400
ref: 1

SHAFT,COUNTER

€ 20.50

2

2413007400
ref: 2

SHAFT,DRIVE

€ 52.00

3

2413207400
ref: 3

SPACER

€ 0.00

4

2422107400
ref: 4

GEAR,SECOND DRIVE

€ 54.00

5

2423020200
ref: 5

GEAR,THIRD DRIVE

€ 35.00

6

2431007400
ref: 6

GEAR,FIRST DRIVEN

€ 18.50

7

2432107400
ref: 7

GEAR,SECOND DRIVEN

€ 29.50

8

2433020200
ref: 8

GEAR,THIRD DRIVEN

€ 23.50

9

2441107402
ref: 9

FIRST DRIVEN GEAR WHEEL

€ 0.00

10

2461120200
ref: 10

REDUCTION GEAR

€ 15.50

11

2474103000
ref: 11

PLATE,COUNTERSHAFT BEARING

€ 3.00

12

2571007400
ref: 12

REDUCTION SHIFTING ROD

€ 0.00

13

2626007401
ref: 13

GEAR,KICK STARTER IDLE

€ 14.00

14

2628007000
ref: 14

GEAR,KICK STARTER DRIVEN

€ 31.50

15

2751120200
ref: 15

SPROCKET,ENGINE

€ 25.00

16

2760020211
ref: 16

CHAIN ASSEMBLY,DRIVE

€ 128.00

17

2762020210
ref: 17

JOINT ASSEMBLY,CHAIN

€ 7.00

18

0914024004
ref: 18

NUT

€ 4.50

19

0916017001
ref: 19

WASHER

€ 3.00

20

0916725003
ref: 20

WASHER

€ 7.50

21

0918025013
ref: 21

SPACER

€ 0.00

22

0926230002
ref: 22

BEARING

€ 30.00

23

0928330005
ref: 23

SEAL,OIL(30X44X6)

€ 6.00

24

0928909001
ref: 24

OIL SEAL

€ 6.00

25

0930420001
ref: 25

BUSHING

€ 0.00

26

0931915002
ref: 26

BUSHING

€ 8.00

27

0938025003
ref: 27

RING,SNAP

€ 3.00

28

0938026001
ref: 28

RING,SNAP

€ 2.00

29

0939914001
ref: 29

RING

€ 2.50

30

0212106128
ref: 30

SCREW

€ 3.00

31

0611109004
ref: 31

BALL

€ 1.00

32

0811360010
ref: 32

BALL BEARING

€ 15.00

33

0811362050
ref: 33

BEARING

€ 20.50

34

0821115241
ref: 34

WASHER,THRUST

€ 4.00

35

0831111068
ref: 35

NUT

€ 2.50

36

0832121068
ref: 36

LOCK WASHER

€ 2.50

all assemblies
