TAIL/BRAKE LAMP

TC120 CAT 1969 GENERAL EXPORT (E01) MPH

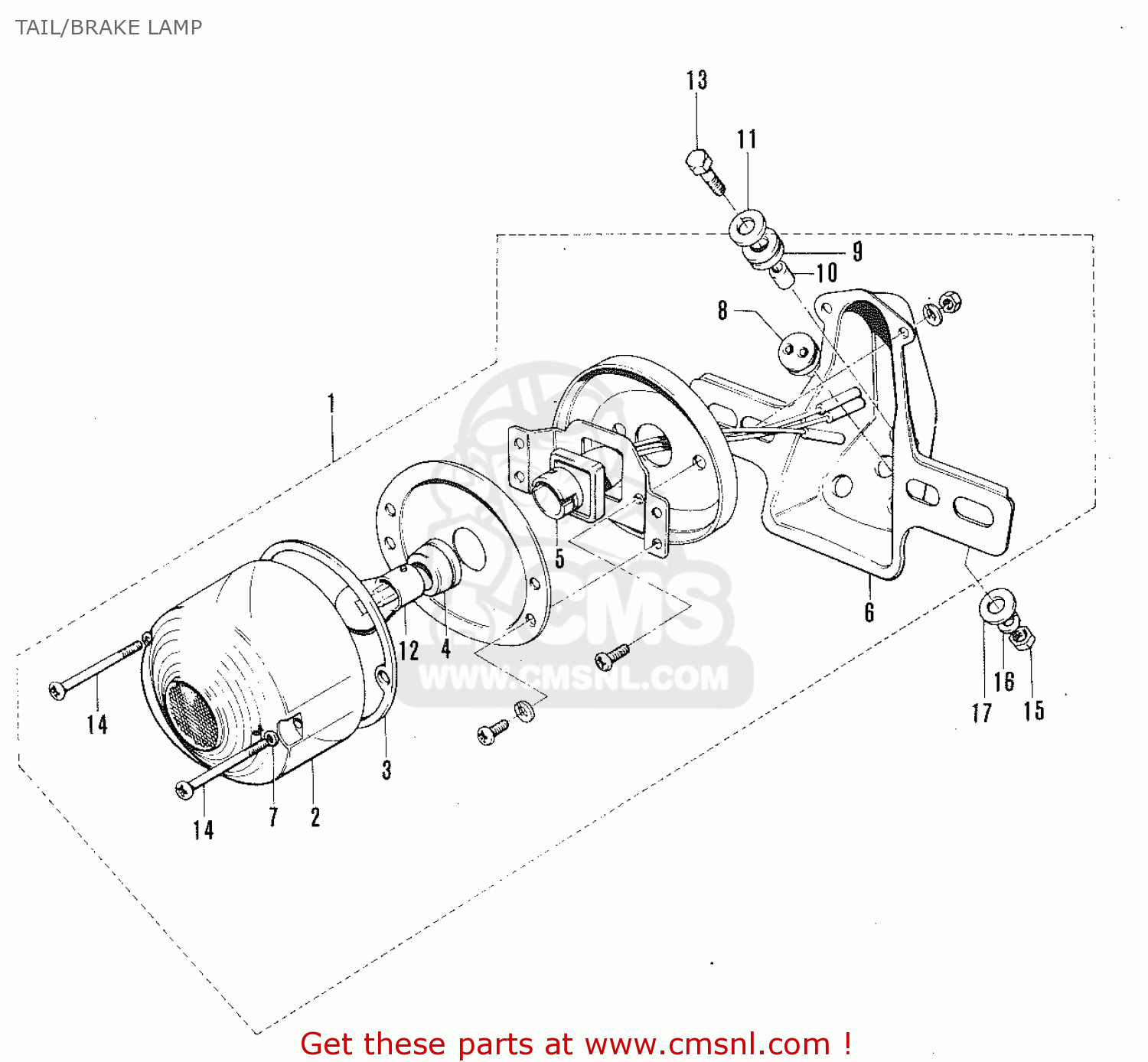

Tail/brake lamp diagram TC120 CAT 1969 GENERAL EXPORT (E01) MPH

prices are in EUR

ref

part #

description

quantity

3571005610
ref: 1

LAMP ASSEMBLY,REAR COMBINATION

€ 0.00

3571215011
ref: 2

LENS,REAR COMBINATION LAMP

€ 37.50

3571315010
ref: 3

GASKET,REAR COMBINATION LAMP LENS (NAS)

€ 3.50

3571615010
ref: 4

PLATE,REAR COMBINATION LAMP

€ 1.50

3571805611
ref: 5

SOCKET

€ 19.50

3572618610
ref: 6

BRACKET,REAR COMBINATION LAMP

€ 0.00

3572703010
ref: 7

WASHER,REAR COMBINATION LAMP

€ 1.50

3572818610
ref: 8

GROMMET,REAR COMBINATION LAMP

€ 0.00

3576515010
ref: 9

CUSHION

€ 9.00

3576615010
ref: 10

SPACER,REAR COMBINATION LAMP

€ 11.50

0916006020
ref: 11

WASHER

€ 2.00

0947106009
ref: 12

BULB(6V17/5.3W,STANLEY,A4813)

€ 6.50

0111106208
ref: 13

BOLT

€ 2.00

0211304558
ref: 14

SCREW

€ 1.50

0831111068
ref: 15

NUT

€ 2.50

0832121068
ref: 16

LOCK WASHER

€ 2.50

0832221068
ref: 17

WASHER

€ 2.00
