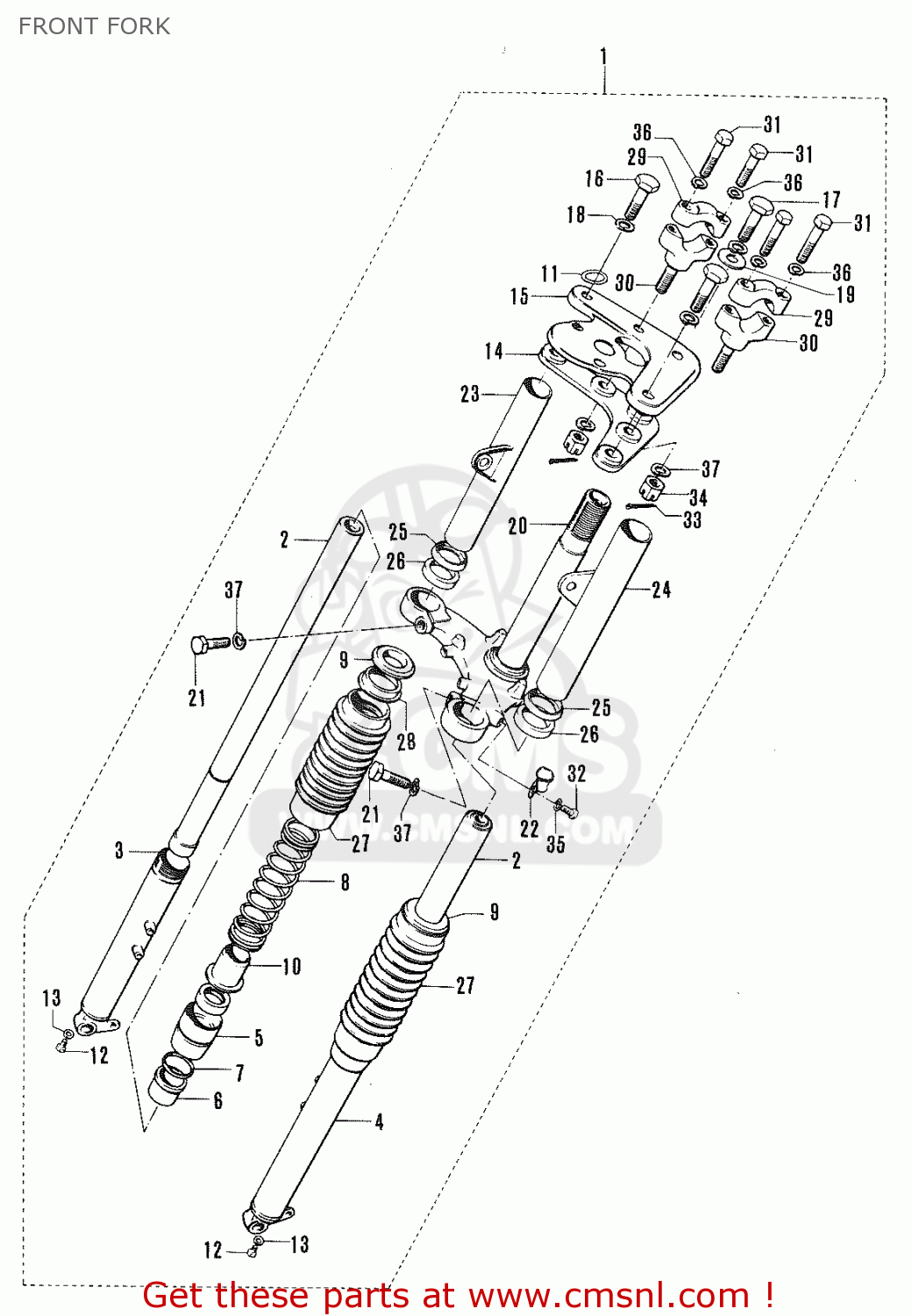

FRONT FORK

ref

part #

description

quantity

1

5110020210
ref: 1

FRONT FORK ASS'Y

€ 0.00

2

5111020210
ref: 2

TUBE,FORK,INNER

€ 39.00

3

5113020210
ref: 3

TUBE,OUTER,RIGHT

€ 0.00

4

5114020210
ref: 4

TUBE,OUTER,LEFT

€ 28.50

5

5115007110
ref: 5

NUT,FORK OUTER TUBE

€ 16.00

6

5115207010
ref: 6

BUSHING,GUIDE

€ 6.50

7

5115407010
ref: 7

O RING,OIL SEAL LWR

€ 7.00

8

5117120210
ref: 8

SPRING,FRONT FORK

€ 7.50

9

5117220210
ref: 9

SEAT,SPRING

€ 0.00

10

5117307010
ref: 10

DUST SEAL,FRONT FORK

€ 10.00

11

5118111010
ref: 11

FORK FITTING BOLT "O" RING

€ 2.00

12

5118203621
ref: 12

OIL DRAIN PLUG

€ 3.50

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14

5131020210
ref: 14

HEAD,STEERING STEM

€ 75.00

15

5132520210
ref: 15

METER BRACKET

€ 0.00

16

5135111011
ref: 16

CAP,FORK INNER TUBE

€ 5.50

17

5135220010
ref: 17

BOLT,STEERING STEM HEAD

€ 2.00

18

5135411010
ref: 18

WASHER

€ 5.50

19

5135620010
ref: 19

WASHER

€ 0.00

20

5141007601
ref: 20

STEM,STEERING

€ 39.00

21

5145103010
ref: 21

BOLT,FORK INNER TUBE F

€ 3.00

22

5145305110
ref: 22

CLIP,BRAKE CABLE

€ 4.50

23

5153020210
ref: 23

BRACKET COMP,HEADLAMP

€ 0.00

24

5154020210
ref: 24

BRACKET,HEADLAMP,LEFT

€ 0.00

25

5155120210
ref: 25

SEAT,HEADLAMP BRACKET

€ 4.00

26

5155307110
ref: 26

CUSHION,HEADLAMP BRACKET

€ 1.50

27

5157107110
ref: 27

BOOT

€ 12.50

28

5157307110
ref: 28

BAND,FRONT FORK COVER

€ 2.50

29

5621112111
ref: 29

HOLDER,HANDLEBAR

€ 0.00

30

5622020010
ref: 30

HANDLEBAR LOWER HOLDER

€ 0.00

31

0122108307
ref: 31

BOLT

€ 2.50

32

0211106108
ref: 32

SCREW, CENTER SHAFT

€ 1.50

33

0411125208
ref: 33

PIN 25X20

€ 2.00

34

0831431108
ref: 34

NUT

€ 1.50

35

0832121068
ref: 35

LOCK WASHER

€ 2.50

36

0832121088
ref: 36

LOCK WASHER

€ 2.00

37

0832121108
ref: 37

LOCK WASHER

€ 2.00
