REDUCTION SHIFTING

TC120 CAT 1969 GENERAL EXPORT (E01) MPH

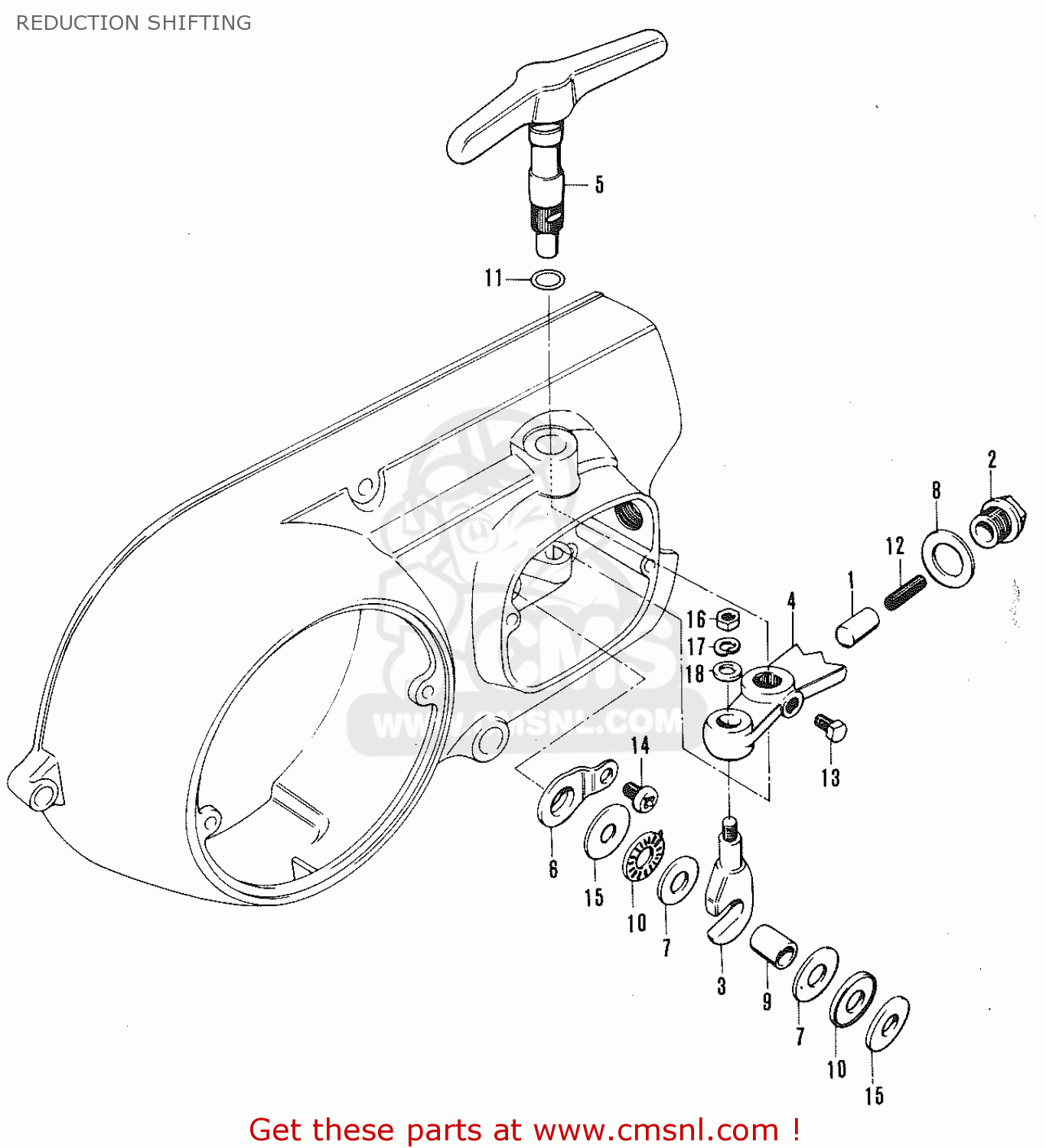

Reduction shifting diagram TC120 CAT 1969 GENERAL EXPORT (E01) MPH

prices are in EUR

ref

part #

description

quantity

2535111000
ref: 1

STOPPER,GEAR SHIFTING

€ 6.50

2535216000
ref: 2

HOLDER,SHIFTING CAM STOPPER

€ 0.00

2581107401
ref: 3

REDUCTION SHIFTING ARM PIN

€ 9.00

2581207401
ref: 4

ARM,REDUCTION SHAFT

€ 0.00

2582007400
ref: 5

REDUCTION SHIFTING LEVER

€ 11.50

2583007440
ref: 6

REDUCTION ROD DUST SEAL

€ 4.50

0916010021
ref: 7

WASHER(10.1X21.4X0.8)

€ 3.00

0916014003
ref: 8

WASHER (14.2X22X1)

€ 1.00

0918006017
ref: 9

SPACER(6X10X12.2)

€ 4.00

0926310002
ref: 10

BEARING(10X22X2.8)

€ 8.50

0928010001
ref: 11

O RING(D:1.3,ID:9.6)

€ 2.00

0944005002
ref: 12

SPRING

€ 12.00

0111105088
ref: 13

BOLT 5X16

€ 2.00

0211106088
ref: 14

SCREW

€ 2.00

0821106223
ref: 15

WASHER

€ 1.50

0831111058
ref: 16

NUT

€ 2.50

0832121058
ref: 17

LOCK WASHER

€ 2.00

0832221058
ref: 18

WASHER

€ 2.50
