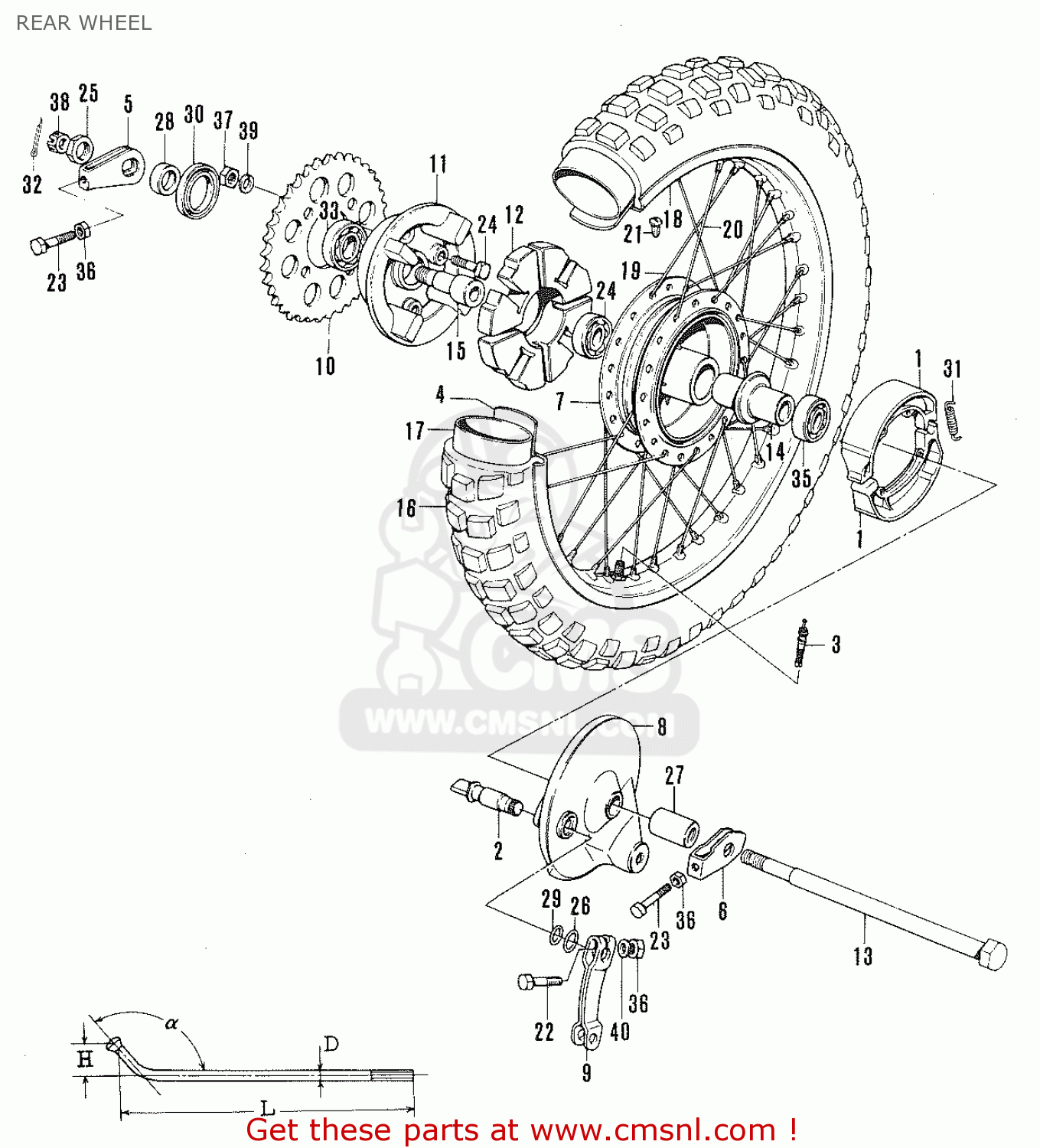

REAR WHEEL

ref

part #

description

quantity

0

6400120820
ref: 0

REAR HUB ASS'Y

€ 0.00

1

5441007001
ref: 1

SHOE,BRAKE

€ 35.00

2

5444120000
ref: 2

CAM,FRONT BRAKE

€ 19.50

3

5525001000
ref: 3

VALVE,INNER TUBE

€ 0.00

4

5526111010
ref: 4

PROTECTOR,INNER TUBE

€ 3.50

5

6141020100
ref: 5

ADJUSTER,CHAIN

€ 8.00

6

6142020100
ref: 6

ADJUSTER,CHAIN

€ 11.00

7

6411007001
ref: 7

HUB,REAR WHEEL

€ 156.50

8

6421007000
ref: 8

PANEL,REAR HUB

€ 88.00

9

6445120000
ref: 9

LEVER,REAR BRAKE CAM

€ 11.00

10

6451120100
ref: 10

SPROCKET,REAR

€ 65.00

11

6461107000
ref: 11

DRUM,RR SPROCKET

€ 47.00

12

6465107000
ref: 12

CUSHION,REAR DRUM

€ 16.00

13

6471007602
ref: 13

AXLE,REAR

€ 0.00

14

6473007001
ref: 14

SPACER,REAR HUB BEARING

€ 8.50

15

6476107000
ref: 15

SHAFT,RR SPROCKET DRUM

€ 11.50

16

6510020210
ref: 16

TIRE

€ 0.00

17

6520011600
ref: 17

TUBE ASSEMBLY,WHEEL,INNER

€ 24.50

17

6530020808
ref: 17

SPOKE SET,REAR

€ 34.50

18

6531120120
ref: 18

RIM,REAR WHEEL

€ 86.50

19

6532120120
ref: 19

SPOKE SET,REAR WHEEL

€ 0.00

20

6532220120
ref: 20

SPOKE,RR WHEEL OUTER

€ 2.00

21

6532503020
ref: 21

NIPPLE,SPOKE

€ 0.00

22

0910006050
ref: 22

BOLT

€ 1.50

23

0910406002
ref: 23

BOLT(6X38)

€ 2.00

24

0910508001
ref: 24

BOLT(8X33.5)

€ 2.50

25

0914018001
ref: 25

NUT

€ 3.00

26

0916012011
ref: 26

WASHER(12.5X20X1)

€ 1.50

27

0918015002
ref: 27

SPACER(15.2X26X33)

€ 5.00

28

0918020004
ref: 28

SPACER(20X28X13)

€ 6.00

29

0928012001
ref: 29

O RING(D:2.5,ID:11.4)

€ 2.50

30

0928328002
ref: 30

OIL SEAL

€ 11.50

31

0944307001
ref: 31

SPRING(L:34)

€ 2.50

32

0411130358
ref: 32

PIN

€ 1.50

33

0811362040
ref: 33

Bearing

€ 28.00

34

0814362020
ref: 34

BEARING

€ 12.50

35

0814363020
ref: 35

BEARING

€ 12.00

36

0831111068
ref: 36

NUT

€ 2.50

37

0831231088
ref: 37

NUT

€ 2.00

38

0831431127
ref: 38

CASTLE NUT

€ 2.00

39

0832121088
ref: 39

LOCK WASHER

€ 2.00

40

0832221068
ref: 40

WASHER

€ 2.00

all assemblies
