FLYWHEEL MANGNETO- IGNITION COIL

TC120 CAT 1969 GENERAL EXPORT (E01) MPH

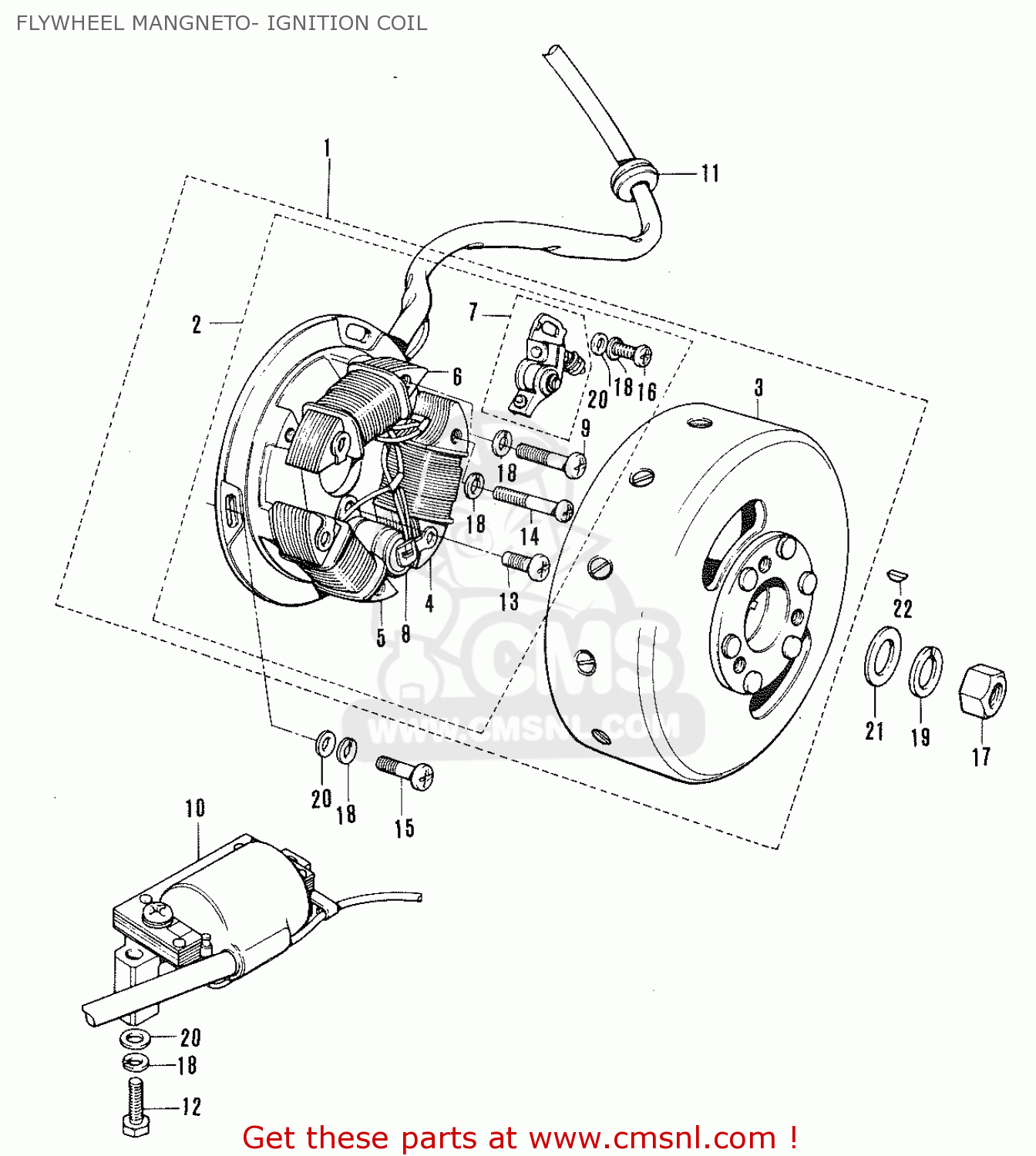

Flywheel mangneto- ignition coil diagram TC120 CAT 1969 GENERAL EXPORT (E01) MPH

prices are in EUR

ref

part #

description

quantity

3210020220
ref: 1

MAGNETO ASSEMBLY

€ 0.00

3210120220
ref: 2

STATOR ASSEMBLY

€ 53.50

3210207612
ref: 3

ROTOR ASSEMBLY

€ 70.00

3212007020
ref: 4

COIL,LIGHTING

€ 24.50

3213007020
ref: 5

COIL

€ 34.50

3214007020
ref: 6

COIL,PRIMARY

€ 24.00

3224007022
ref: 7

POINT ASSY,CONTACT

€ 17.00

3234107020
ref: 8

CONDENSER

€ 14.00

3235107021
ref: 9

PRIMARY COIL FITTING SCREW

€ 1.00

3341020220
ref: 10

COIL ASSEMBLY,IGNITION

€ 184.50

0930809002
ref: 11

GROMMET

€ 1.00

0111105128
ref: 12

BOLT

€ 2.00

0211105108
ref: 13

SCREW

€ 2.00

0211105308
ref: 14

SCREW

€ 1.50

0211205168
ref: 15

SCREW

€ 2.50

0231105108
ref: 16

.SCREW

€ 0.00

0831211128
ref: 17

NUT

€ 3.00

0832121058
ref: 18

LOCK WASHER

€ 2.00

0832121128
ref: 19

WASHER,LOCK 12

€ 2.50

0832221058
ref: 20

WASHER

€ 2.50

0832211128
ref: 21

WASHER

€ 2.00

0834131049
ref: 22

KEY 4MM

€ 3.50
