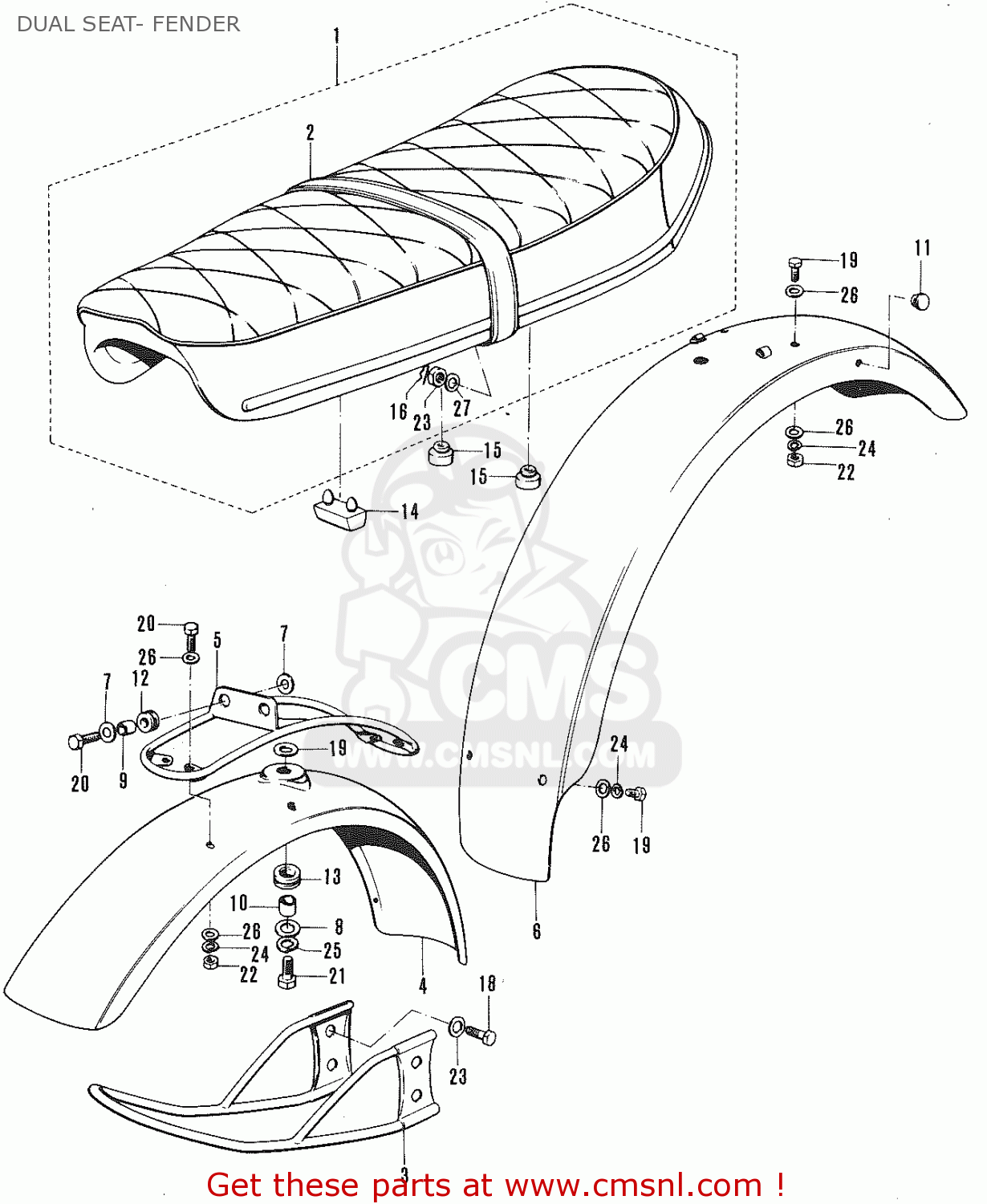

DUAL SEAT- FENDER

ref

part #

description

quantity

1

4510020200
ref: 1

SEAT ASSEMBLY

€ 0.00

2

4518020200
ref: 2

BAND,SEAT

€ 0.00

3

5159020200
ref: 3

FRONT GRAB BAR

€ 0.00

4

5311020620
ref: 4

FENDER,FRONT

€ 156.50

5

5321020200
ref: 5

BRACE,FRONT FENDER

€ 0.00

6

6311020600
ref: 6

FENDER,REAR

€ 56.00

7

0916006027
ref: 7

WASHER (6.5X20X1.2)

€ 2.00

8

0916008004
ref: 8

WASHER

€ 2.50

9

0918007005
ref: 9

SPACER (7X9X7)

€ 2.50

10

0918008039
ref: 10

SPACER(8.2X10X8)

€ 2.50

11

0925005001
ref: 11

PLUG

€ 1.00

12

0932008007
ref: 12

CUSHION

€ 4.00

13

0932009002
ref: 13

CUSHION

€ 4.00

14

0932108004
ref: 14

CUSHION

€ 3.00

15

0932110001
ref: 15

CUSHION

€ 2.50

16

0938506001
ref: 16

CLIP

€ 11.00

17

0111106108
ref: 17

HEXAGON BOLT

€ 2.00

18

0111106127
ref: 18

HEXAGON BOLT

€ 2.00

19

0111106128
ref: 19

BOLT

€ 2.00

20

0111106167
ref: 20

HEXAGON BOLT

€ 3.00

21

0112108208
ref: 21

BOLT

€ 3.00

22

0831111068
ref: 22

NUT

€ 2.50

23

0831131088
ref: 23

NUT

€ 2.00

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0832221068
ref: 26

WASHER

€ 2.00

27

0832221088
ref: 27

WASHER

€ 2.00
