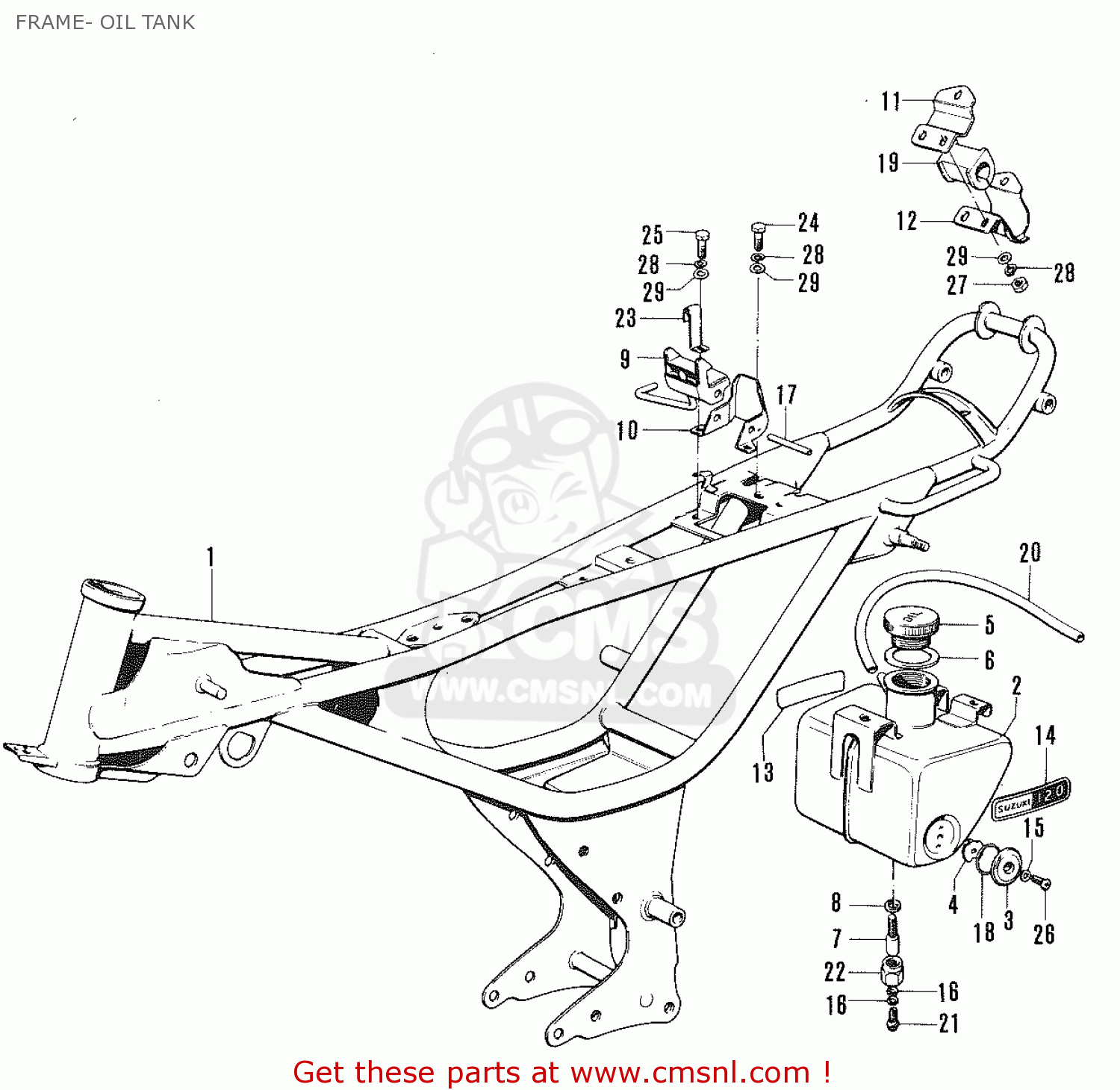

FRAME- OIL TANK

ref

part #

description

quantity

1

4110020201019
ref: 1

FRAME

€ 0.00

2

4461020000019
ref: 2

TANK,OIL

€ 0.00

3

4464111000
ref: 3

LENS,INSPECTION

€ 1.50

4

4464211000
ref: 4

PLATE,OIL LEVEL INSPECTION

€ 8.50

5

4465111040
ref: 5

CAP,OIL TANK

€ 14.00

6

4466111000
ref: 6

GASKET,OIL TANK FILLER CAP (NAS)

€ 4.00

7

4472011030
ref: 7

UNIT,OIL FILTER

€ 5.50

8

4473311030
ref: 8

GASKET,OIL OUTLET JOINT (NAS)

€ 2.00

9

4521020000
ref: 9

DUAL SEAT CLAMP

€ 29.50

10

4521920000
ref: 10

SEAT CLAMP GUIDE PLATE

€ 0.00

11

4522120000
ref: 11

SEAT FITTING UPPER BRACKET

€ 5.00

12

4522620000
ref: 12

SEAT FITTING LOWER BRACKET

€ 4.50

13

6817120600
ref: 13

EMBLEM

€ 0.00

14

0916805001
ref: 14

GASKET(5X9.5X1) (NAS)

€ 2.00

15

0916806002
ref: 15

GASKET (NAS)

€ 1.50

16

0920506001
ref: 16

PIN

€ 1.00

17

0928023001
ref: 17

O RING(D:3,ID:23)

€ 2.00

18

0930519001
ref: 18

BUSHING

€ 0.00

19

0934405005
ref: 19

HOSE

€ 10.00

20

0936006003
ref: 20

UNION BOLT

€ 5.00

21

0936114001
ref: 21

OIL OUTLET JOINT NUT

€ 6.50

22

0940300035
ref: 22

CLAMP

€ 0.00

23

0111106128
ref: 23

BOLT

€ 2.00

24

0111106168
ref: 24

BOLT

€ 3.00

25

0211105168
ref: 25

SCREW

€ 2.50

26

0831111068
ref: 26

NUT

€ 2.50

27

0832121068
ref: 27

LOCK WASHER

€ 2.50

28

0832221068
ref: 28

WASHER

€ 2.00
