ELECTRICAL (MODEL V)

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

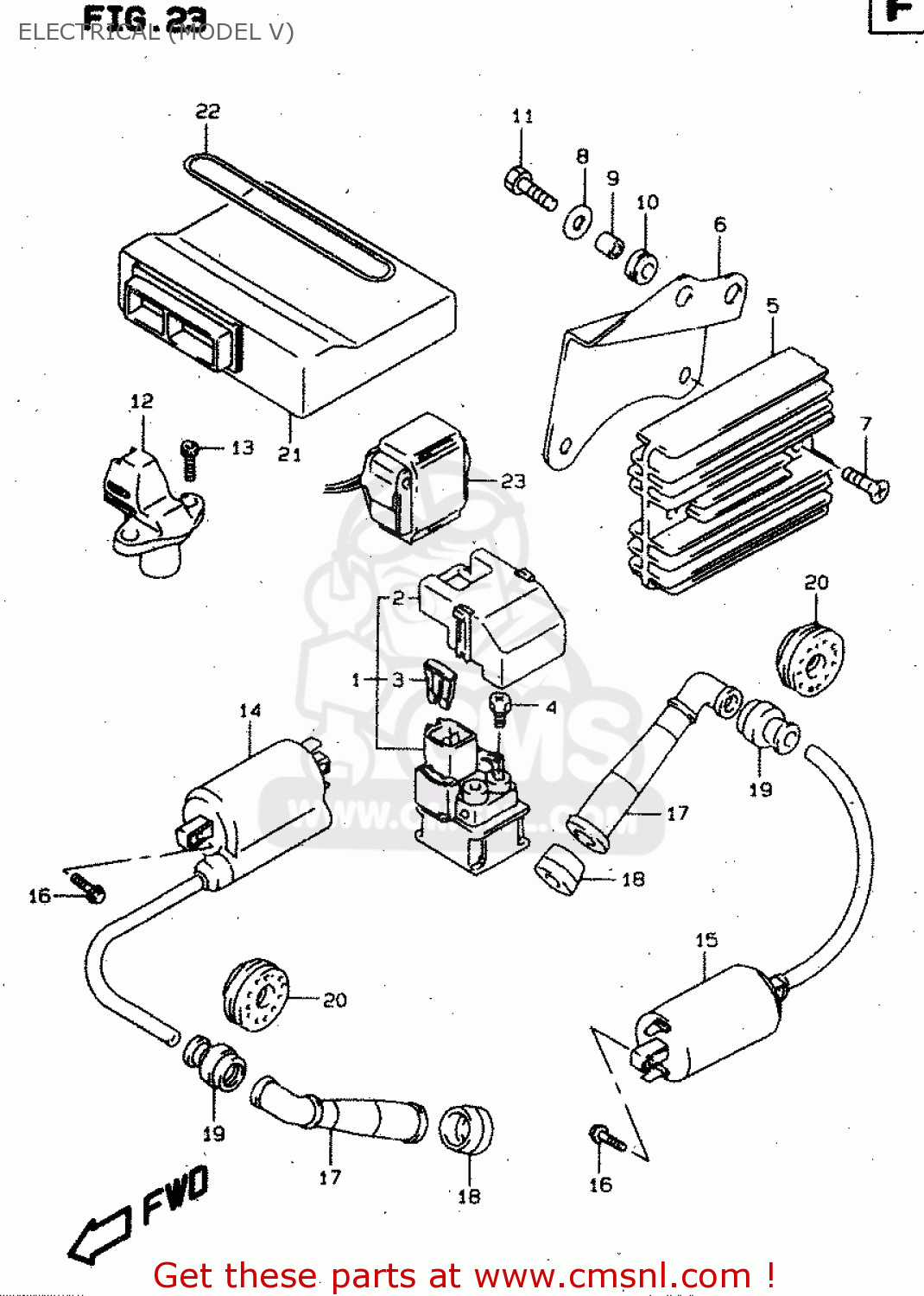

Electrical (model v) diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

ELECTRICAL (MODEL V) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

ELECTRICAL (MODEL V) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

2

3186121E20
ref: 2

COVER,RELAY ASSEMBLY

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280002F00
ref: 5

RECTIFIER ASSY

€ 368.00

6

3283102F00
ref: 6

BRACKET,RECT FTG

€ 9.50

7

0913606093
ref: 7

SCREW (6X20)

€ 2.00

8

0916006132
ref: 8
6.5X18X1.60

WASHER(6.5X18X1.6)

€ 2.00

9

0918006258
ref: 9
6.5X9X6.70

SPACER(6.5X9X6.7)

€ 3.00

10

0932009036
ref: 10

CUSHION

€ 4.00

11

0156006253
ref: 11

BOLT

€ 2.00

12

3216002F00
ref: 12

SENSOR ASSY,CAM POSITION

€ 127.50

13

0713006163
ref: 13

BOLT,OIL FILLE

€ 3.00

14

3341048E00
ref: 14

COIL ASSY,IGNITION

€ 148.50

15

3342038A11
ref: 15

COIL ASSY,IGNITION

€ 150.00

16

0216205203
ref: 16

SCREW, PRESSURE SENSOR

€ 2.00

17

3351011D00
ref: 17

CAP,SPARK PLUG

€ 38.00

18

3354123E01
ref: 18

SEAL,SPARK PLUG CAP

€ 7.00

19

3354238B00
ref: 19

SEAL,HIGH TENSION CORD

€ 4.50

20

3354302F00
ref: 20

COVER,SPARK PLUG CAP

€ 22.50

21

3292002F01
ref: 21
<-32920-02F00

CONTROL UNIT,EPI

€ 1,042.50

21

3292002F11
ref: 21
E4, <-32920-02F10

CONTROL UNIT,EPI

€ 1,447.00

21

3292002F21
ref: 21
E22, E39, <-32920-02

CONTROL UNIT, EPI

€ 1,378.00

21

3292002F51
ref: 21
E18, <-32920-02F50

CONTROL UNIT, EPI

€ 1,447.00

22

3365112910
ref: 22

BAND,BATTERY

€ 6.00

23

3396002F00
ref: 23

SENSOR ASSY,FUEL CUT

€ 85.00

all assemblies
