FRONT CALIPERS

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

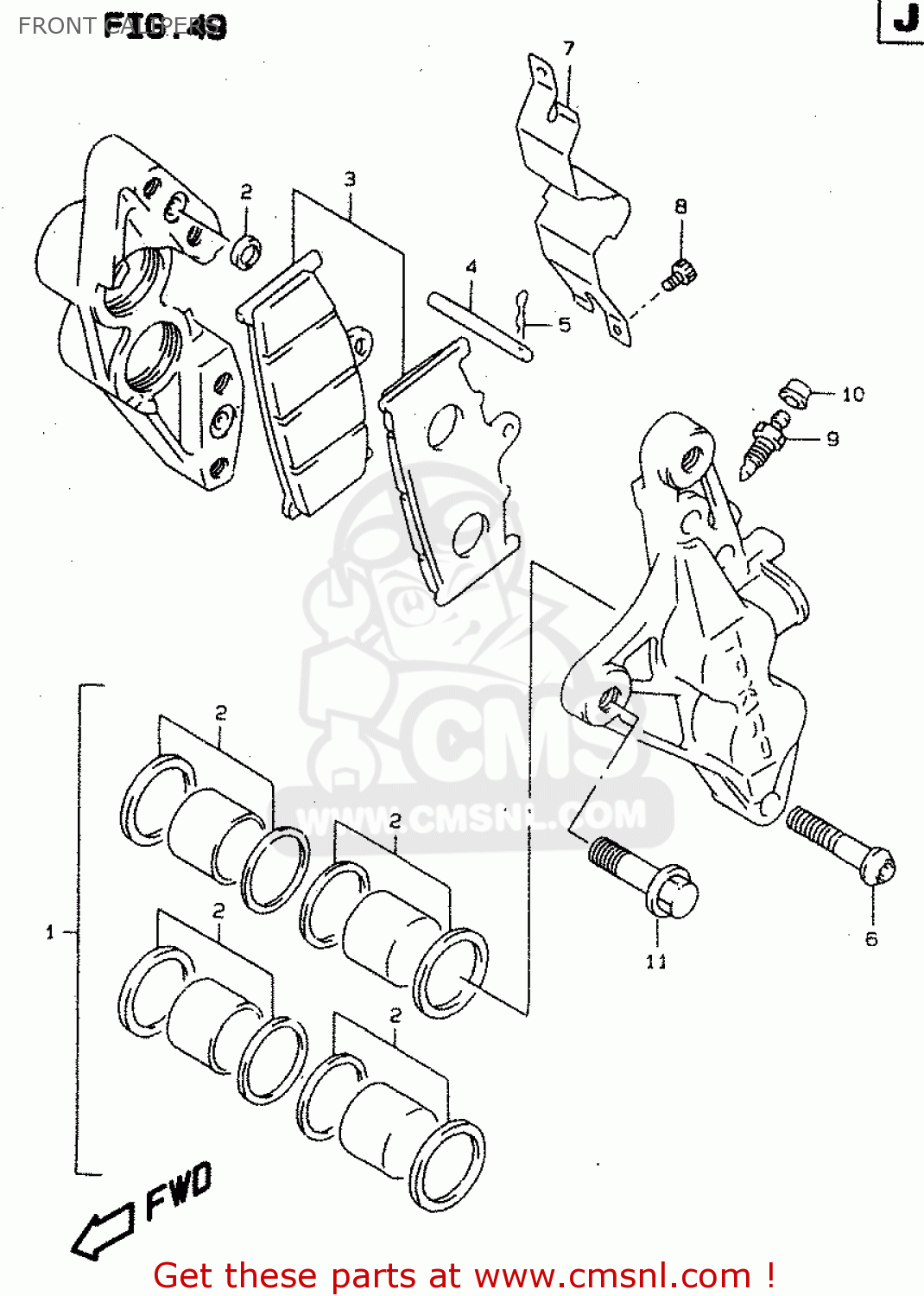

Front calipers diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

5910034E00
ref: 0

CALIPER ASSY,FR,R

€ 621.00

5930034E00
ref: 0

CALIPER ASSY,FR,L

€ 531.50

5930034810
ref: 1

PISTON SET

€ 82.00

5930034820
ref: 2

SEAL SET,PISTON

€ 37.00

5930034830
ref: 3

PAD SET (NAS)

€ 43.00

6914145000
ref: 4

PIN,PAD

€ 6.50

6914245000
ref: 5

CLIP,PAD PIN

€ 4.50

5914534E00
ref: 6

BOLT,HOUSING

€ 8.00

5915222D01
ref: 7

COVER,CALIPER DUST,R

€ 15.00

5915122D01
ref: 7

COVER,CALIPER DUST,L

€ 15.00

5915322D00
ref: 8

SCREW

€ 4.50

5912118410
ref: 9

BLEEDER

€ 8.00

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

0910310296
ref: 11

BOLT(10X30)

€ 6.00
