HEADLAMP (MODEL W/X E4, E18, E22, E25, E34)

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

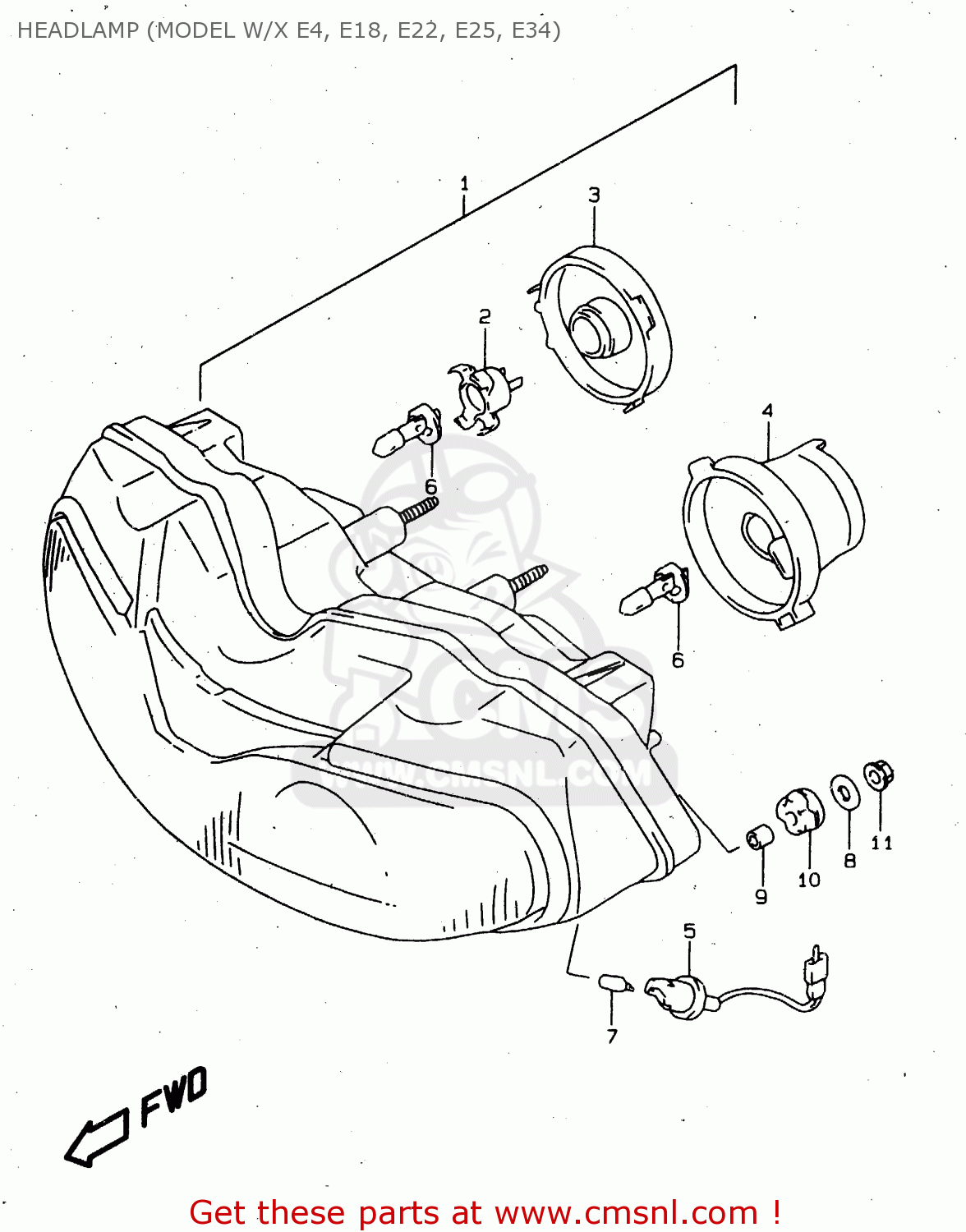

Headlamp (model w/x e4, e18, e22, e25, e34) diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

3510002F50999
ref: 1

HEADLAMP ASSY

€ 363.50

3517518E50
ref: 2

ADAPTER ASSY

€ 21.00

3512502F00
ref: 3

COVER,SOCKET

€ 14.00

3611802F00
ref: 4

SOCKET & CORD ASSY

€ 46.50

3611818E51
ref: 5

SOCKET ASSY

€ 15.00

0947112122
ref: 6
PURCHASE LOCALLY

BULB(12V55W/H1/P14.5S/OSRA,PHI

€ 4.00

0947112081
ref: 7

BULB(12V5W)

€ 1.50

0916006088
ref: 8

WASHER(6.5X20X1.6)

€ 2.00

0918006267
ref: 9

SPACER(6.5X9X12.5)

€ 3.00

0932009010
ref: 10

CUSHION

€ 2.50

0831610063
ref: 11

NUT

€ 2.50
