HANDLE SWITCH

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

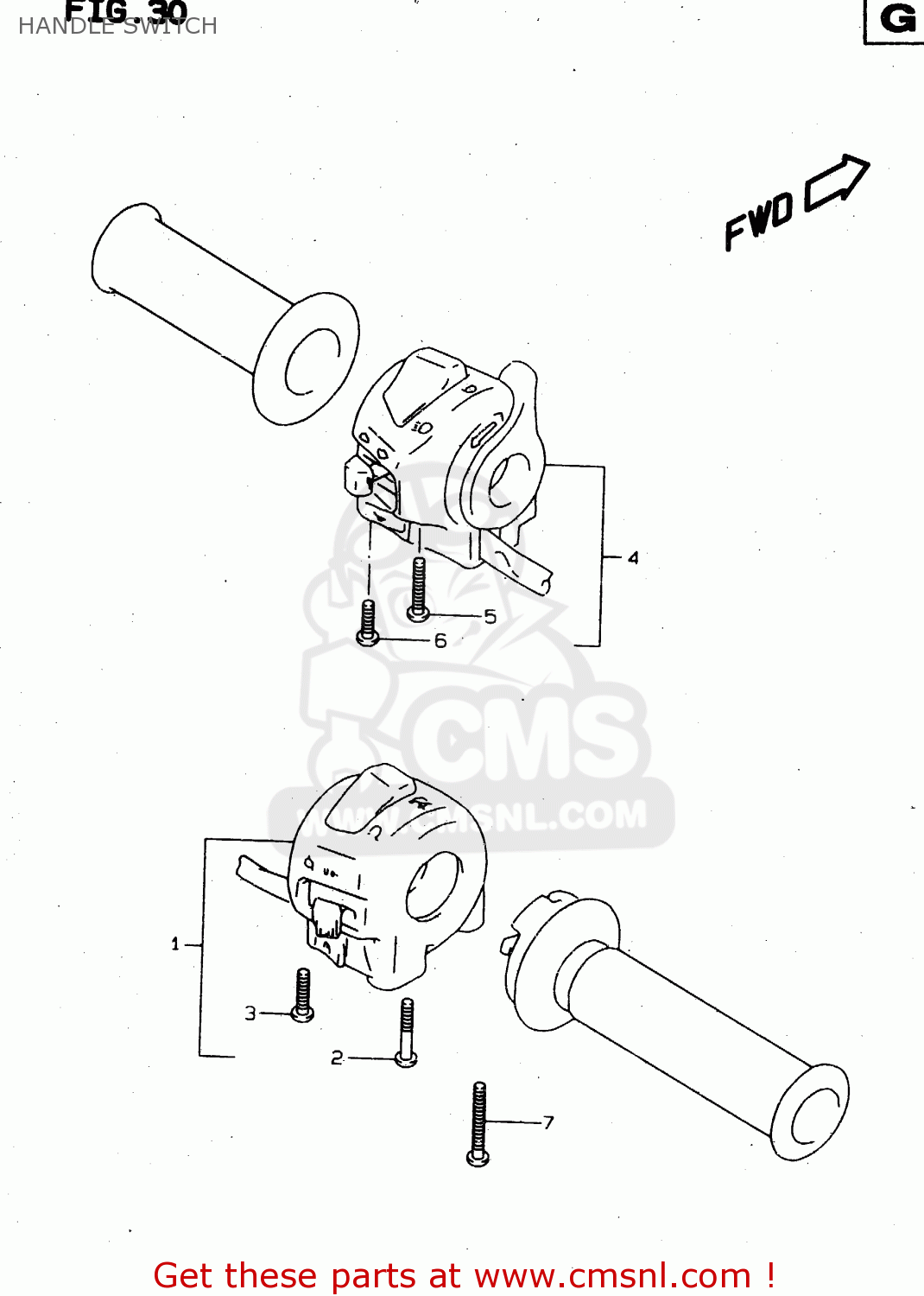

Handle switch diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

HANDLE SWITCH TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

HANDLE SWITCH TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

3720033E11
ref: 1

SWITCH,HANDLE,

€ 174.50

1

3720033E31
ref: 1
E24

SWITCH ASSY,HANDLE,R

€ 135.00

2

0211205305
ref: 2

SCREW

€ 1.50

3

0211205505
ref: 3

SCREW

€ 2.00

4

3740033E11
ref: 4

SWITCH ASSY,HANDLE,L

€ 209.50

5

0211205253
ref: 5

SCREW

€ 1.50

6

0211205455
ref: 6

SCREW, 5X45

€ 4.00

7

0211205103
ref: 7

SCREW

€ 2.00
