HEADLAMP (E2, E24)

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

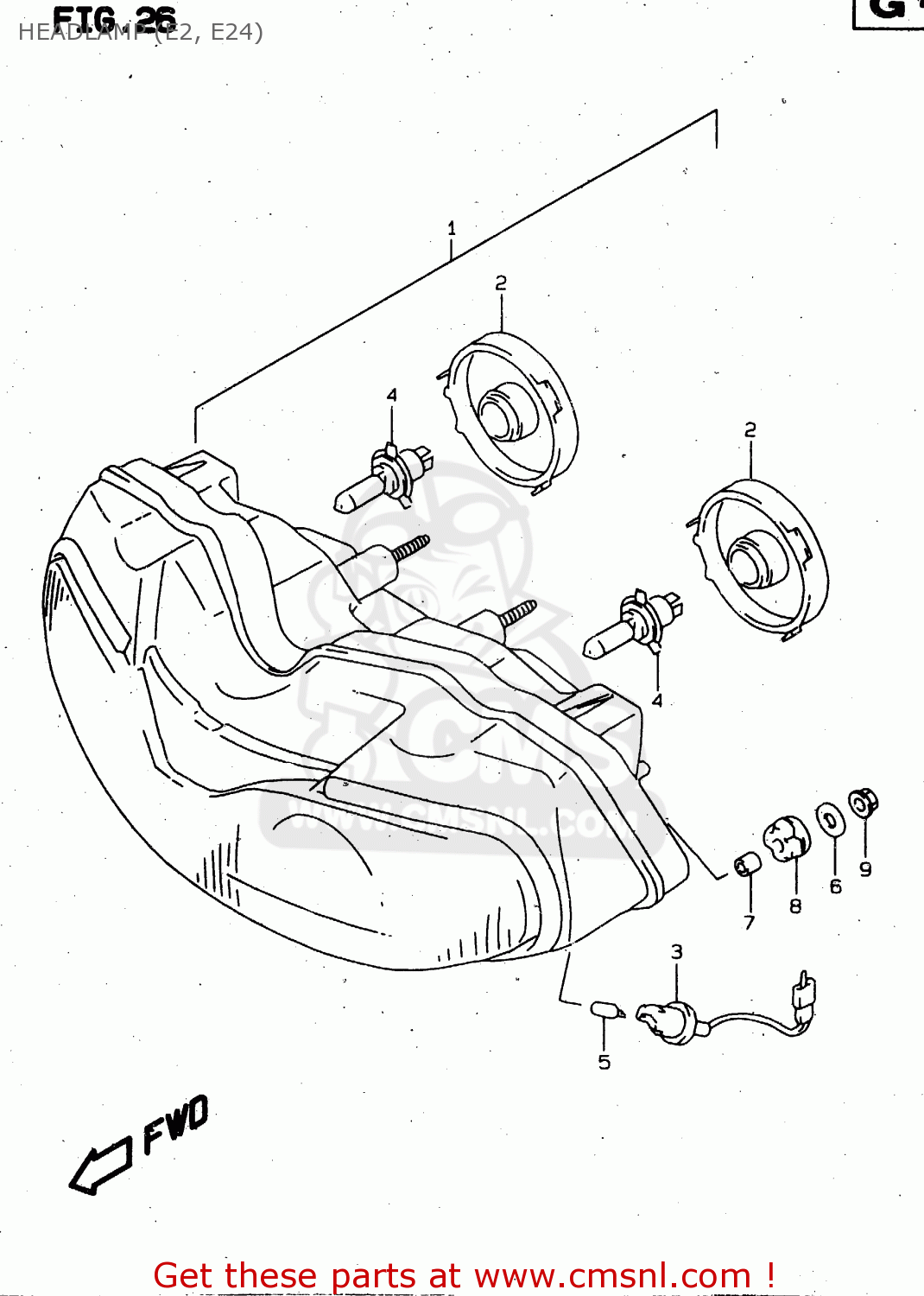

Headlamp (e2, e24) diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

3510002F20999
ref: 1

HEADLAMP ASSY

€ 342.50

3510002F30999
ref: 1
E24

HEADLAMP ASSEMBLY

€ 354.00

3512502F00
ref: 2

COVER,SOCKET

€ 14.00

3611818E51
ref: 3
E2

SOCKET ASSY

€ 15.00

0947112185
ref: 4

BULB(12V60/55W,H4)

€ 8.00

0947112081
ref: 5
E2

BULB(12V5W)

€ 1.50

0916006088
ref: 6

WASHER(6.5X20X1.6)

€ 2.00

0918006267
ref: 7

SPACER(6.5X9X12.5)

€ 3.00

0932009010
ref: 8

CUSHION

€ 2.50

0831610063
ref: 9

NUT

€ 2.50
