FRONT DAMPER (MODEL V)

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

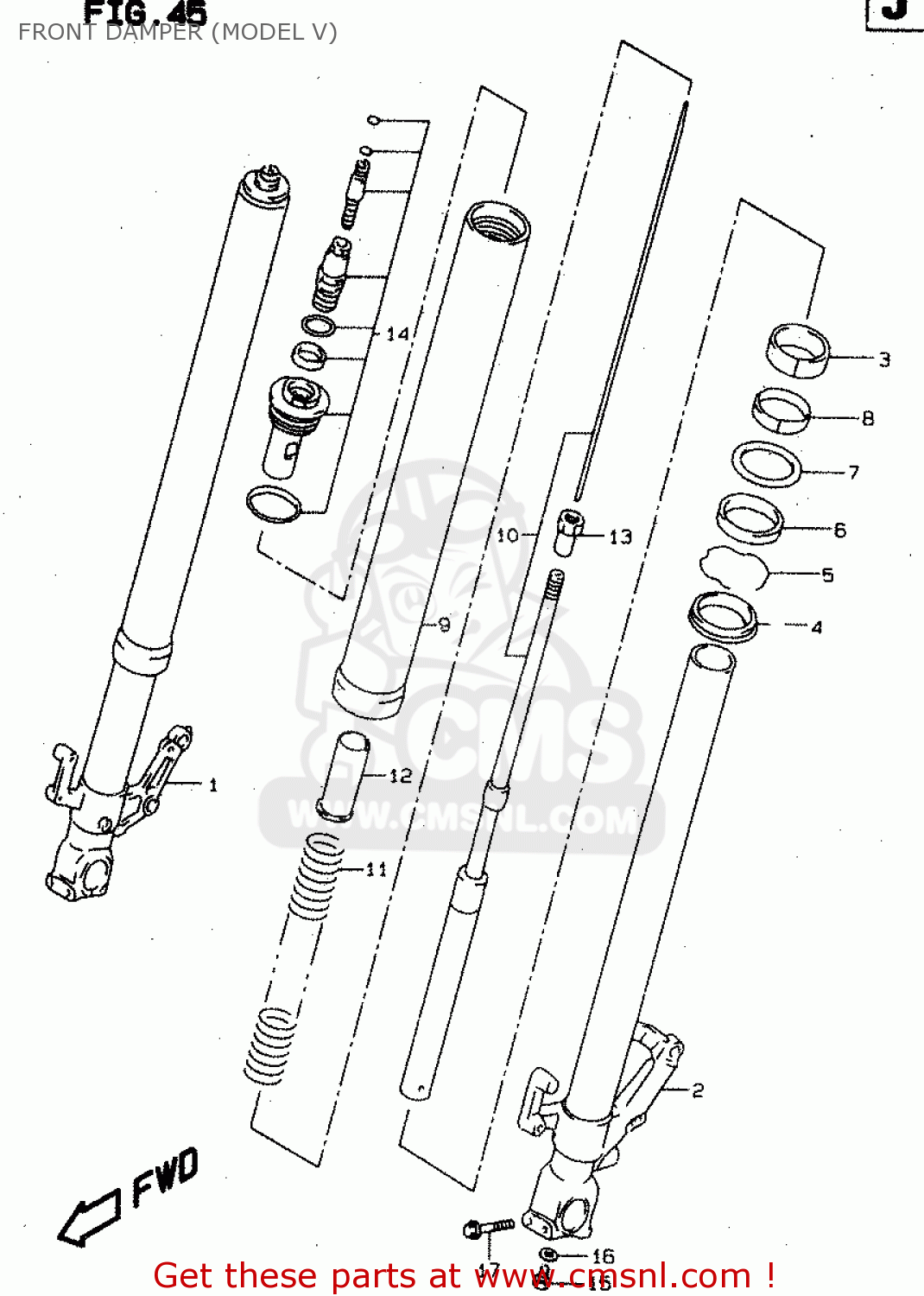

Front damper (model v) diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT DAMPER (MODEL V) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT DAMPER (MODEL V) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

0

5110302F00
ref: 0

DAMPER ASSEMBLY,FRONT FORK

€ 1,406.50

0

5110402F00
ref: 0

DAMPER ASSEMBLY,FRONT FORK

€ 1,406.50

1

5111002F00
ref: 1

TUBE,INNER,R

€ 467.00

2

5112002F00
ref: 2

TUBE,INNER,L

€ 489.50

3

5112140C00
ref: 3

PISTON

€ 11.50

4

5117346E20
ref: 4

SEAL,DUST

€ 19.50

5

5115614200
ref: 5

RING,STOPPER

€ 4.50

6

5115346E20
ref: 6

SEAL,OIL

€ 15.50

7

5115814200
ref: 7

WASHER

€ 4.00

8

5116702F00
ref: 8

METAL,SLIDE

€ 20.50

9

5113002F00
ref: 9

TUBE,OUTER

€ 491.50

10

5114602F00
ref: 10

CYLINDER

€ 386.00

11

5117102F00
ref: 11

SPRING,FRONT

€ 72.50

12

5117602F00
ref: 12

SPACER

€ 18.00

13

5112927C00
ref: 13

NUT,PISTON ROD

€ 19.50

14

5135102F00
ref: 14

CAP,FORK

€ 191.50

15

5114740C00
ref: 15

BOLT,OIL LOCK PIECE,12X22

€ 24.50

16

5114840300
ref: 16

GASKET,CYLINDER (NAS)

€ 2.50

17

0155008457
ref: 17

BOLT

€ 4.00
