STEERING DAMPER (MODEL V)

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

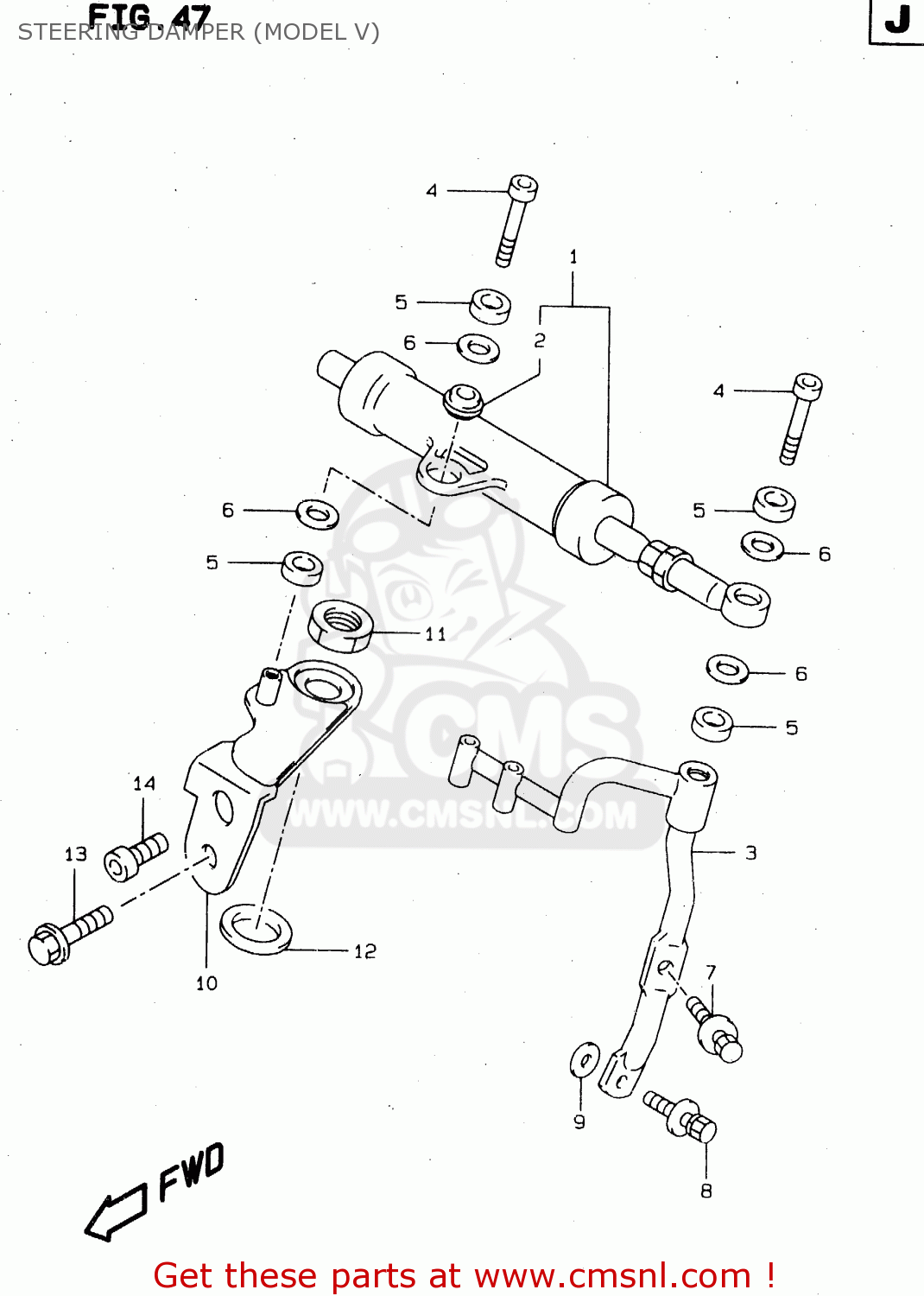

Steering damper (model v) diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

5175002F10
ref: 1

DAMPER ASSY, STEERING

€ 684.00

0926908003
ref: 2

BEARING(8X17.5X11)

€ 39.50

5171002F00
ref: 3
->51700-02810

STAY,STEERING DAMPER

€ 75.50

0910608071
ref: 4

BOLT(8X35)

€ 5.50

6433940410
ref: 5

6433940410

0918108106
ref: 6

SHIM(8X12X0.8)

€ 3.00

0911606171
ref: 7

BOLT(6X30)

€ 2.50

5173502F00
ref: 8

BOLT,STAY,LOWER 6X35

€ 4.50

0916006088
ref: 9

WASHER(6.5X20X1.6)

€ 2.00

5172002F00
ref: 10
->51700-02820

PLATE,STEERING DAMPER

€ 265.00

5135302F10
ref: 11

NUT,STEM TOP

€ 24.50

5172302F00
ref: 12

WASHER,STEERING DAMPER

€ 4.50

0155008127
ref: 13

BOLT

€ 3.50

5132803FA0
ref: 14

BOLT(8X32)

€ 3.00
