GEAR SHIFTING (MODEL X)

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

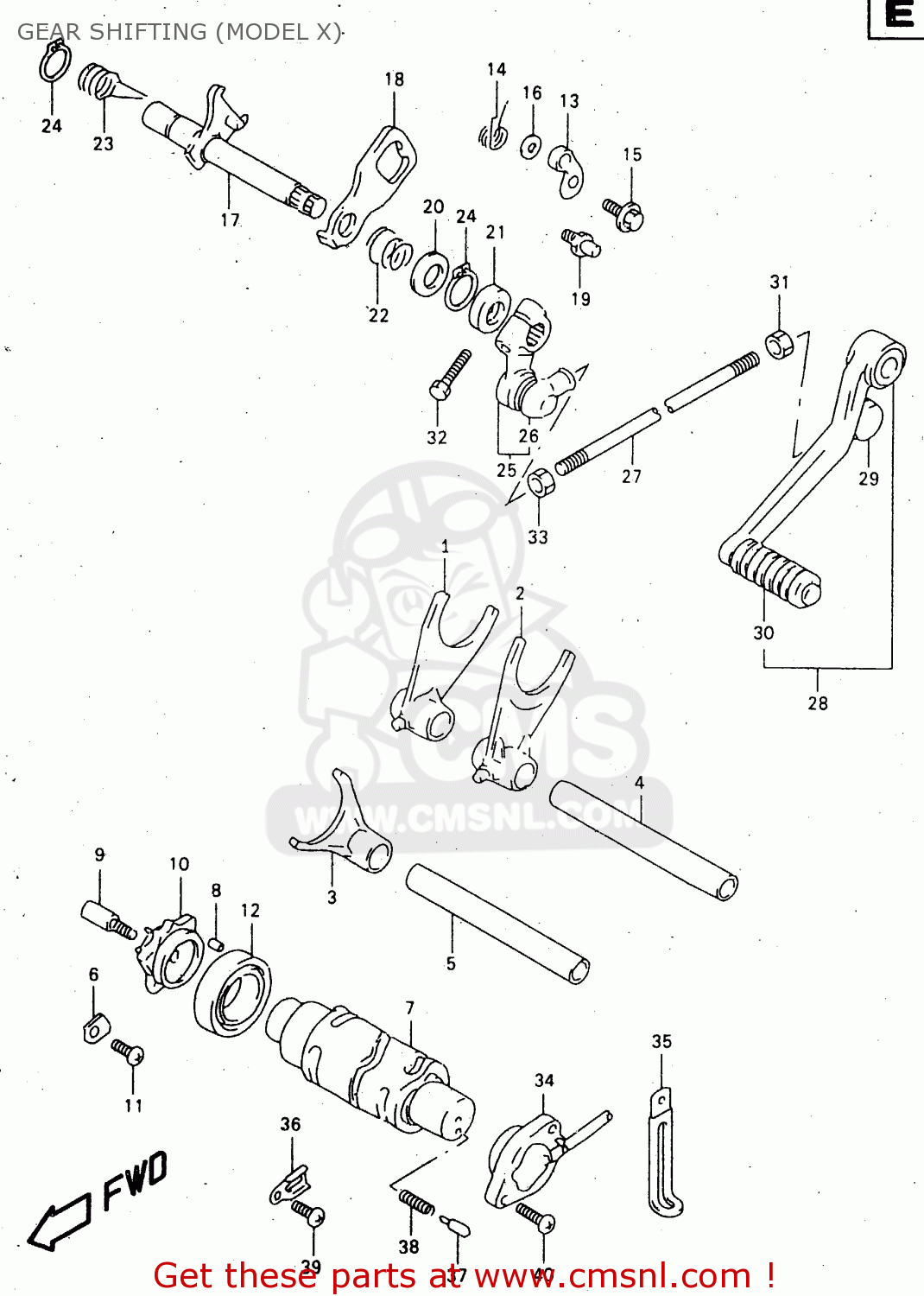

Gear shifting (model x) diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

GEAR SHIFTING (MODEL X) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
GEAR SHIFTING (MODEL X) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
GEAR SHIFTING (MODEL X) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
2521117E01
ref: 1
FORK,GEAR SHIFT
2521117E01
€ 64.50
2
2521117E10
ref: 2
FORK,GEAR SHIFT NO.1
€ 99.00
3
2523117E11
ref: 3
FORK,GEAR SHIFT NO.3
2523117E11
€ 108.50
4
2541102F20
ref: 4
SHAFT,GEAR SHIFT FORK
€ 16.00
5
2541102F10
ref: 5
SHAFT,GEAR SHIFT FORK NO.2
2541102F10
€ 15.00
6
2474121A00
ref: 6
RETAINER
2474121A00
€ 2.00
7
2531002F10
ref: 7
CAM,GEAR SHIFT
€ 198.00
8
0422104089
ref: 8
PIN
0422104089
€ 1.50
9
2531212C00
ref: 9
PIN,SHIFT CAM DRIVEN GEAR
2531212C00
€ 6.00
10
2538113E10
ref: 10
PLATE,GEAR SHIFT CAM
2538113E10
€ 40.00
11
0211206123
ref: 11
SCREW
0211206123
€ 1.50
12
0811369050
ref: 12
BEARING
0811369050
€ 36.00
13
2535026D01
ref: 13
STOPPER,GEAR SHIFT CAM
2535026D01
€ 8.50
14
2535513E00
ref: 14
SPRING,SHIFT CAM STOPPER
€ 4.00
15
0911106041
ref: 15
BOLT(6X14.3)
0911106041
€ 3.00
16
0821106141
ref: 16
WASHER
0821106141
€ 2.50
17
2551002F11
ref: 17
SHAFT,GEAR SHIFT
€ 92.00
18
2551213E11
ref: 18
PLATE,GEAR SHIFT CAM DRIVE
2551213E11
€ 18.00
19
2567101000
ref: 19
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
20
0918114167
ref: 20
14X22X1.0
SHIM(14X22X1)
0918114167
€ 3.50
21
0928314006
ref: 21
14X22X6.0
SEAL,OIL(14X22X6)
0928314006
€ 6.50
22
0944017009
ref: 22
SPRING
0944017009
€ 1.50
23
0944420001
ref: 23
SPRING
0944420001
€ 5.00
24
0833131146
ref: 24
CIRCLIP
0833131146
€ 2.00
25
2552019C02
ref: 25
ARM,GEAR SHIFT LINK
2552019C02
€ 53.50
26
2552647000
ref: 26
COVER,DUST
2552647000
€ 3.50
27
2552532C10
ref: 27
ROD,GEAR SHIFT LINK
2552532C10
€ 15.50
28
2560033E00
ref: 28
LEVER ASSY,GEAR SHIFT
2560033E00
€ 106.00
29
2552647000
ref: 29
COVER,DUST
2552647000
€ 3.50
30
2565220C00
ref: 30
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
31
0914006011
ref: 31
NUT
0914006011
€ 1.50
32
0150006253
ref: 32
BOLT
0150006253
€ 2.50
33
0831000067
ref: 33
NUT
0831000067
€ 2.50
34
3773002F10
ref: 34
BASE ASSY,GEAR SHIFT TERMINAL
3773002F10
€ 130.00
35
0940406432
ref: 35
<-09404-06429
CLAMP(L:65)
0940406432
€ 2.50
36
3149745000
ref: 36
CLAMP,GENERATOR LEAD WIRE
3149745000
€ 1.50
37
0920905011
ref: 37
PIN(5X15.5)
0920905011
€ 2.00
38
0944004010
ref: 38
SPRING
0944004010
€ 1.50
39
0211205103
ref: 39
SCREW
0211205103
€ 2.00
40
0211205163
ref: 40
SCREW
0211205163
€ 2.00
