STEERING STEM (MODEL V)

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

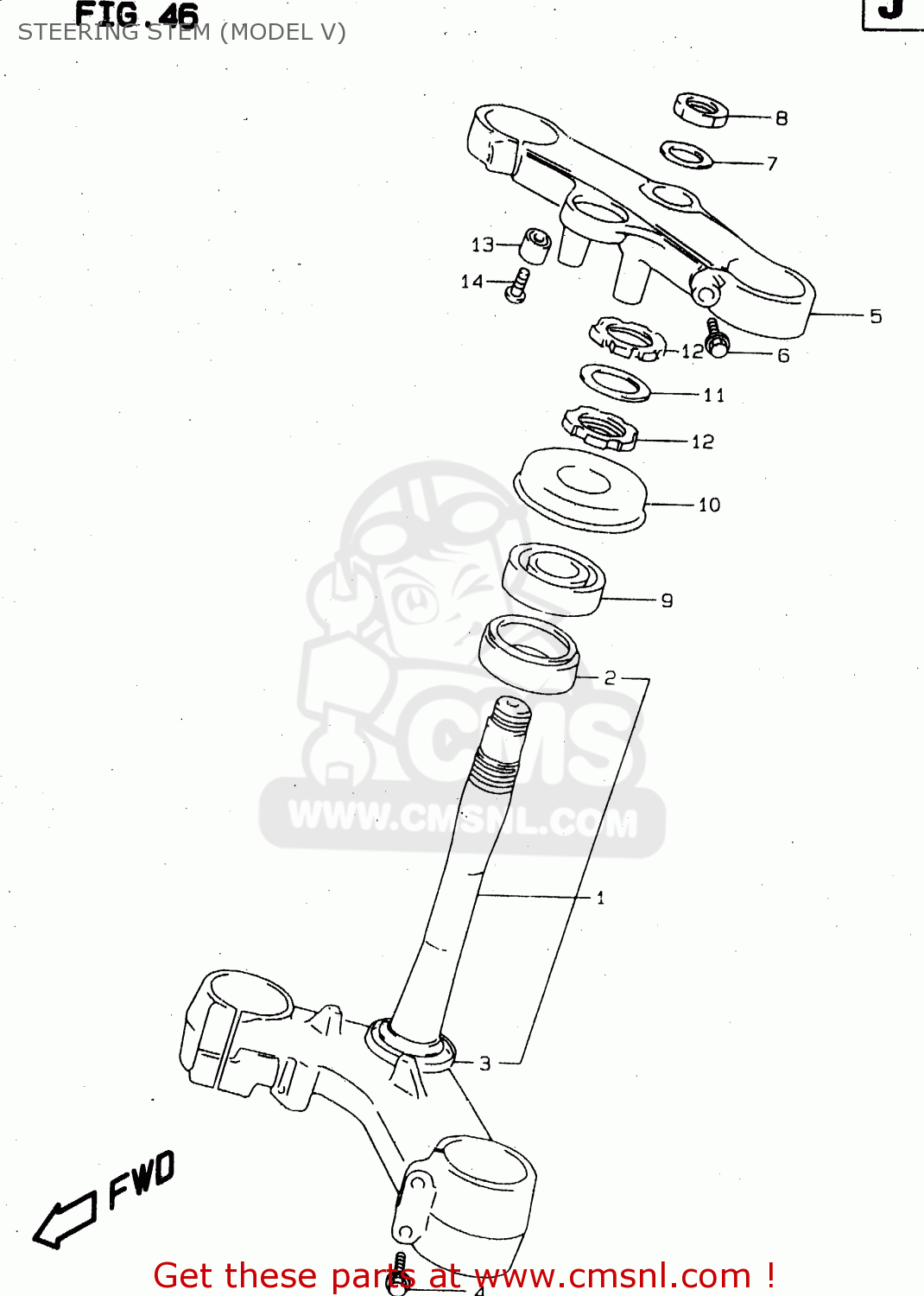

Steering stem (model v) diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

STEERING STEM (MODEL V) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

STEERING STEM (MODEL V) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

5141002F00
ref: 1

STEM,STEERING

€ 716.50

2

0926730010
ref: 2

BEARING(30X55X17)

€ 46.50

3

5164412C00
ref: 3

SEAL,STEERING LWR

€ 5.50

4

0155008407
ref: 4

BOLT

€ 3.50

5

5131102F00
ref: 5

HEAD,STEERING STEM

€ 345.50

6

0155008357
ref: 6
NO STEERING DAMPER

BOLT

€ 3.50

6

5132803FA0
ref: 6
WITH STEERING DAMPER

BOLT(8X32)

€ 3.00

6

0155008357
ref: 6
WITH STEERING DAMPER

BOLT

€ 3.50

7

5135627C00
ref: 7
NO STEERING DAMPER

WASHER,STEM HEAD(24.5X34X1.6)

€ 2.50

7

5172302F00
ref: 7
WITH STEERING DAMPER

WASHER,STEERING DAMPER

€ 4.50

8

5135302F00
ref: 8
NO STEERING DAMPER

NUT

€ 26.50

8

5135302F10
ref: 8
WITH STEERING DMPAER

NUT,STEM TOP

€ 24.50

9

0926730010
ref: 9

BEARING(30X55X17)

€ 46.50

10

5164333E00
ref: 10

SEAL,STEERING UPR DUST

€ 12.50

11

5164133E00
ref: 11

WASHER,STEERING STEM

€ 3.00

12

5163133E00
ref: 12

NUT,STEERING STEM

€ 12.00

13

5627802F00
ref: 13

BALANCER,BRACKET UPR

€ 18.50

14

0214206303
ref: 14

SCREW

€ 2.00
