WATER PUMP

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

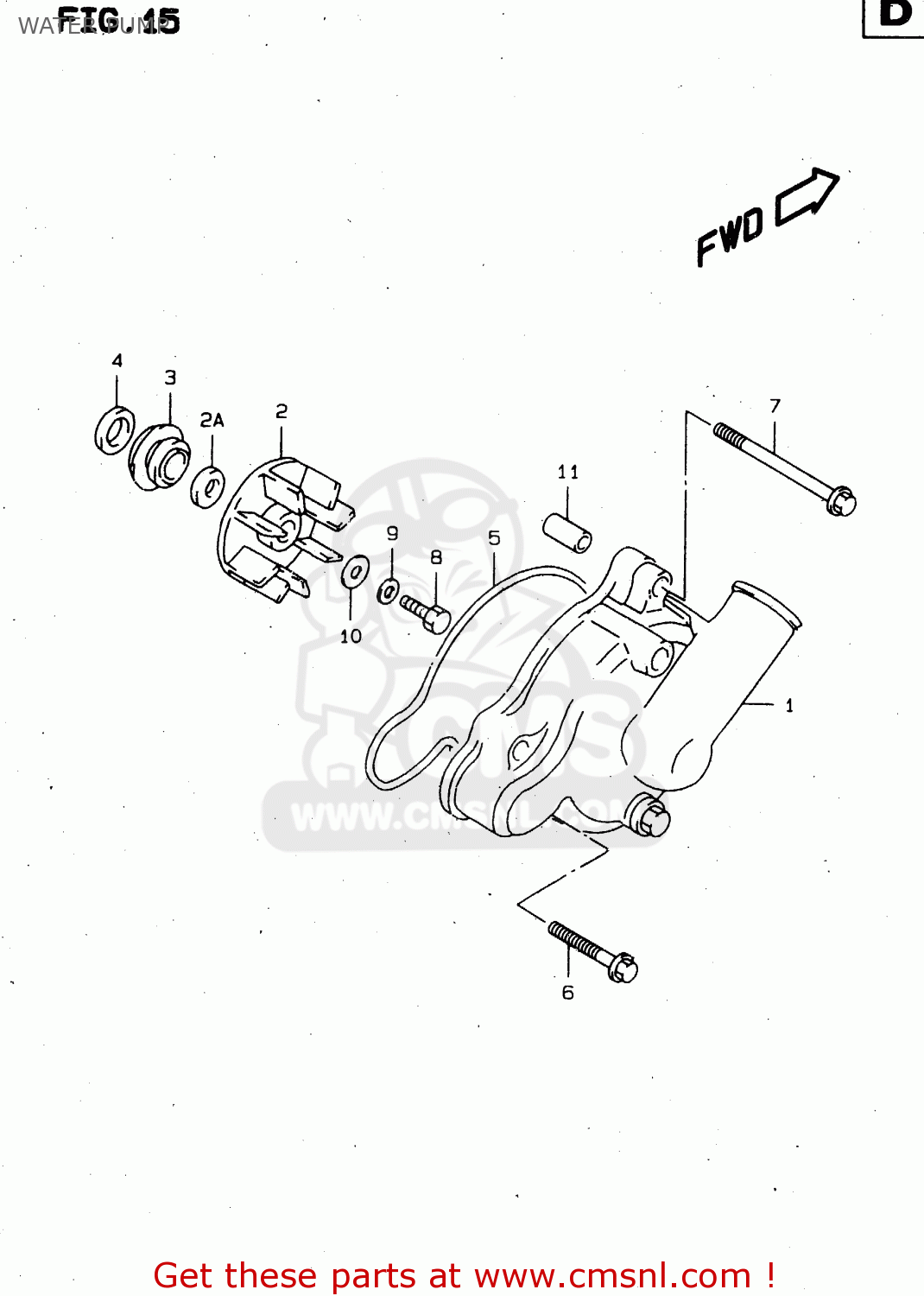

Water pump diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

WATER PUMP TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

WATER PUMP TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

1741002F00
ref: 1
MODEL V, ->17410-02F

CASE COMP,WATER PUMP

€ 83.50

1

1741002F10
ref: 1
MODEL W/X

CASE,WATER PUMP

€ 89.50

2

1749102F00
ref: 2

IMPELLER,WATER PUMP

€ 22.00

2A

1753302F00
ref: 2A

WASHER,IMPELLER

€ 4.00

3

1747002F00
ref: 3
MODEL V

SEAL,MECHANICAL

€ 21.50

3

1747002F10
ref: 3
MODEL W/X

SEAL,MECHANICAL

€ 21.50

4

0928310005
ref: 4
MODEL V

SEAL,OIL(10X20X5)

€ 4.50

4

1746102F00
ref: 4
MODEL W/X

SEAL,WATER PUMP SHAFT OIL

€ 8.50

5

1743502F00
ref: 5

O RING,WATER PUMP CASE

€ 8.50

6

0154706307
ref: 6

BOLT

€ 2.50

7

0154706557
ref: 7

BOLT

€ 2.50

8

0910006099
ref: 8
MODEL V

BOLT(6X13)

€ 2.00

8

0910006162
ref: 8
MODEL W/X

BOLT(6X13)

€ 4.00

9

0916406006
ref: 9

WASHER

€ 2.50

10

0916806025
ref: 10

GASKET(6X15X2.2) (NAS)

€ 3.00

11

0421109149
ref: 11

PIN

€ 2.00
