OIL COOLER

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

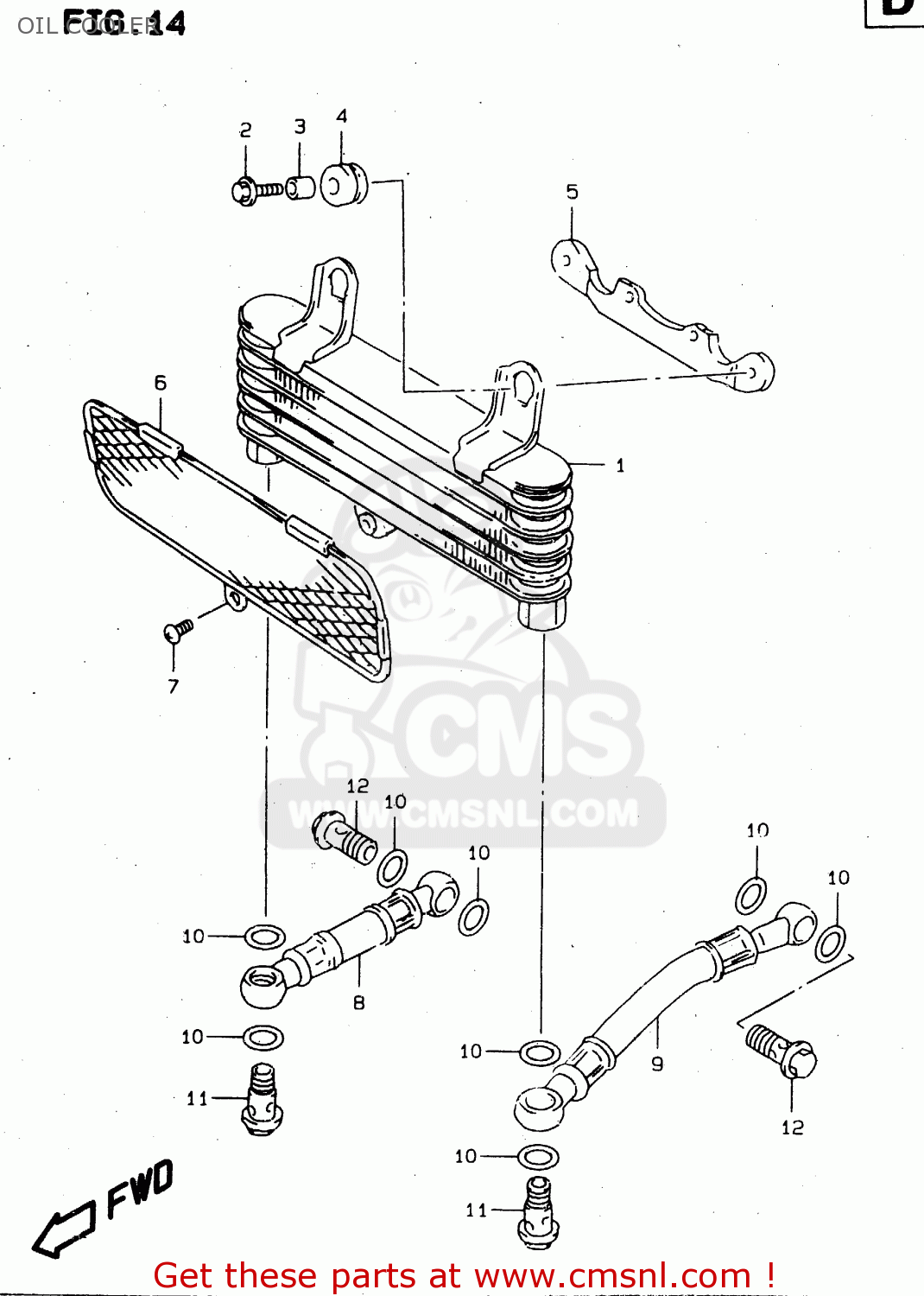

Oil cooler diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1660002F00
ref: 1

COOLER ASSEMBLY,OIL

€ 938.00

0911606143
ref: 2

BOLT 6X20

€ 2.00

0918006310
ref: 3

SPACER(6.5X10X10)

€ 2.00

0932010015
ref: 4

CUSHION

€ 2.50

1662002F00
ref: 5

BRACKET,OIL COOLER

€ 10.50

1665002F00
ref: 6

GUARD,OIL COOLER

€ 38.50

0214205103
ref: 7

SCREW

€ 2.50

1646002F00
ref: 8

HOSE,OIL COOLER,R

€ 106.00

1647002F00
ref: 9

HOSE COMP,OIL COOLER,LEFT

€ 100.00

0916814011
ref: 10

GASKET(14X20X1.5) (NAS)

€ 2.00

0936012006
ref: 11

BOLT UNION

€ 13.50

0936014012
ref: 12

BOLT UNION

€ 10.00
