FRAME COVER (MODEL W)

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

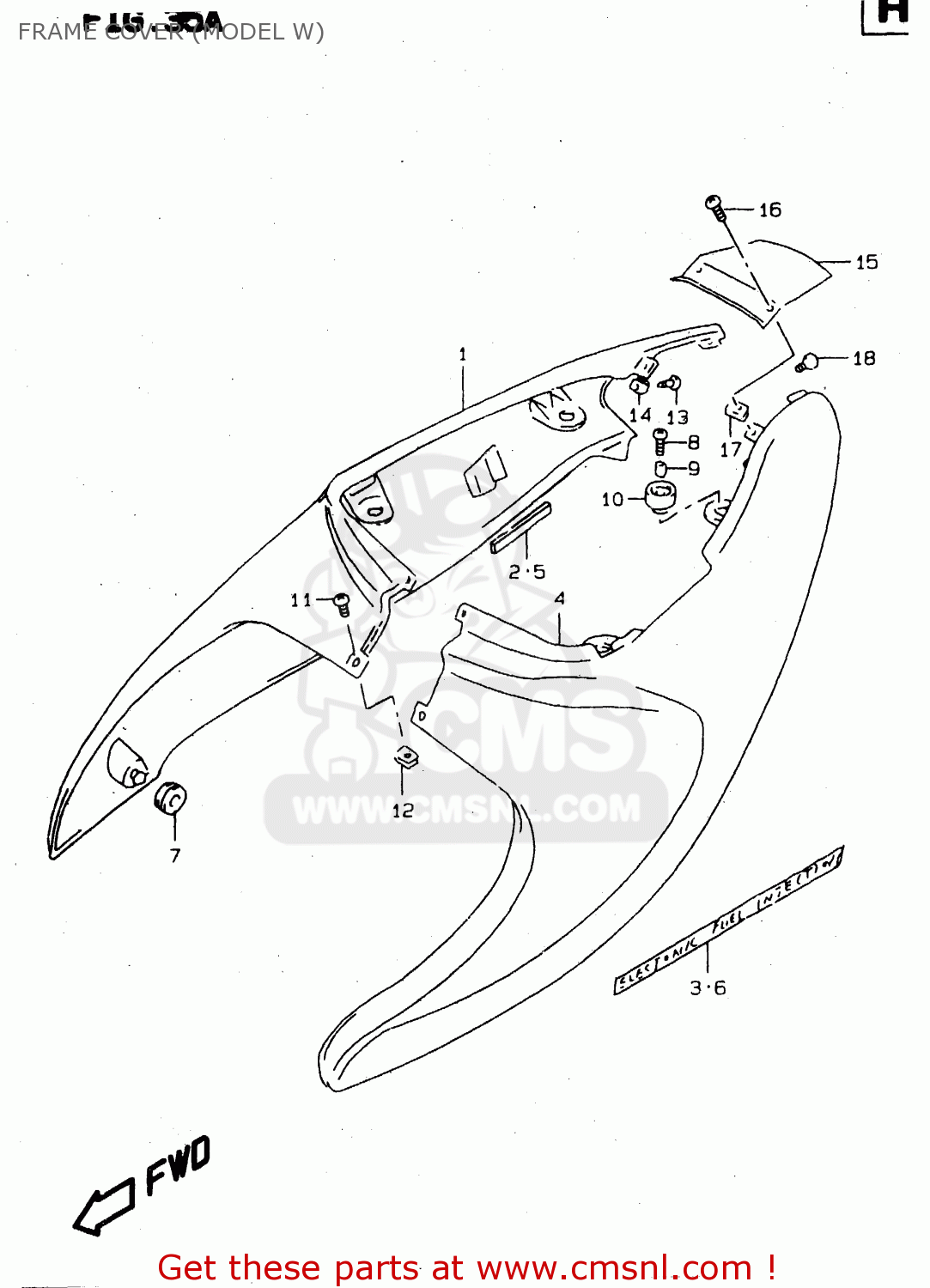

Frame cover (model w) diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRAME COVER (MODEL W) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
FRAME COVER (MODEL W) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
FRAME COVER (MODEL W) TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
4711002F003AX
ref: 1
COVER,FRAME,R(RED)
€ 154.50
1
4711002F00Y2D
ref: 1
COVER COMP,FRAME,RIGHT
€ 156.50
1
4711002F002AX
ref: 1
COVER COMP,FRAME,RIGHT
€ 132.00
1
4711002F00Y3G
ref: 1
COVER COMP,FRAME,RIGHT
€ 156.50
2
4716102F00
ref: 2
CUSHION,FRAME COVER
€ 4.00
3
6813102F00K1C
ref: 3
FOR 3AX
EMBLEM,FRAME COVER
6813102F00K1C
€ 10.00
3
6813102F00K1D
ref: 3
FOR Y2D
EMBLEM,FRAME COVER
€ 10.00
3
6813102F00G7U
ref: 3
FOR 2AX
EMBLEM,FRAME COVER
€ 8.00
3
6813102F00K1E
ref: 3
FOR Y3G
EMBLEM,FRAME COVER
€ 9.00
4
4721002F003AX
ref: 4
COVER,FRAME,L(RED)
€ 142.50
4
4721002F00Y2D
ref: 4
COVER,FRAME,LEFT (SILVER)
€ 156.50
4
4721002F002AX
ref: 4
COVER,FRAME,L(BLACK)
€ 127.50
4
4721002F00Y3G
ref: 4
COVER,FRAME,L(YELLOW)
€ 122.50
5
4716102F00
ref: 5
CUSHION,FRAME COVER
€ 4.00
6
6813102F00K1C
ref: 6
FOR 3AX
EMBLEM,FRAME COVER
6813102F00K1C
€ 10.00
6
6813102F00K1D
ref: 6
FOR Y2D
EMBLEM,FRAME COVER
€ 10.00
6
6813102F00G7U
ref: 6
FOR 2AX
EMBLEM,FRAME COVER
€ 8.00
6
6813102F00K1E
ref: 6
FOR Y3G
EMBLEM,FRAME COVER
€ 9.00
7
0932008018
ref: 7
CUSHION
0932008018
€ 4.00
8
0913606105
ref: 8
SCREW(6X20)
0913606105
€ 2.00
9
0918006286
ref: 9
SPACER(6.5X10X9.4)
0918006286
€ 2.50
10
0932010045
ref: 10
CUSHION
0932010045
€ 3.50
11
0324115123
ref: 11
SCREW
0324115123
€ 2.50
12
0914805038
ref: 12
NUT
0914805038
€ 2.50
13
0913605034
ref: 13
SCREW(5X16)
0913605034
€ 2.00
14
0914805038
ref: 14
NUT
0914805038
€ 2.50
15
4731102F0028V
ref: 15
COVER,FRAME CTR
€ 34.00
15
4731102F00Y2D
ref: 15
COVER,FRAME CTR
4731102F00Y2D
€ 28.50
15
4731102F0033J
ref: 15
COVER,FRAME CTR
€ 28.50
15
4731102F00Y3G
ref: 15
COVER,FRAME CTR
4731102F00Y3G
€ 26.00
16
0354115123
ref: 16
SCREW
€ 2.50
17
0914805038
ref: 17
NUT
0914805038
€ 2.50
18
4712902F00
ref: 18
CUSHION
4712902F00
€ 7.50
