FRONT FENDER

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

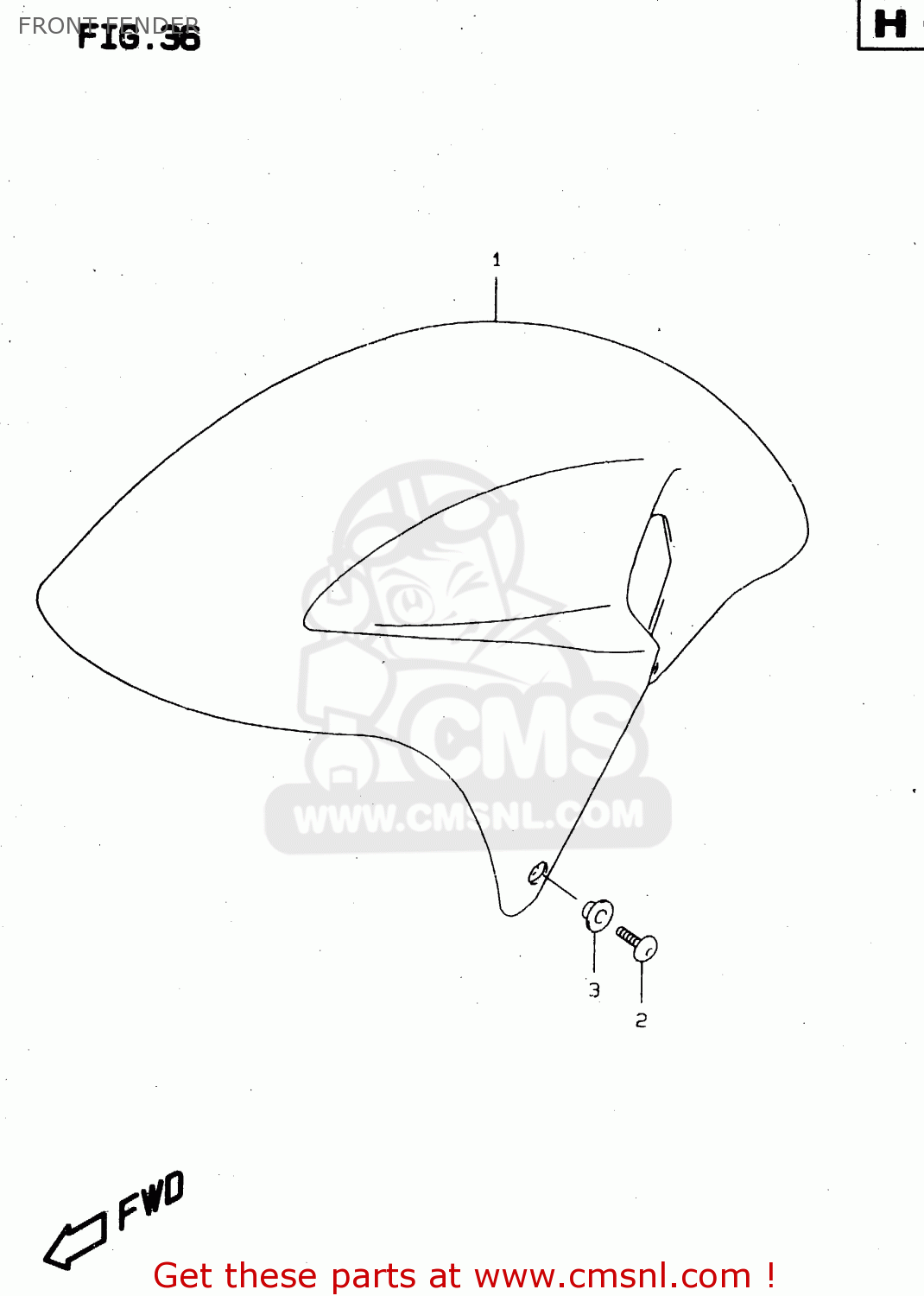

Front fender diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT FENDER TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT FENDER TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

5311002F0028V
ref: 1
MODEL V/W

FENDER COMP,FRONT

€ 166.50

1

5311002F001UH
ref: 1
MODEL V

FENDER COMP,FRONT

€ 192.00

1

5311002F0033J
ref: 1

FENDER COMP,FRONT

€ 168.50

1

5311002F1028V
ref: 1
MODEL V/W E22

FENDER,FR

€ 166.50

1

5311002F101UH
ref: 1
MODEL V E22

FENDER COMP,FRONT

€ 192.00

1

5311002F1033J
ref: 1
E22

FENDER,FR

€ 168.50

1

5311002F00Y2D
ref: 1
MODEL W/X

FENDER COMP,FRONT

€ 188.00

1

5311002F00Y3G
ref: 1
MODEL W

FENDER COMP,FRONT

€ 262.00

1

5311002F10Y2D
ref: 1
MODEL W/X E22

FENDER,FR

€ 188.00

1

5311002F10Y3G
ref: 1
MODEL W E22

FENDER, FRONT (YELLOW)

€ 262.00

1

5311002F00Y0W
ref: 1
MODEL X

FENDER COMP,FRONT

€ 190.00

1

5311002F00Y7H
ref: 1
MODEL X

FENDER COMP,FRONT

€ 168.50

1

5311002F10Y0W
ref: 1
MODEL X E22

FENDER COMP,FRONT

€ 190.00

1

5311002F10Y7H
ref: 1
MODEL X E22

FENDER COMP,FR

€ 168.50

2

0913906030
ref: 2

SCREW(6X16)

€ 3.50

3

0916106021
ref: 3

WASHER(6.3X16X1.5)

€ 2.50
